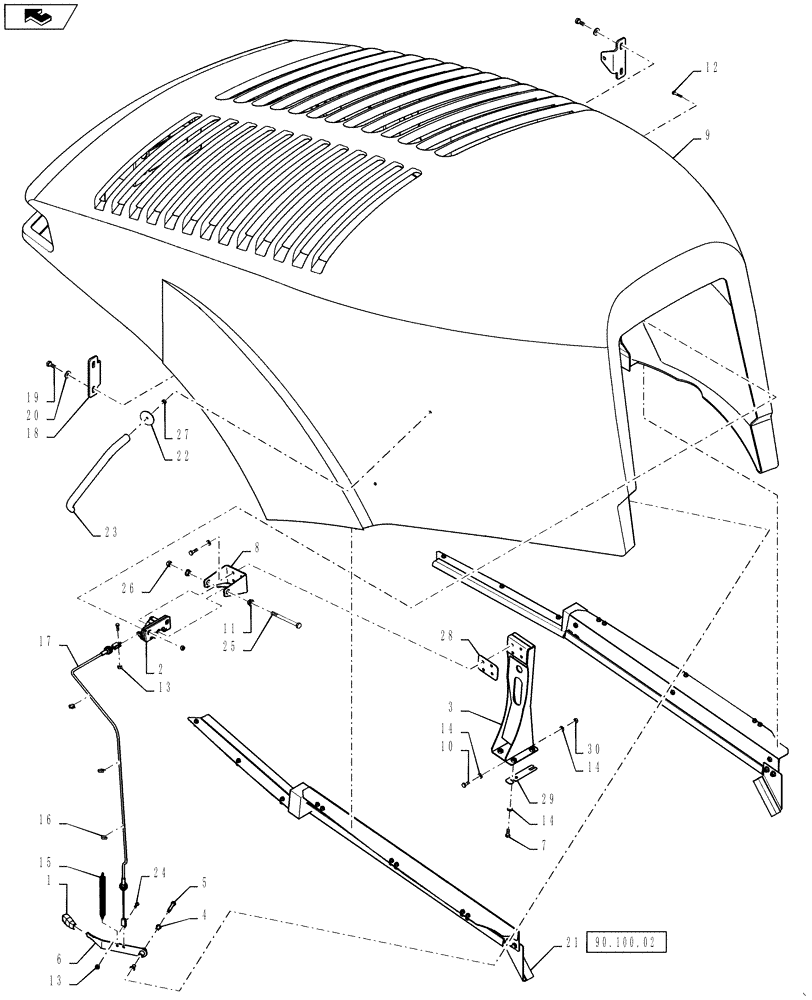

Запчасти Case IH TITAN 3530 (90.100.01) - HOOD, ENGINE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

134071A1

KNOB

Lever

1шт.

2

87550202

LATCH

Hood

1шт.

3

84157880

MOUNT

Hood Latch

1шт.

4

BN319151

BUSHING

5/16 Shoulder, Nylon

2шт.

5

BN325062

BOLT

M6-1, SHOULDER BOLT, 8 X 40

1шт.

6

BN325453

LEVER

Hood Latch

1шт.

7

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

8

84532241

MOUNT

Hood Latch

1шт.

9

BN325465

ENGINE HOOD

Glassed

1шт.

10

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

87550203

GUIDE BUSHING

Hood Latch Pin

2шт.

12

86980363

BOLT,Hex, M6 - 1 x 35mm, Cl 8.8, DOR

M6-1 X 35, 8.8, DOR

4шт.

13

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

6шт.

14

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

12шт.

15

L106237

SPRING

Return

1шт.

16

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

3шт.

17

BN325620

CABLE

Pull

1шт.

18

342450A1

PLATE

Cylinder Mount

2шт.

19

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

20

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

21

NS

NOT SERVICED

Baffle Group, Hood/Air Screen

1шт.

22

BN29930

WASHER

12GA.409 2 D X.34

2шт.

23

BN318538

HANDLE

Grab

1шт.

24

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

25

86980412

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

1шт.

26

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

27

87343664

NUT

NUT, 5/16-18 GR 5 DOR

2шт.

28

84157876

SPACER

Upper Hood Latch

1шт.

29

84157878

SPACER

Lower Hood Latch

2шт.

30

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.
