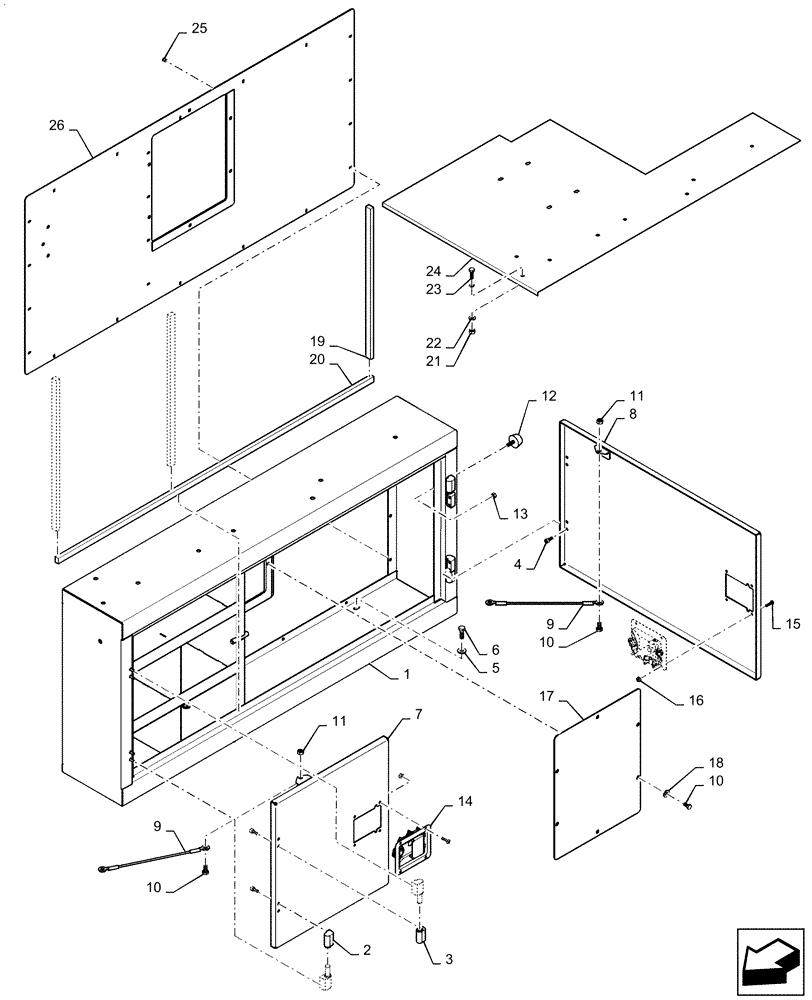

Запчасти Case IH TITAN 3530 (88.100.01) - STORAGE GROUP (88) - ACCESSORIES

1

84488555

TOOL BOX

Box Frame

1шт.

2

BN306290

HINGE

Bottom, Nylon

2шт.

3

BN306286

HINGE

Top, Nylon

2шт.

4

87343625

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

M6 x 16, CL8.8 DOR

16шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

15шт.

6

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

7

84488569

DOOR

Toolbox, Front

1шт.

8

84488558

DOOR

Toolbox, Rear

1шт.

9

F64526

CABLE

Assembly, Door

2шт.

10

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

12

343310A1

BUMPER

Vibration

1шт.

13

BN315824

LOCK NUT

5/16-24, NLN, G8

1шт.

14

BN323944

LATCH

Paddle Handle

2шт.

15

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

8шт.

16

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

8шт.

17

84488586

COVER

Access

1шт.

18

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

19

87267964

GASKET

Storage Box

3шт.

20

87267963

GASKET

Storage Box

2шт.

21

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

11шт.

22

BN50146

WASHER,3/8", Stainless

11шт.

23

BN322388

SCREW,Hex, M10 x 1.5 x 30mm, SST

M10-1.5 X 30, HH, SS

11шт.

24

87265538

PLATE

Toolbox Cover

1шт.

25

87029192

RIVET,Pop, 3/16" x 3/8", Stainless

22шт.

26

84488583

PANEL

Back

1шт.
