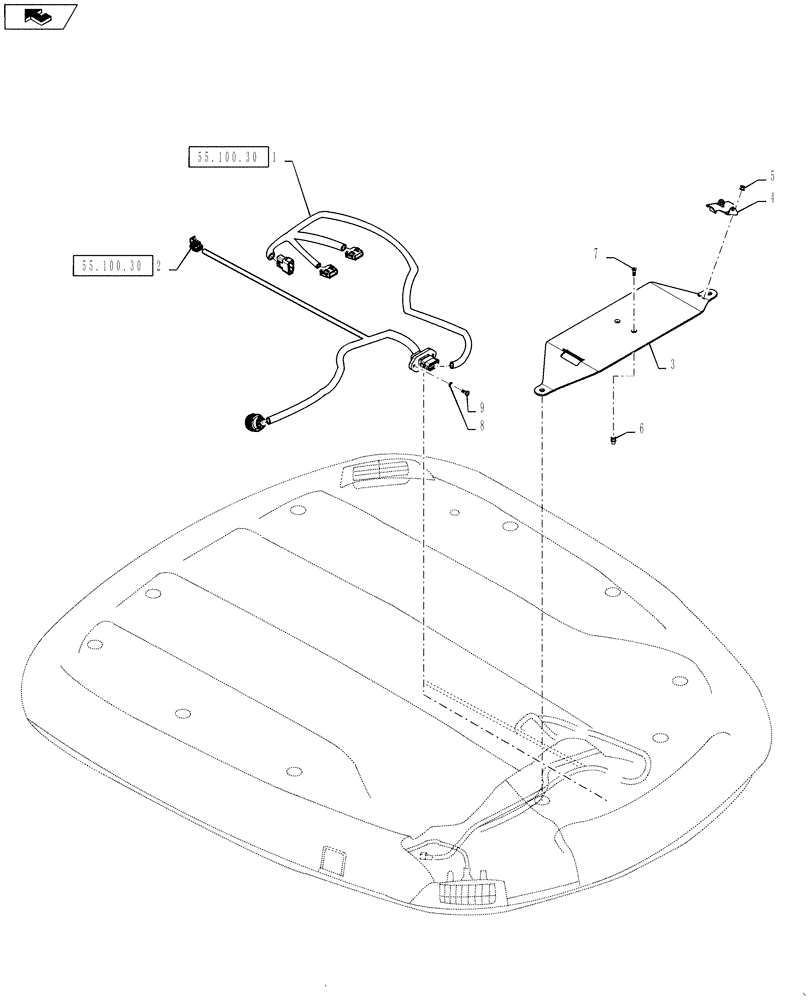

Запчасти Case IH TITAN 3530 (55.911.03[01]) - GPS RECEIVER - HARNESSES AND MOUNTING BRACKET (55) - ELECTRICAL SYSTEMS

1

84258905

HARNESS

GPS Antenna, Roof

1шт.

See Fig 55.100.30 For Service Parts

1шт.

2

47475187

WIRE HARNESS

GPS Antenna, Sub-Roof

1шт.

See Fig 55.100.30 For Service Parts

1шт.

3

84416197

BRACKET

Autoguidance Roof Mounting

1шт.

4

87308870

LATCH

Under-Center W/ Padlock Hasp

1шт.

5

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

2шт.

6

451165A1

THREADED INSERT

1шт.

7

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

1шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

9

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

2шт.
