Запчасти Case IH TITAN 3530 (55.911.01[02]) - AFS GPS RECEIVER - AFS372 WAAS/EGNOS/VBS (55) - ELECTRICAL SYSTEMS

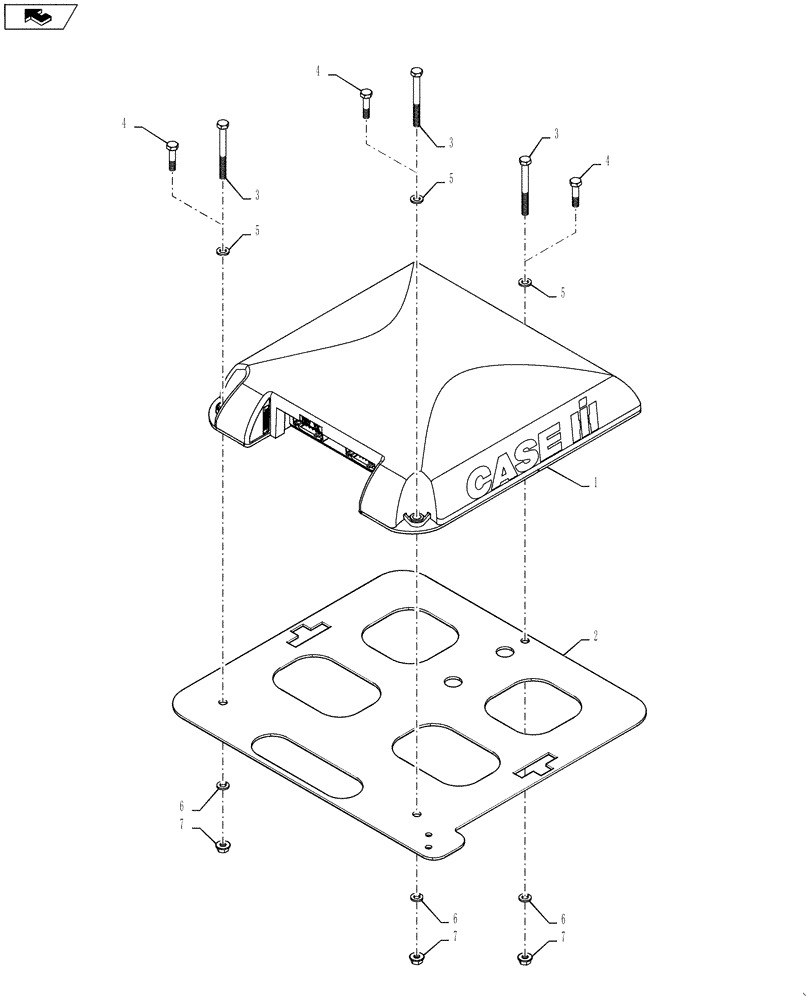

Схема запчастей Case IH TITAN 3530 - (55.911.01[02]) - AFS GPS RECEIVER - AFS372 WAAS/EGNOS/VBS (55) - ELECTRICAL SYSTEMS
3
4
home
6
7
3
6
7
2
5
1
5
5
4
3
6
4
7

Артикул

Название

Примечание

Количество

1

84574270

GPS RECEIVER

AFS372 WAAS/EGNOS/VBS, NAR Only

1шт.

1

84574271R

REMAN ELECT CONTROL

TITAN 3030, TITAN 3530, Both FLOATER - TIER 4, AFS372 WAAS/EGNOS/VBS, NAR Only (2/12-), Reman for New PN 84574270

1шт.

1

84574271C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

84574271

GPS RECEIVER

AFS372 WAAS/EGNOS/VBS, ROW Only

1шт.

1

84574271R

REMAN ELECT CONTROL

TITAN 3030, TITAN 3530, Both FLOATER - TIER 4, AFS372 WAAS/EGNOS/VBS, NAR Only (2/12-), Reman for New PN 84574270

1шт.

1

84574271C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

87496985

MOUNTING PLATE

GPS

1шт.

3

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

3шт.

4

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

3шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

6

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

7

86511444

FLANGE NUT,Hex, M6 x 1

3шт.

Выбрано товаров: 12
