(55.560.02) - AIR VALVE, DOUBLE SOLENOID

Запчасти Case IH TITAN 3530 (55.560.02) - AIR VALVE, DOUBLE SOLENOID (55) - ELECTRICAL SYSTEMS

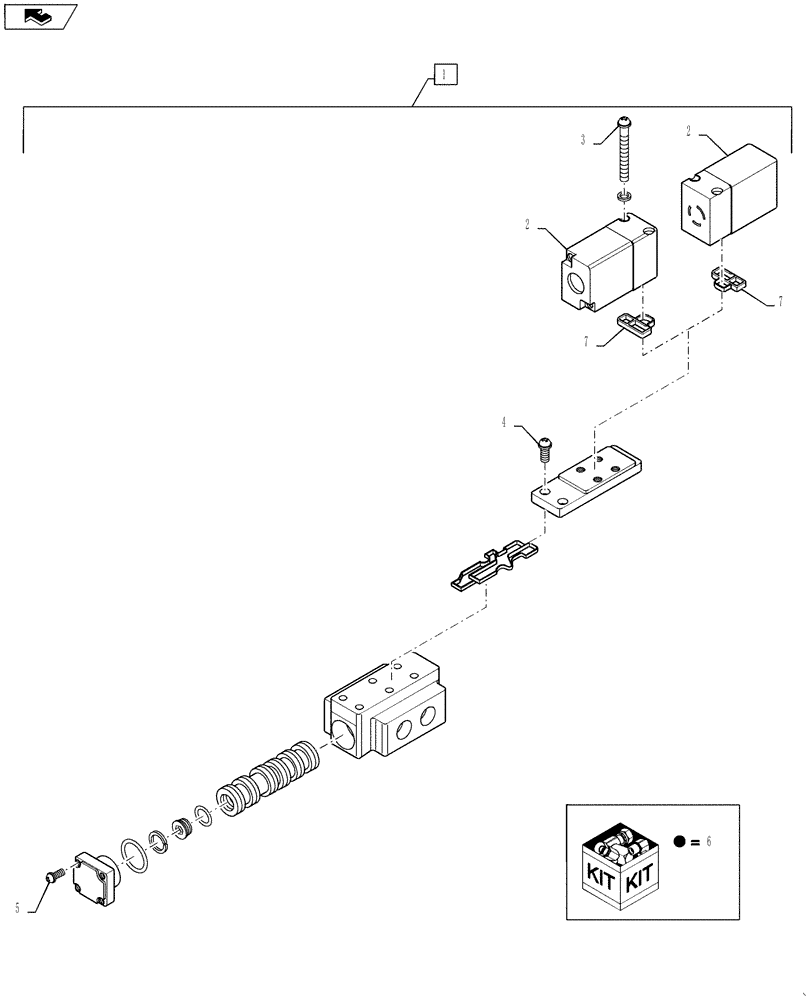

Схема запчастей Case IH TITAN 3530 - (55.560.02) - AIR VALVE, DOUBLE SOLENOID (55) - ELECTRICAL SYSTEMS
5
4
2
6
7
home
7
2
6
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN304833

SOLENOID VALVE

Air, Double Solenoid, Complete, Includes Ref 2 - 7

1шт.

2

BN307068

COIL

Pilot Assembly

2шт.

3

87267590

SCREW

Pilot Housing

4шт.

4

87267591

SCREW

Adapter Plate

4шт.

5

87267592

SCREW

Retainer Mounting

4шт.

6

BN307069

SEAL KIT

Solenoid

1шт.

7

84269276

SEAL

Pressure, Pilot Valve

2шт.
