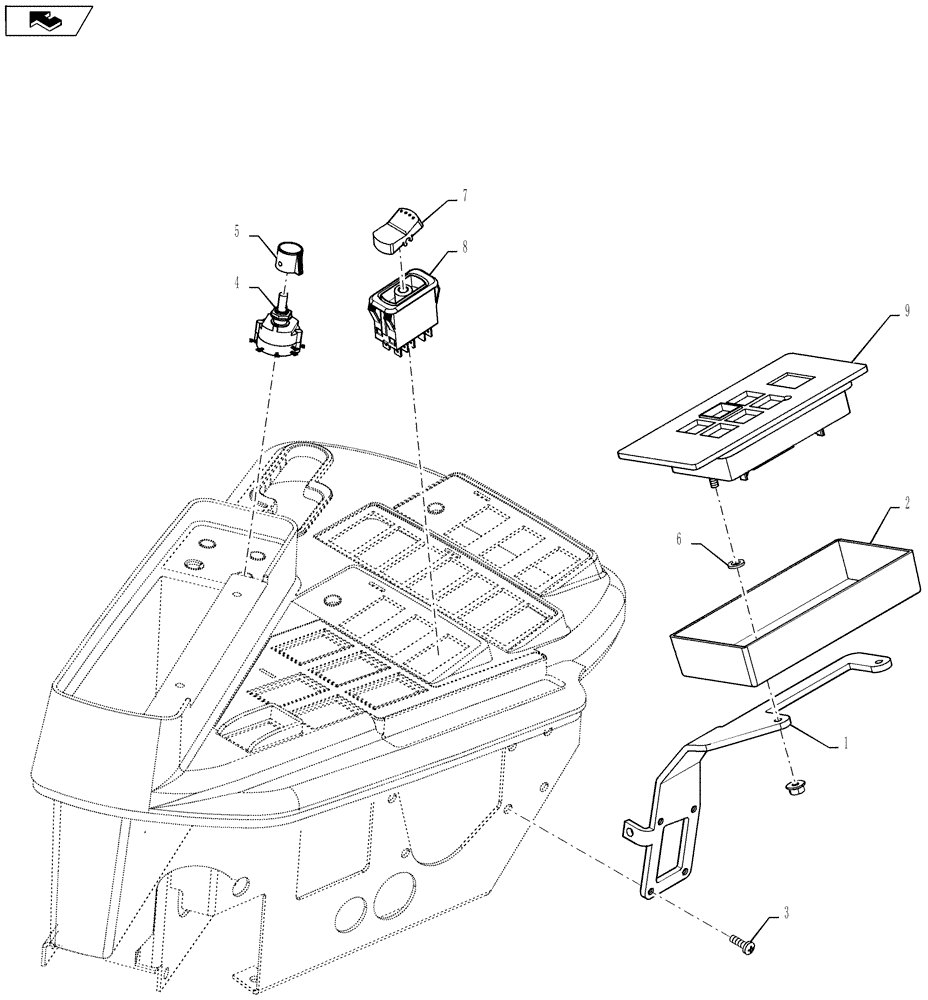

Запчасти Case IH TITAN 3530 (55.521.05) - TRANSMISSION CONTROLS, RH CONSOLE (55) - ELECTRICAL SYSTEMS

1

87272779

BRACKET, SUPPORTING

Transmission Control

1шт.

2

87272778

HOUSING

Transmission Control

1шт.

3

87343600

SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd

4шт.

4

86986401

SWITCH ASSY

Rotary, 4-Position, Transmission Range Select

1шт.

5

342794A1

KNOB

Transmission Range Select

1шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

7

87703577

SWITCH

Lower Rocker Body

1шт.

8

87700734

SWITCH

Rocker, Auxiliary Shift Hold

1шт.

9

84139504

SHIFTING UNIT

Transmission, Push Button

1шт.
