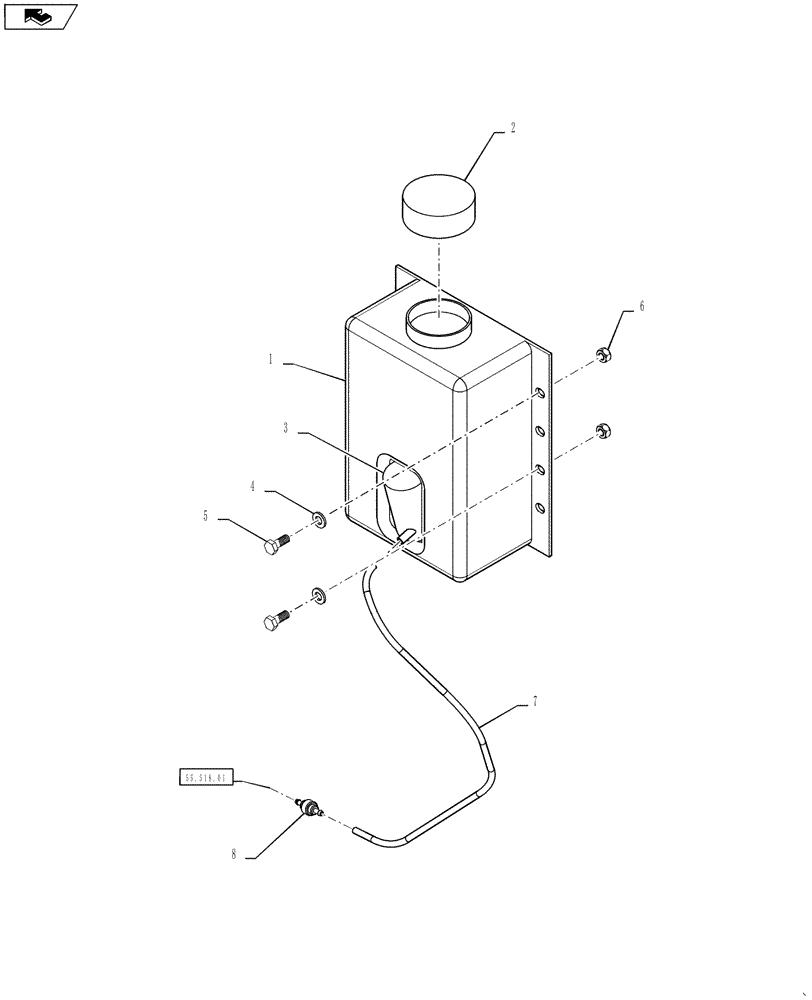

Запчасти Case IH TITAN 3530 (55.518.02) - WINDSHIELD WASHER TANK (55) - ELECTRICAL SYSTEMS

1

87014923

RESERVOIR, WINDSHIEL

4 QT, 12V, Includes Ref 2 and 3

1шт.

2

87439461

CAP

Washer Bottle, Vented, W/ Tether

1шт.

3

BN98901

PUMP

Windshield Washer Reservoir

1шт.

4

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

5

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

6

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

7

31-2866

HOSE,4.77 mm ID x 609.60 mm

1шт.

8

K307050

VALVE

Check

1шт.
