(55.424.02) - NEUTRAL SAFETY SWITCH ADAPTER

Запчасти Case IH TITAN 3530 (55.424.02) - NEUTRAL SAFETY SWITCH ADAPTER (55) - ELECTRICAL SYSTEMS

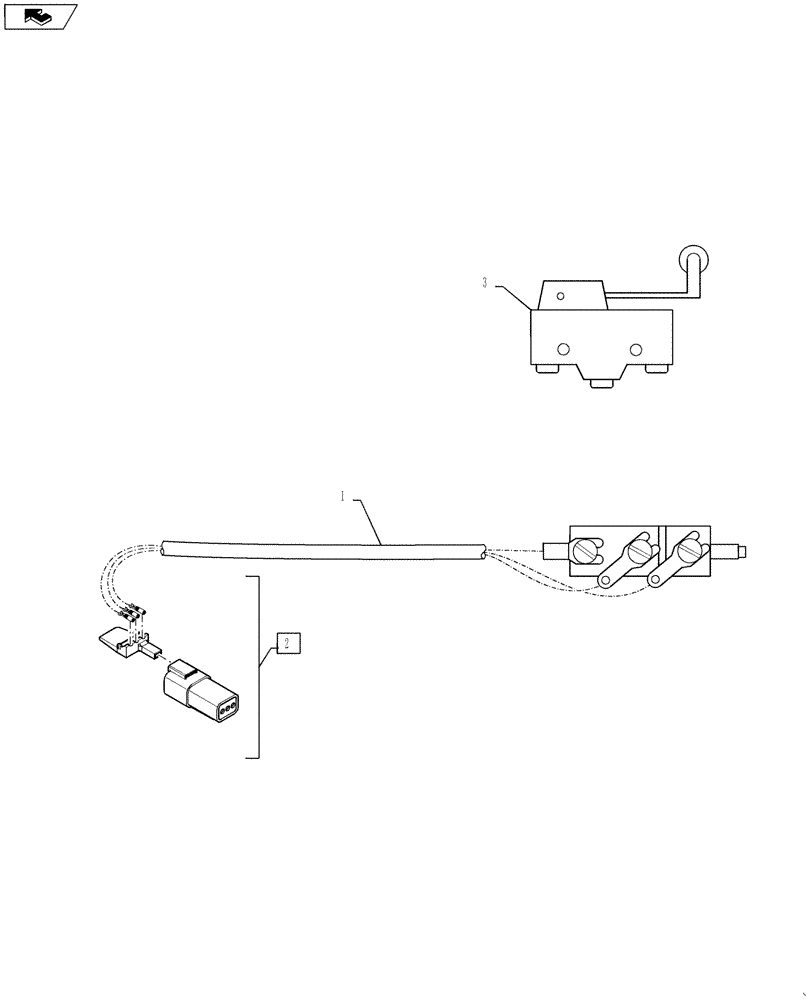

Схема запчастей Case IH TITAN 3530 - (55.424.02) - NEUTRAL SAFETY SWITCH ADAPTER (55) - ELECTRICAL SYSTEMS
home
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN323496

TOGGLE SWITCH

Neutral Safety Switch

1шт.

2

276426A1

ELEC CONNECTOR,Male, 3 Pin

Neutral Safety Switch

1шт.

2

84817102

LOCKING TAB,Wedge Lock, 3-Pin

Neutral Safety Switch

1шт.

2

223950A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

Terminal, Neutral Safety Switch

3шт.

3

141655A1

SWITCH

Limit

1шт.
