(55.414.01) - MOTOR SENSORS (504135967 - 504270473)

Запчасти Case IH TITAN 3530 (55.414.01) - MOTOR SENSORS (504135967 - 504270473) (55) - ELECTRICAL SYSTEMS

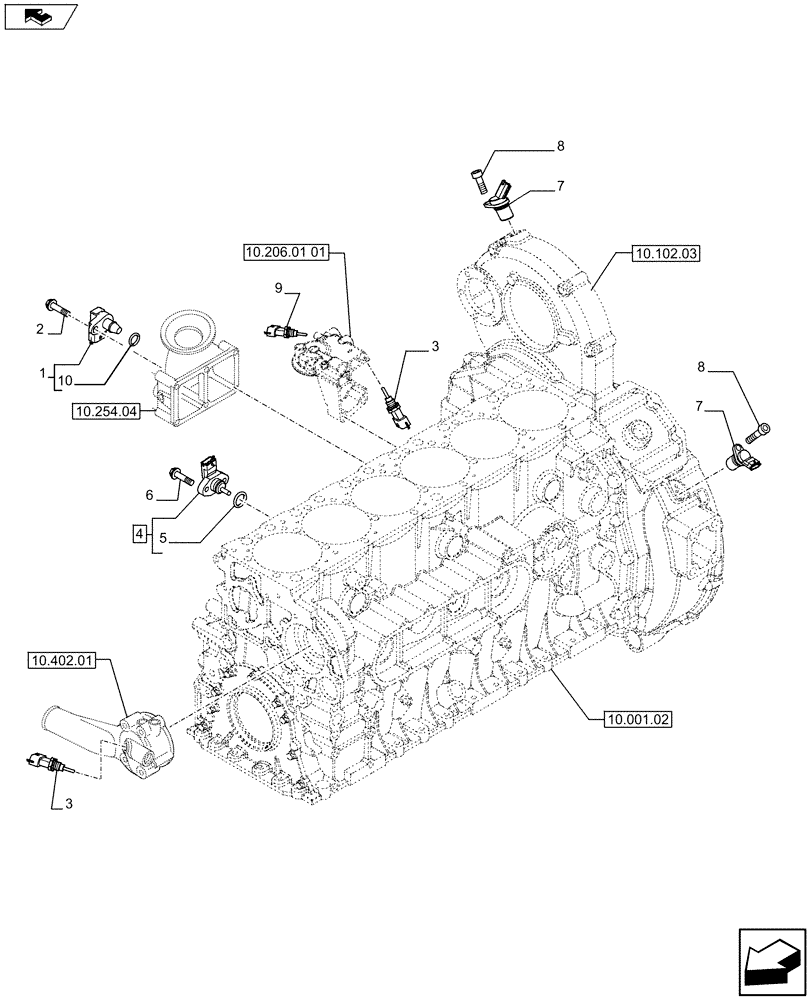

Схема запчастей Case IH TITAN 3530 - (55.414.01) - MOTOR SENSORS (504135967 - 504270473) (55) - ELECTRICAL SYSTEMS
3
1
9
8
8
10
3
7
5
10.206.01 01
10.102.03
10.402.01
10.254.04
10.001.02
4
7
6
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504073323

SENSOR

Air Temperature / Pressure, 4 wire

1шт.

2

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18

1шт.

3

82017881

SENSOR

Coolant Temperature

2шт.

4

4890193

SENSOR

Oil Pressure And Temperature, Includes Ref. 5

1шт.

5

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

6

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

7

504096645

TRANSMITTER

Camshaft & Crankshaft, 2 wire

2шт.

8

16689024

SCREW,M16 x 12mm

M6 x 12

2шт.

9

500346074

SENDER UNIT

Pressure

1шт.

10

42546555

O-RING

1шт.
