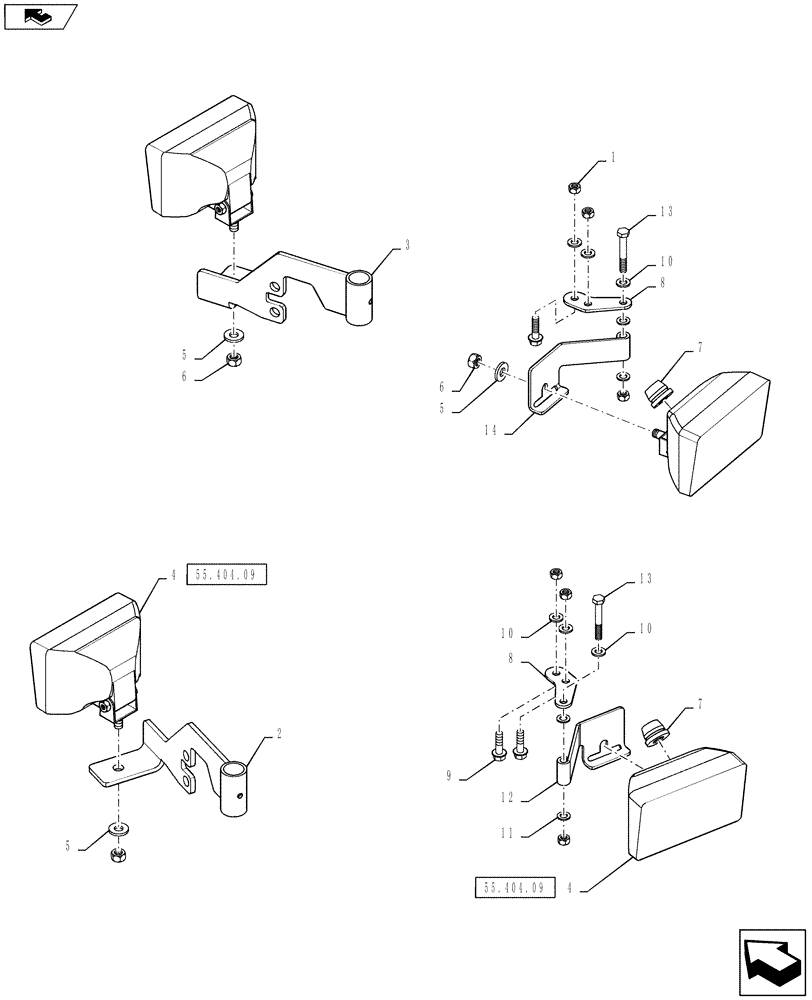

Запчасти Case IH TITAN 3530 (55.404.08) - STANDARD ROOF LIGHTING (55) - ELECTRICAL SYSTEMS

1

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

2

84396156

MOUNT

LH Front Work Light

1шт.

3

84396157

MOUNT

RH Front Work Light

1шт.

4

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

Flood, 80 x 30W, Halogen

4шт.

See Fig 55.404.09 For Service Parts

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

7

182049A1

GROMMET

Roof

2шт.

8

84230997

BRACKET, SUPPORTING

Work Light, Rear

2шт.

9

86981482

BOLT,Hvy Hex Flg, M8 x 30mm, Cl 8.8, Full Thd

M8 1.25 X 30, CL8.8, DOR

4шт.

10

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

6шт.

11

355532A1

WASHER

Nylon

4шт.

12

84231001

BRACKET, SUPPORTING

Rear LH Work Light

1шт.

13

87610713

BOLT,Hex, M8 x 55mm, Cl 8.8

2шт.

14

84231006

BRACKET, SUPPORTING

Rear RH Work Light

1шт.
