Запчасти Case IH TITAN 3530 (55.404.07) - AUXILIARY FLOOD LIGHTING ASSEMBLY (55) - ELECTRICAL SYSTEMS

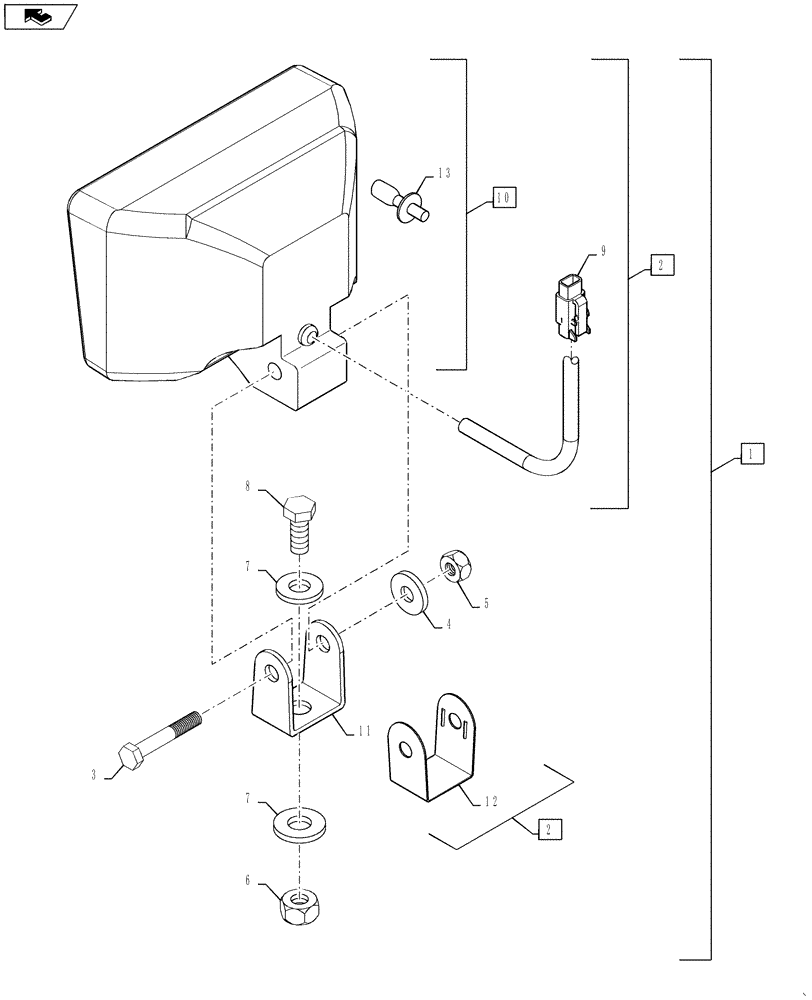

Схема запчастей Case IH TITAN 3530 - (55.404.07) - AUXILIARY FLOOD LIGHTING ASSEMBLY (55) - ELECTRICAL SYSTEMS
6
4
8
home
7
5
1
2
13
10
2
3
12
7
9
11

Артикул

Название

Примечание

Количество

1

87658615

LAMP

Assembly, Includes Ref 2 - 13

1шт.

2

87658381

WORK LAMP

Assembly, Includes Ref 9 - 13

1шт.

3

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

4

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

8

86981474

CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

1шт.

9

222135A1

CONNECTOR, ELEC

CONNECTOR

1шт.

10

87658393

WORK LAMP

Assembly, Includes Ref 13

1шт.

11

87658392

BRACKET

Lamp Mounting

1шт.

12

87658412

CLIP

Anti-Drop

1шт.

13

92242C1

BULB

H3, 12V, 35W

1шт.

Выбрано товаров: 13
