(55.404.02) - STANDARD FRONT LIGHTS WITH OPTIONAL CENTER HID LIGHT

Запчасти Case IH TITAN 3530 (55.404.02) - STANDARD FRONT LIGHTS WITH OPTIONAL CENTER HID LIGHT (55) - ELECTRICAL SYSTEMS

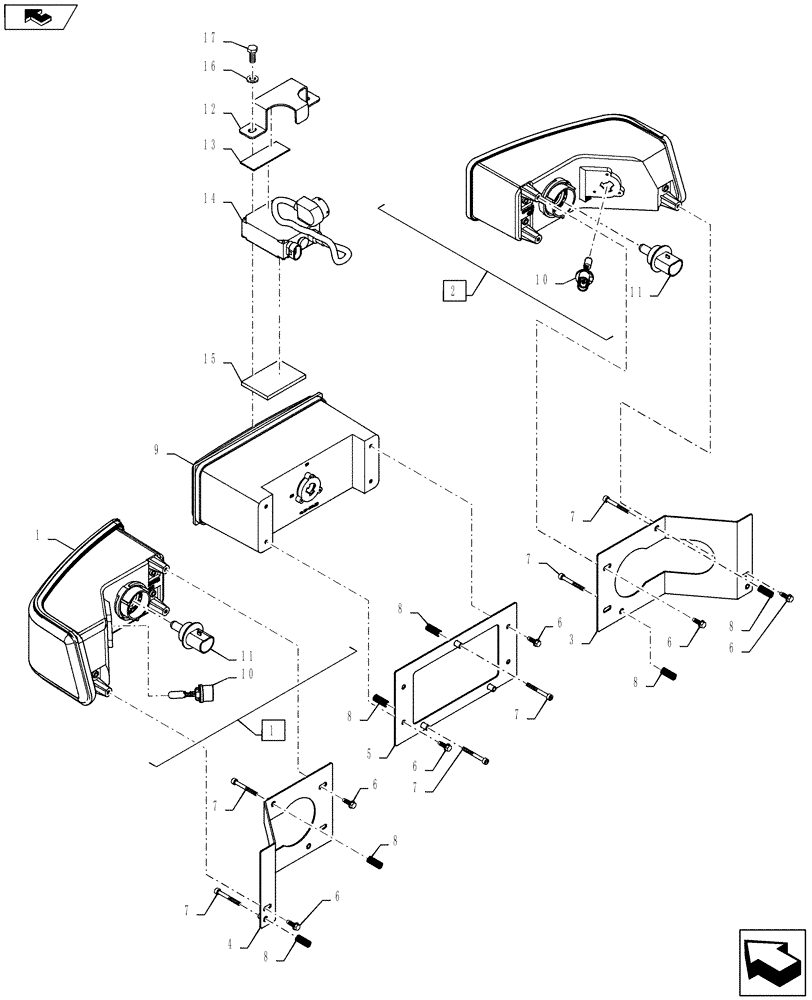

Схема запчастей Case IH TITAN 3530 - (55.404.02) - STANDARD FRONT LIGHTS WITH OPTIONAL CENTER HID LIGHT (55) - ELECTRICAL SYSTEMS
6
13
home
7
8
3
16
17
6
1
7
6
14
11
5
7
1
8
8
8
4
7
10
10
12
6
6
6
11
15
7
8
7
9
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

365842A1

HEADLAMP

LH, Hi/Low, With Worklight, Includes Ref 10 - 11

1шт.

2

365841A1

HEADLAMP

RH, Hi/Low, With Worklight, Includes Ref 10 - 11

1шт.

3

BN326090

MOUNTING PLATE

Headlight Adjuster, RH

1шт.

4

BN326091

MOUNTING PLATE

Headlight Adjuster, LH

1шт.

5

BN326093

MOUNTING PLATE

Headlight Adjuster, Center

1шт.

6

87343659

SELF-TAP SCREW,Hex Wshr, 1/4" - 20 x 3/4"

Tapping, 1/4"-20 x 3/4"

10шт.

7

87343624

HEX SOC SCREW,M5 x 45mm, Cl 8.8, Full Thd

M5 X 45, 8.8

9шт.

8

342132A1

SPRING

Compression, 9.14 x 1.5 x 25

9шт.

9

232455A2

WORK LAMP,HID, 12V, 35W, Clear

Center Headlight, HID - Includes Bulb (NSS due to cost)

1шт.

10

323093A1

BULB

885-12V, Halogen, Work Lamp

2шт.

11

388872A1

BULB

H4 Halogen, 65W/55W

2шт.

12

333645A1

CLAMP

HID Ballast Hold Down

1шт.

13

333644A1

GASKET

Foam, HID Clamp

1шт.

14

322332A1

BALLAST

Light, Center HID

1шт.

15

333643A1

GASKET

Foam, HID Ballast

1шт.

16

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

17

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.
