Запчасти Case IH TITAN 3530 (55.302.03) - BATTERY SHUTOFF, FUSES, AND CABLES (55) - ELECTRICAL SYSTEMS

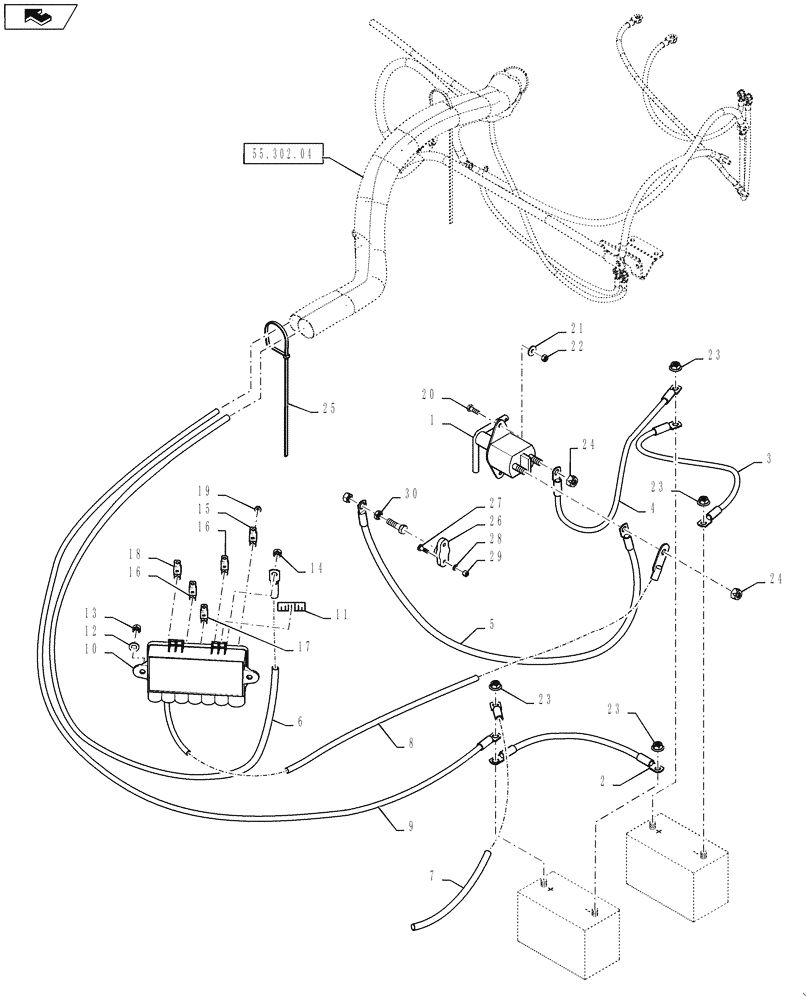

Схема запчастей Case IH TITAN 3530 - (55.302.03) - BATTERY SHUTOFF, FUSES, AND CABLES (55) - ELECTRICAL SYSTEMS
18
15
27
20
11
23
2
1
14
8
22
19
55.302.04
23
26
25
24
4
16
5
24
29
23
10
6
30
home
16
9
12
21
13
3
28
23
17
7

Артикул

Название

Примечание

Количество

1

84004375

BATTERY CUT-OUT

Battery Disconnect

1шт.

2

84426459

POS BATTERY CABLE

50, M8 Terminal, M8 Terminal, 310mm Long, Serial Range: -2

1шт.

3

84426458

NEG BATTERY CABLE

50, M8 Terminal, M8 Terminal, 435mm Long

1шт.

4

84426464

NEG BATTERY CABLE

62, M8 Terminal, M8 Terminal, 395mm Long

1шт.

5

84426465

NEG BATTERY CABLE

62, M10 Terminal, M10 Terminal, 335mm Long

1шт.

6

84567041

NEG BATTERY CABLE

62, M10 Terminal, M8 Terminal, 2620mm Long

1шт.

7

84426461

POS BATTERY CABLE

62, M10 Terminal, M10 Terminal, 760mm Long

1шт.

8

84426462

POS BATTERY CABLE

32, M6 Terminal, M13 Terminal, 4225mm Long

1шт.

9

84426470

POS BATTERY CABLE

13, M5 Terminal, M6 Terminal, 2075mm Long

1шт.

10

84596403

MODULE

Power Distribution Box

1шт.

11

84371137

DECAL

Power Distribution, Fuse

1шт.

12

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

13

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

14

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

15

84330274

FUSE,125A

125A

2шт.

16

84174070

FUSE,30A, Orange

30A

3шт.

17

84078783

FUSE,80A, Midival

80A

2шт.

18

87548130

FUSE,60A, Midival

60A

1шт.

19

86507064

FLANGE NUT,M5 x 0.8

M5, Flange

10шт.

20

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

21

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

22

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

23

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

24

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

25

BN570007

STRAP

Zip-Tie, 012 - 4.0

4шт.

26

20-1451T1

BLOCK

Junction

1шт.

27

87343600

SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd

2шт.

28

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

5.6 x 10 x 1 mm CST DOR

2шт.

29

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

2шт.

30

9628503

NUT,3/8"-16, G5

2шт.

Выбрано товаров: 30
