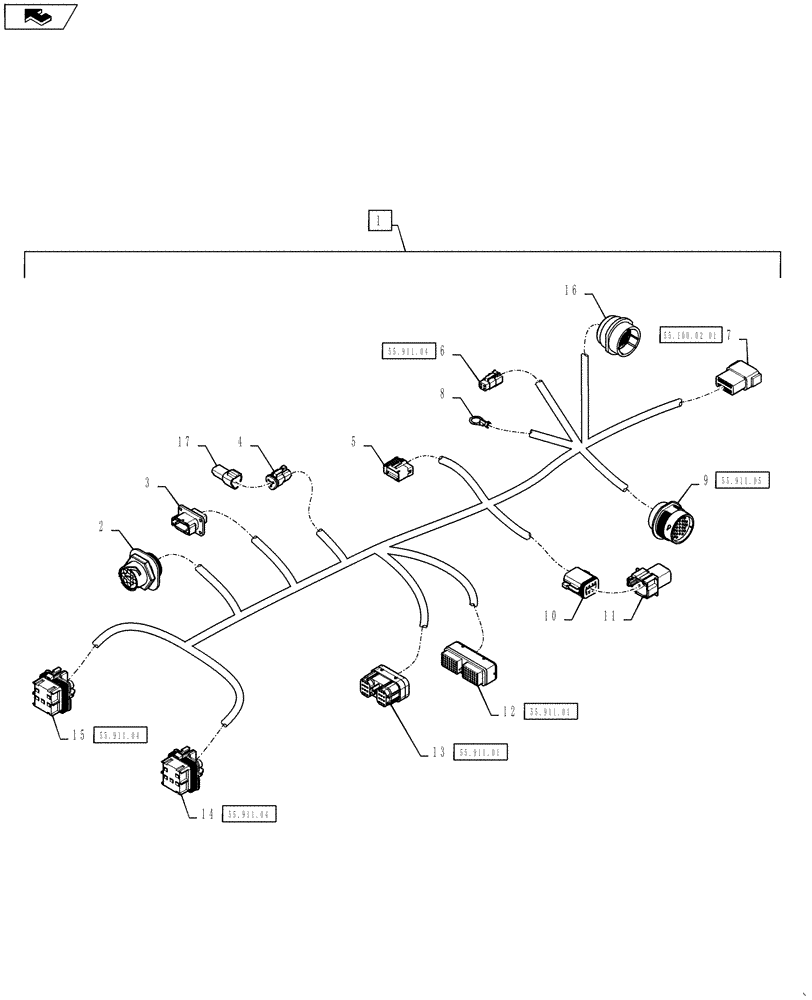

Запчасти Case IH TITAN 3530 (55.100.31) - AUTOGUIDANCE HARNESS, CAB (55) - ELECTRICAL SYSTEMS

1

84469082

WIRE HARNESS

Cab Autoguidance, Includes Ref 2 - 17

1шт.

2

87736919

CONTACT HOUSING,Female, 9 Pole

Service Port, X-706M

1шт.

2

87737472

JAM NUT,Hex, M35 x 1

Hex, Service Port, X-706M

1шт.

2

87737474

LID

Cover, Service Port, X-706M

1шт.

2

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Service Port, X-706M

2шт.

2

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Service Port, X-706M

2шт.

3

84146421

ELEC CONNECTOR

Navigation Diagnostic, X-707M

1шт.

3

87705201

WEDGE

Lock, Navigation Diagnostic, X-707M

1шт.

3

87697946

CONNECTOR, ELEC

CONNECTOR Terminal, Navigation Diagnostic, X-707M

3шт.

4

87695580

ELEC CONNECTOR,Female, 3 Pole

Terminator, X-712F

1шт.

4

381415A1

CONNECTOR, ELEC

CONNECTOR Wedge Lock, Terminator, X-712F

1шт.

4

225365C1

SOCKET

Terminal, Terminator, X-712F

2шт.

5

87693718

ELEC CONNECTOR

Splice, X-709F

1шт.

5

87693741

CAP

Splice, X-709F

1шт.

5

225365C1

SOCKET

Terminal, Splice, X-709F

2шт.

5

225366C1

ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm

Splice, X-709F

2шт.

6

277904A1

ELEC CONNECTOR,Female, 4 Pin

Remote Engage, X-708F

1шт.

6

279794A1

STOP LOCK,Locking, Orange

Wedge, Remote Engage, X-708F

1шт.

6

225039C1

TERMINAL

Remote Engage, X-708F

3шт.

7

225401C1

CONNECTOR, ELEC

CONNECTOR Autoguidance Interface, X-047M1

1шт.

7

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Lock, Autoguidance Interface, X-047M

1шт.

7

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

Autoguidance Interface, X-047M

5шт.

8

84279551

ELEC CONNECTOR,1.00 - 2.50mm

Chassis Ground, G1-AG

1шт.

9

381149A1

CONNECTOR, ELEC

CONNECTOR Autoguidance Bulkhead, X-B07M

1шт.

9

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Autoguidance Bulkhead, X-B07M

7шт.

10

87587627

CONTACT HOUSING

Splice, X-710F

1шт.

11

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

Splice, X-710M

1шт.

11

225321C1

WEDGE

CONNECTOR Wedge Lock, Splice, X-710F

1шт.

11

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice, X-710F

7шт.

12

198459A1

CONNECTOR, ELEC

CONNECTOR Nav 1, X-700F

1шт.

12

87697946

CONNECTOR, ELEC

CONNECTOR Terminal, Nav 1, X-700F

1шт.

12

225365C1

SOCKET

Terminal, Nav 1, X-700F

2шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Terminal, Nav 1, X-700F

17шт.

13

244615A1

CONNECTOR, ELEC

CONNECTOR Nav 2, X-701F

1шт.

13

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Terminal, Nav 2, X-701F

5шт.

14

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

Relay, RH Steering, X-705F

1шт.

14

321836A1

ELEC CONNECTOR

Secondary Lock, RH Steering, X-705F

1шт.

14

87680656

CONTACT

Terminal, Relay, RH Steering, X-705F

4шт.

15

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

Relay, LH Steering, X-705F

1шт.

15

321836A1

ELEC CONNECTOR

Secondary Lock, LH Steering, X-705F

1шт.

15

87680656

CONTACT

Terminal, Relay, LH Steering, X-705F

4шт.

16

84818192

ELEC CONNECTOR,Male

Raven Autoguidance Interface, X-717M

1шт.

16

225356C1

PIN

Raven Autoguidance Interface, X-717M

23шт.

17

84058092

CONTACT HOUSING,120 Ohm Resistor

120 Ohm Terminating Resistor, X-712M

1шт.
