(55.100.29) - MONITOR READY DISPLAY HARNESS

Запчасти Case IH TITAN 3530 (55.100.29) - MONITOR READY DISPLAY HARNESS (55) - ELECTRICAL SYSTEMS

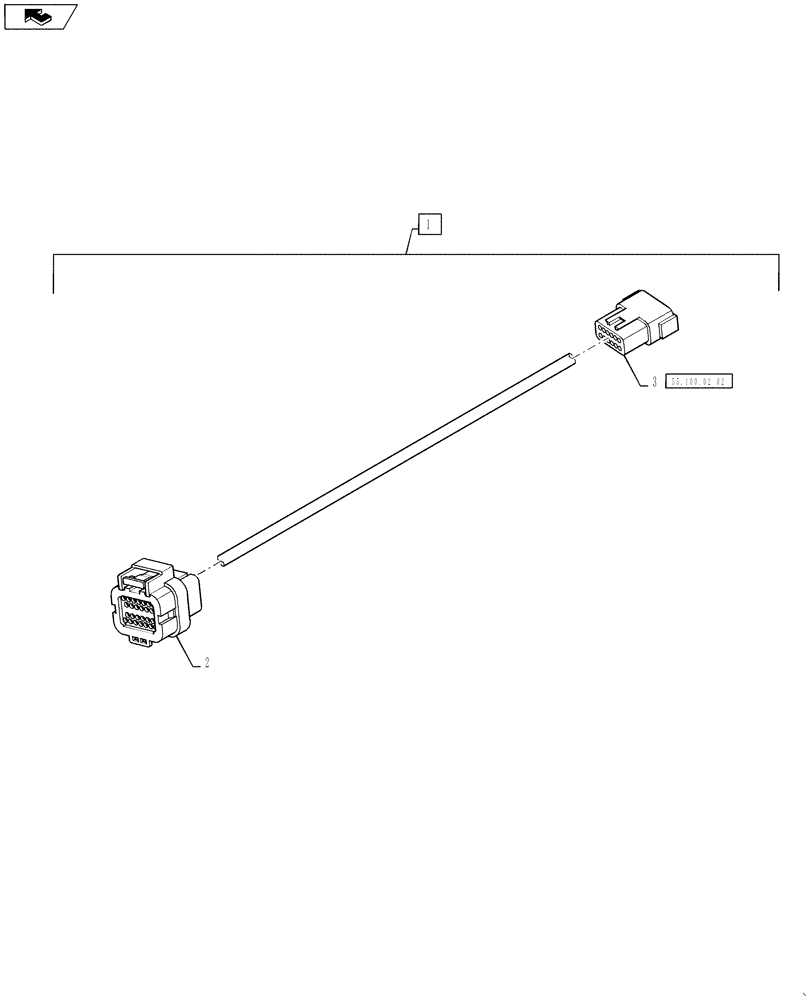

Схема запчастей Case IH TITAN 3530 - (55.100.29) - MONITOR READY DISPLAY HARNESS (55) - ELECTRICAL SYSTEMS
home
2
55.100.02 02
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87714577

HARNESS

Monitor Ready Display, Includes Ref 2 - 3

1шт.

2

87410948

CONTACT HOUSING,Female, 26 Pole

To Pro 700 Display, C600

1шт.

3

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

To Cab Harness, C602F

1шт.

3

87705201

WEDGE

To Cab Harness, C602F

1шт.

3

223951A1

PIN

To Cab Harness, C602F

9шт.

3

84807680

PLUG

To Cab Harness, C602F

3шт.
