(55.100.25) - SINGLE BEACON HARNESS

Запчасти Case IH TITAN 3530 (55.100.25) - SINGLE BEACON HARNESS (55) - ELECTRICAL SYSTEMS

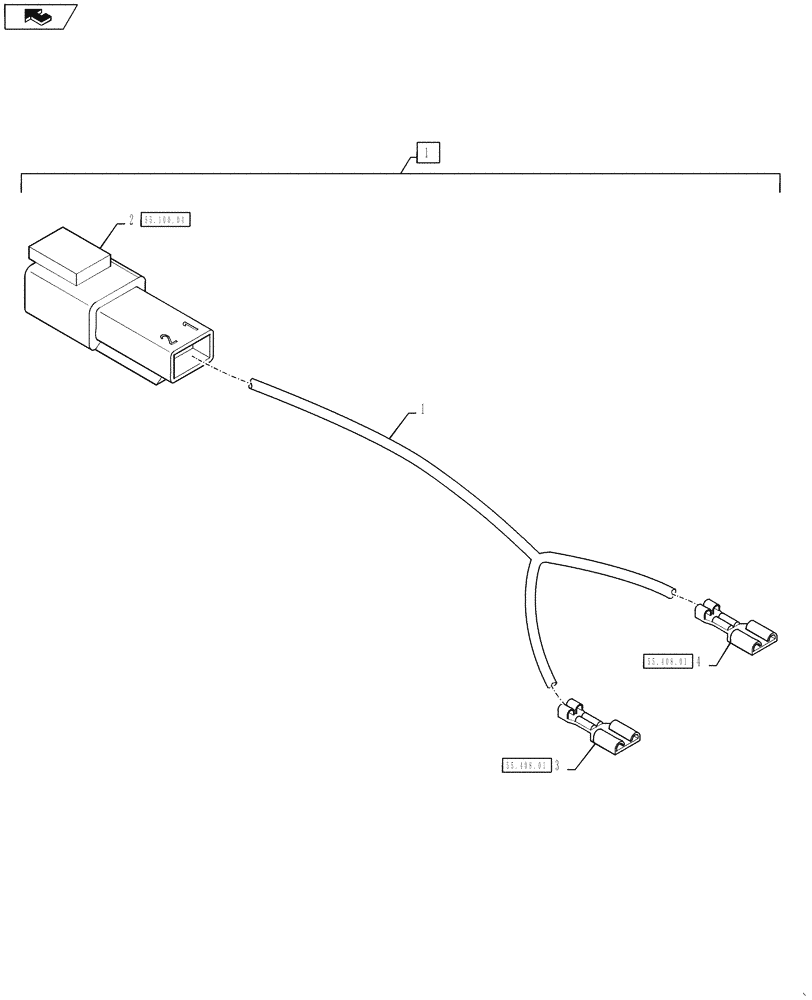

Схема запчастей Case IH TITAN 3530 - (55.100.25) - SINGLE BEACON HARNESS (55) - ELECTRICAL SYSTEMS
2
1
1
home
55.100.04
55.408.01
55.408.01
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84273302

WIRE HARNESS

Single Beacon Light Harness

1шт.

2

225315C1

ELEC CONNECTOR,Male, 2 Pin

To Cab Roof Harness, C920F

1шт.

2

225052C1

ELEC. TERMINAL PIN,Male, 0.50 - 1.20 mm2

Terminal, To Cab Roof Harness, C920F

2шт.

3

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

Beacon Light B+, C931

1шт.

4

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

Beacon Light Ground, C932

1шт.
