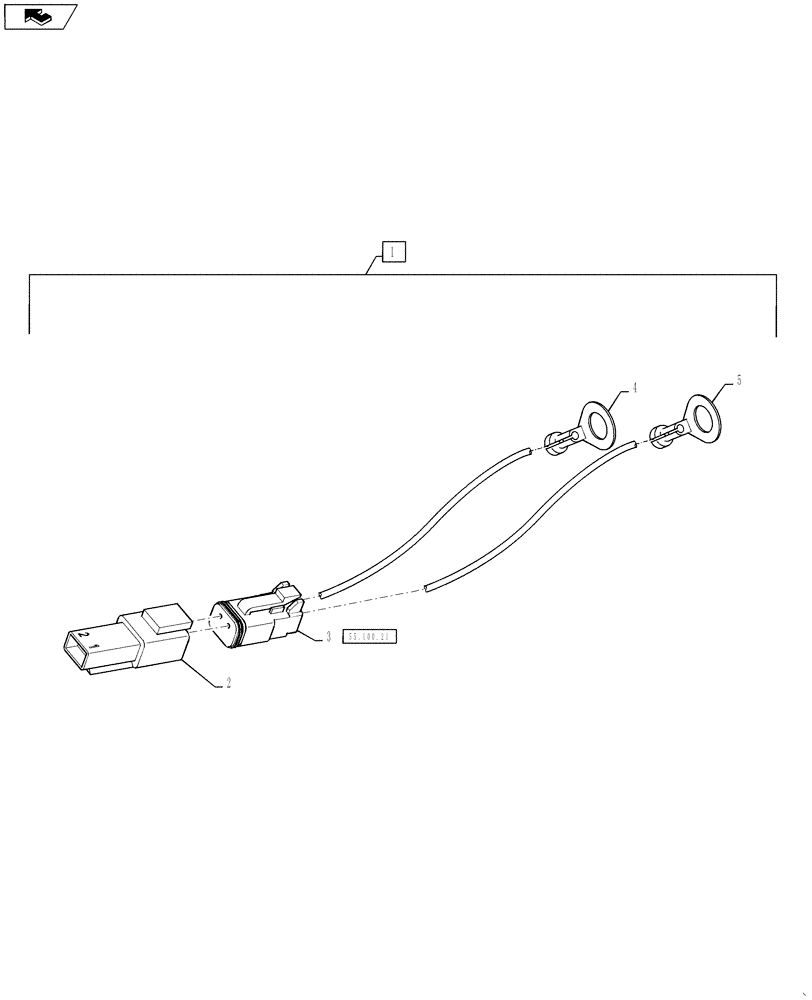

Запчасти Case IH TITAN 3530 (55.100.22) - PUMP ON ADAPTER HARNESS, 810 FLEX AIR AND BARE CHASSIS (55) - ELECTRICAL SYSTEMS

1

87542700

WIRE HARNESS

Pump On, Flex-Air System, Includes Ref 2 - 5

1шт.

2

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cap For P521, J521

1шт.

2

86500166

ELEC CONNECTOR

Wedge, Cap For P521, J521

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Cap For P521, J521

2шт.

3

225316C1

ELEC CONNECTOR,Female, 2 Pin

P521

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

P521

2шт.

4

84477044

TERMINAL

Terminal, M4 Ring, Fan On -, J1

1шт.

5

84477044

TERMINAL

Terminal, M4 Ring, Fan On +, J2

1шт.
