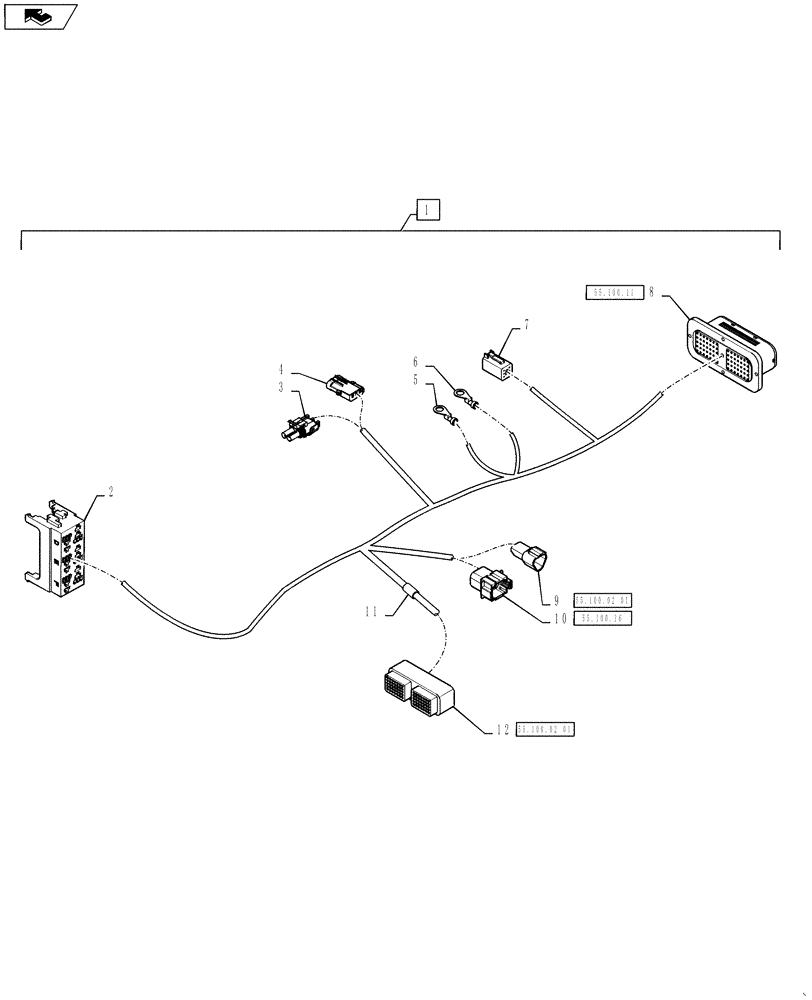

Запчасти Case IH TITAN 3530 (55.100.15[01]) - LH CAB COMPARTMENT HARNESS, BARE CHASSIS (55) - ELECTRICAL SYSTEMS

1

84533020

WIRE HARNESS

LH Compartment, Bare Chassis

1шт.

2

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 4, RP4N

1шт.

2

87704921

LOCK

Relay Panel 4, RP4N

1шт.

2

86509590

RELAY

Relay Panel 4, RP4N

3шт.

2

182135A1

TERMINAL CONNECTOR

12шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

Spread Hold, X-138F4

1шт.

3

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Spread Hold, X-138F4

2шт.

3

87680701

SEAL

Spread Hold, X-138F4

2шт.

4

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Master Power, X-137M4

1шт.

4

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Master Power, X-137M4

2шт.

4

87680701

SEAL

Master Power, X-137M4

2шт.

5

84123827

TERMINAL

Clean Ground, CG3.4

1шт.

6

82012917

TERMINAL

Chassis Ground, G1-CM4

1шт.

7

76074075

ELEC CONNECTOR

GPS Port, X-200F4

1шт.

7

87692882

ELEC. TERMINAL PIN

GPS Port, X-200F4

3шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

GPS Port, X-200F4

1шт.

8

87707114

CONTACT HOUSING,Male, 70 Pole

RH Console Interface, X-128M4

1шт.

8

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

RH Console Interface, X-128M4

26шт.

8

225366C1

ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm

RH Console Interface, X-128M4

2шт.

9

87695723

ELEC CONNECTOR,Male , 3 Pole

Transmission Interface, X-090F4

1шт.

9

87695625

WIRE CONNECTOR,Locking, Green

Transmission Interface, X-090F4

1шт.

9

225366C1

ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm

Transmission Interface, X-090F4

2шт.

10

225320C1

ELEC CONNECTOR

Transmission Interface, X-903M4

1шт.

10

87695625

WIRE CONNECTOR,Locking, Green

Transmission Interface, X-903M4

1шт.

10

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Transmission Interface, X-903M4

8шт.

11

BN16174

DIODE,600V, 3A

3A, 600V, V-004CM4

1шт.

12

87707115

CONTACT HOUSING,Female, 70 Pole

Cab Harness Interface, X-080F4

1шт.

12

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Cab Harness Interface, X-080F4

18шт.
