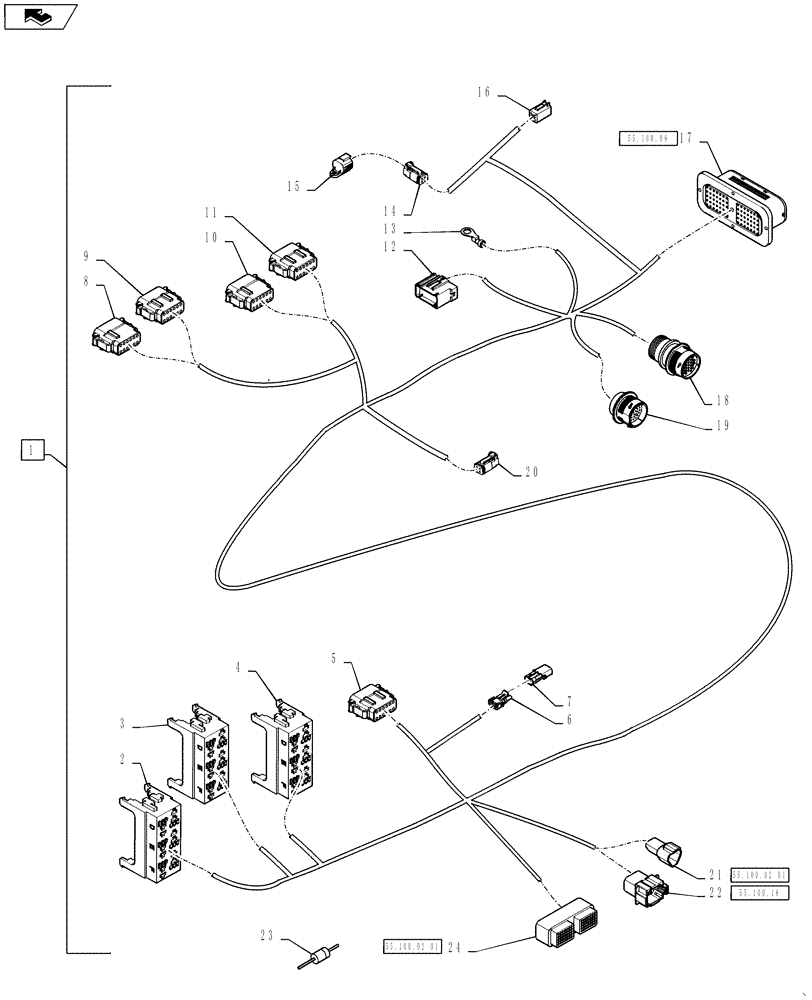

Запчасти Case IH TITAN 3530 (55.100.13) - LH CAB COMPARTMENT HARNESS, SCS5000, 810 FLEX AIR (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
84533045
WIRE HARNESS
LH Compartment, Used With SCS5000 Controller Option, 810
1шт.
2
87705041
MULTIPOLE CONNECTOR,Female, 30 Pole
Relay Panel 6, RP6S
1шт.
2
87704921
LOCK
Relay Panel 6, RP6S
1шт.
2
182135A1
TERMINAL CONNECTOR
Relay Panel 6, RP6S
6шт.
2
182136A1
TERMINAL CONNECTOR
Relay Panel 6, RP6S
8шт.
2
182128A1
CONNECTOR, ELEC
CONNECTOR Relay Panel 6, RP6S
5шт.
2
86509590
RELAY
Relay Panel 6, RP6S
5шт.
3
87705041
MULTIPOLE CONNECTOR,Female, 30 Pole
Relay Panel 5, RP5S
1шт.
3
87704921
LOCK
Relay Panel 5, RP5S
1шт.
3
182135A1
TERMINAL CONNECTOR
Relay Panel 5, RP5S
8шт.
3
182136A1
TERMINAL CONNECTOR
Relay Panel 5, RP5S
6шт.
3
87704599
TERMINAL CONNECTOR,Tin, 2.00 - 3.00mm
Relay Panel 5, RP5S
6шт.
3
182128A1
CONNECTOR, ELEC
CONNECTOR Relay Panel 5, RP5S
5шт.
3
86509590
RELAY
Relay Panel 5, RP5S
6шт.
4
87705041
MULTIPOLE CONNECTOR,Female, 30 Pole
Relay Panel 4, RP4S
1шт.
4
87704921
LOCK
Relay Panel 4, RP4S
1шт.
4
182135A1
TERMINAL CONNECTOR
Relay Panel 4, RP4S
7шт.
4
182136A1
TERMINAL CONNECTOR
Relay Panel 4, RP4S
6шт.
4
87704599
TERMINAL CONNECTOR,Tin, 2.00 - 3.00mm
Relay Panel 4, RP4S
3шт.
4
182128A1
CONNECTOR, ELEC
CONNECTOR Relay Panel 4, RP4S
6шт.
4
86509590
RELAY
Relay Panel 4, RP4S
6шт.
5
87705198
WEDGE
Foam Marker Node, X-204F3
1шт.
5
87696954
TERMINAL,Female, Nickel, 0.35 - 1.50mm
Foam Marker Node, X-204F3
9шт.
6
87692855
CONTACT HOUSING,Male, 2 Cavities
Foam Advance, X-202F3
1шт.
6
225123C1
TERMINAL CONNECTOR,Tin, 0.8mm
Foam Advance, X-202F3
2шт.
6
87680701
SEAL
Foam Advance, X-202F3
2шт.
7
87692877
MULTIPOLE CONNECTOR,Male, 2 Cavities
Foam Advance Jumper, X-202M3
1шт.
7
225120C1
TERMINAL CONNECTOR,Tin, 0.8mm
Foam Advance Jumper, X-202M3
2шт.
7
87680701
SEAL
Foam Advance Jumper, X-202M3
2шт.
8
87705101
MULTIPOLE CONNECTOR,Female, 12 Pole
Product Control Node, X-053F3
1шт.
8
87705198
WEDGE
Product Control Node, X-053F3
1шт.
8
87696954
TERMINAL,Female, Nickel, 0.35 - 1.50mm
Product Control Node, X-053F3
5шт.
9
87705198
WEDGE
Product Control Node, X-052F3
1шт.
9
87696954
TERMINAL,Female, Nickel, 0.35 - 1.50mm
Product Control Node, X-052F3
7шт.
9
223953A1
SOCKET/RECEPTACLE
Product Control Node, X-052F3
2шт.
9
225039C1
TERMINAL
Product Control Node, X-052F3
3шт.
10
87705101
MULTIPOLE CONNECTOR,Female, 12 Pole
Speed Node, X-251F3
1шт.
10
87705198
WEDGE
Speed Node, X-251F3
1шт.
10
87696954
TERMINAL,Female, Nickel, 0.35 - 1.50mm
Speed Node, X-251F3
3шт.
10
223953A1
SOCKET/RECEPTACLE
Speed Node, X-251F3
2шт.
11
87705198
WEDGE
Speed Node, X-249F3
1шт.
11
87696954
TERMINAL,Female, Nickel, 0.35 - 1.50mm
Speed Node, X-249F3
5шт.
12
84149207
ELEC CONNECTOR
Clean Ground, SP-061F3
1шт.
12
87693733
RETAINER
Clean Ground, SP-061F3
1шт.
12
87352750
CAP
Clean Ground, SP-061F3
1шт.
12
87693727
ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm
Clean Ground, SP-061F3
2шт.
13
84140737
TERMINAL CONNECTOR
Chassis Ground, G1-CM3
1шт.
14
84074640
LOCKING TAB,Wedge Lock
Product Can, X-211F3
1шт.
14
86500036
TERMINAL,Female, Nickel, 0.75 - 2mm
Product Can, X-211F3
4шт.
15
84391166
WIRE CONNECTOR,Male, 4 Pins
Cap For Product Can, X-211M3
1шт.
16
76074075
ELEC CONNECTOR
Power Ground Port, X-200F3
1шт.
16
87694149
ELEC CONNECTOR
Wedge, Power Ground Port, X-200F3
1шт.
16
87692882
ELEC. TERMINAL PIN
Power Ground Port, X-200F3
3шт.
16
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Power Ground Port, X-200F3
1шт.
17
87707114
CONTACT HOUSING,Male, 70 Pole
RH Console Interface, X-128M3
1шт.
17
225241C1
SOCKET
RH Console Interface, X-128M3
55шт.
17
225366C1
ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm
RH Console Interface, X-128M3
2шт.
18
87696777
ELEC CONNECTOR
Hydraulic Harness Bulkhead, XB-4M3
1шт.
18
87271930
NUT
Hydraulic Harness Bulkhead, XB-4M3
1шт.
18
87695915
ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm
Hydraulic Harness Bulkhead, XB-4M3
19шт.
19
87700815
MULTIPOLE CONNECTOR,Male, 35 Pole
Product Control Harness Bulkhead, XB-5M3
1шт.
19
87271930
NUT
Product Control Harness Bulkhead, XB-5M3
1шт.
19
87695915
ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm
Product Control Harness Bulkhead, XB-5M3
20шт.
19
381417A1
TERMINAL,Male, Nickel, 0.50 - 1.00mm
Product Control Harness Bulkhead, XB-5M3
1шт.
19
223951A1
PIN
Product Control Harness Bulkhead, XB-5M3
2шт.
19
87696141
TERMINAL
Product Control Harness Bulkhead, XB-5M3
1шт.
20
87694153
CONTACT HOUSING,Female, 4 Cavities
Auger Interface Control, X-152F3
1шт.
20
86500036
TERMINAL,Female, Nickel, 0.75 - 2mm
Auger Interface Control, X-152F3
3шт.
20
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Auger Interface Control, X-152F3
1шт.
21
87695723
ELEC CONNECTOR,Male , 3 Pole
Transmission Interface, X-090M3
1шт.
21
87695625
WIRE CONNECTOR,Locking, Green
Transmission Interface, X-090M3
1шт.
21
225365C1
SOCKET
Transmission Interface, X-090M3
2шт.
22
225320C1
ELEC CONNECTOR
Transmission Interface, X-903M3
1шт.
22
225322C1
WEDGE
Transmission Interface, X-903M3
1шт.
22
86500035
ELEC. TERMINAL PIN,Male, 0.75 - 2mm
Transmission Interface, X-903M3
8шт.
23
BN16174
DIODE,600V, 3A
3A, 600V, X-1CM3
1шт.
24
87707115
CONTACT HOUSING,Female, 70 Pole
Cab Harness Interface, X-080F3
1шт.
24
87695915
ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm
Cab Harness Interface, X-080F3
29шт.
24
225365C1
SOCKET
Cab Harness Interface, X-080F3
4шт.
24
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Cab Harness Interface, X-080F3
1шт.
25
86511817
SCREW,Pan, M3 x 0.5 x 20mm, Cl 4.8
M3 x 20, PHD, 4.8, ZND, Not Shown, Used To Mount Harness To RH Console Harness
3шт.
26
86509827
LOCK WASHER,M3
Not Shown, Used To Mount Harness To RH Console Harness
3шт.
27
86508812
NUT,M3, Cl 8
Not Shown, Used To Mount Harness To RH Console Harness
3шт.
Выбрано товаров: 89
