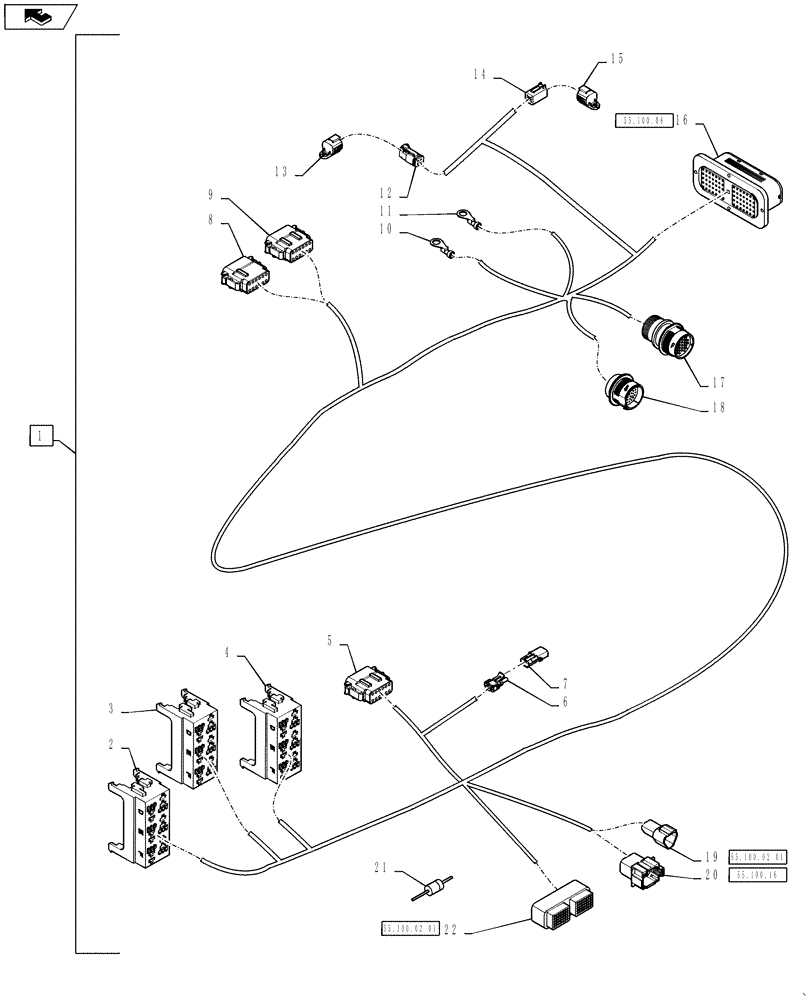

Запчасти Case IH TITAN 3530 (55.100.12) - LH CAB COMPARTMENT HARNESS, VIPER PRO, 810 FLEX AIR (55) - ELECTRICAL SYSTEMS

1

84533050

WIRE HARNESS

LH Compartment, Used With Viper Pro Controller Option, 810

1шт.

2

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 6, RP6V

1шт.

2

87704921

LOCK

Relay Panel 6, RP6V

1шт.

2

182135A1

TERMINAL CONNECTOR

Relay Panel 6, RP6V

8шт.

2

182136A1

TERMINAL CONNECTOR

Relay Panel 6, RP6V

5шт.

2

87704599

TERMINAL CONNECTOR,Tin, 2.00 - 3.00mm

Relay Panel 6, RP6V

4шт.

2

182128A1

CONNECTOR, ELEC

CONNECTOR Relay Panel 6, RP6V

2шт.

2

86509590

RELAY

Relay Panel 6, RP6V

5шт.

3

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 5, RP5V

1шт.

3

87704921

LOCK

Relay Panel 5, RP5V

1шт.

3

182135A1

TERMINAL CONNECTOR

Relay Panel 5, RP5V

15шт.

3

182136A1

TERMINAL CONNECTOR

Relay Panel 5, RP5V

1шт.

3

87704599

TERMINAL CONNECTOR,Tin, 2.00 - 3.00mm

Relay Panel 5, RP5V

5шт.

3

182128A1

CONNECTOR, ELEC

CONNECTOR Relay Panel 5, RP5V

5шт.

3

86509590

RELAY

Relay Panel 5, RP5V

6шт.

4

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 4, RP4V

1шт.

4

87704921

LOCK

Relay Panel 4, RP4V

1шт.

4

182135A1

TERMINAL CONNECTOR

Relay Panel 4, RP4V

9шт.

4

182136A1

TERMINAL CONNECTOR

Relay Panel 4, RP4V

2шт.

4

87704599

TERMINAL CONNECTOR,Tin, 2.00 - 3.00mm

Relay Panel 4, RP4V

6шт.

4

182128A1

CONNECTOR, ELEC

CONNECTOR Relay Panel 4, RP4V

5шт.

4

86509590

RELAY

Relay Panel 4, RP4V

5шт.

5

87700156

CONTACT HOUSING,Female, 12 Pole

Foam Marker Node, X-204F2

1шт.

5

87705198

WEDGE

Foam Marker Node, X-204F2

1шт.

5

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Foam Marker Node, X-204F2

9шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

Foam Advance, X-202F2

1шт.

6

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

Foam Advance, X-202F2

2шт.

6

87680701

SEAL

Foam Advance, X-202F2

2шт.

7

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Foam Advance Jumper, X-202M2

1шт.

7

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Foam Advance Jumper, X-202M2

2шт.

7

87680701

SEAL

Foam Advance Jumper, X-202M2

2шт.

8

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Speed Node, X-251F2

1шт.

8

87705198

WEDGE

Speed Node, X-251F2

1шт.

8

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Speed Node, X-251F2

3шт.

8

223953A1

SOCKET/RECEPTACLE

Speed Node, X-251F2

2шт.

9

87700156

CONTACT HOUSING,Female, 12 Pole

Speed Node, X-249F2

1шт.

9

87705198

WEDGE

Speed Node, X-249F2

1шт.

9

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Speed Node, X-249F2

5шт.

10

84123827

TERMINAL

Chassis Ground, CG3.2

1шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

Chassis Ground, CG3.2, Not Included With Harness

1шт.

11

82012917

TERMINAL

Chassis Ground, G1-CM2

1шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

Chassis Ground, G1-CM2, Not Included With Harness

1шт.

12

87694153

CONTACT HOUSING,Female, 4 Cavities

Product Can, X-211F2

1шт.

12

84074640

LOCKING TAB,Wedge Lock

Product Can, X-211F2

1шт.

12

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Product Can, X-211F2

4шт.

13

84391166

WIRE CONNECTOR,Male, 4 Pins

Cap For Product Can, X-211M2

1шт.

14

76074075

ELEC CONNECTOR

GPS Port, X-200F2

1шт.

14

87692882

ELEC. TERMINAL PIN

GPS Port, X-200F2

3шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

GPS Port, X-200F2

1шт.

15

84391167

CAP

Cap For GPS Port, X-200M2

1шт.

16

87707114

CONTACT HOUSING,Male, 70 Pole

RH Console Interface, X-128M2

1шт.

16

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

RH Console Interface, X-128M2

49шт.

16

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

RH Console Interface, X-128M2

1шт.

16

225366C1

ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm

RH Console Interface, X-128M2

2шт.

17

87696777

ELEC CONNECTOR

Hydraulic Harness Bulkhead, XB-4M2

1шт.

17

87271930

NUT

Hydraulic Harness Bulkhead, XB-4M2

1шт.

17

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Hydraulic Harness Bulkhead, XB-4M2

17шт.

17

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

Hydraulic Harness Bulkhead, XB-4M2

4шт.

18

87700815

MULTIPOLE CONNECTOR,Male, 35 Pole

Product Control Harness Bulkhead, XB-5M2

1шт.

18

87271930

NUT

Product Control Harness Bulkhead, XB-5M2

1шт.

18

223951A1

PIN

Product Control Harness Bulkhead, XB-5M2

2шт.

18

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Product Control Harness Bulkhead, XB-5M2

4шт.

18

87696141

TERMINAL

Product Control Harness Bulkhead, XB-5M2

1шт.

19

87695723

ELEC CONNECTOR,Male , 3 Pole

Transmission Interface, X-090M2

1шт.

19

87695625

WIRE CONNECTOR,Locking, Green

Transmission Interface, X-090M2

1шт.

19

225365C1

SOCKET

Transmission Interface, X-090M2

2шт.

20

225320C1

ELEC CONNECTOR

Transmission Interface, X-903M2

1шт.

20

225322C1

WEDGE

Transmission Interface, X-903M2

1шт.

20

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Transmission Interface, X-903M2

8шт.

21

BN16174

DIODE,600V, 3A

3A, 600V, X-1CM2

1шт.

22

87707115

CONTACT HOUSING,Female, 70 Pole

Cab Harness Interface, X-080F2

1шт.

22

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

Cab Harness Interface, X-080F2

29шт.

22

225365C1

SOCKET

Cab Harness Interface, X-080F2

4шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cab Harness Interface, X-080F2

1шт.

23

86511817

SCREW,Pan, M3 x 0.5 x 20mm, Cl 4.8

M3 x 20, PHD, 4.8, ZND, Not Shown, Used To Mount Harness To RH Console Harness

3шт.

24

86509827

LOCK WASHER,M3

Not Shown, Used To Mount Harness To RH Console Harness

3шт.

25

86508812

NUT,M3, Cl 8

Not Shown, Used To Mount Harness To RH Console Harness

3шт.
