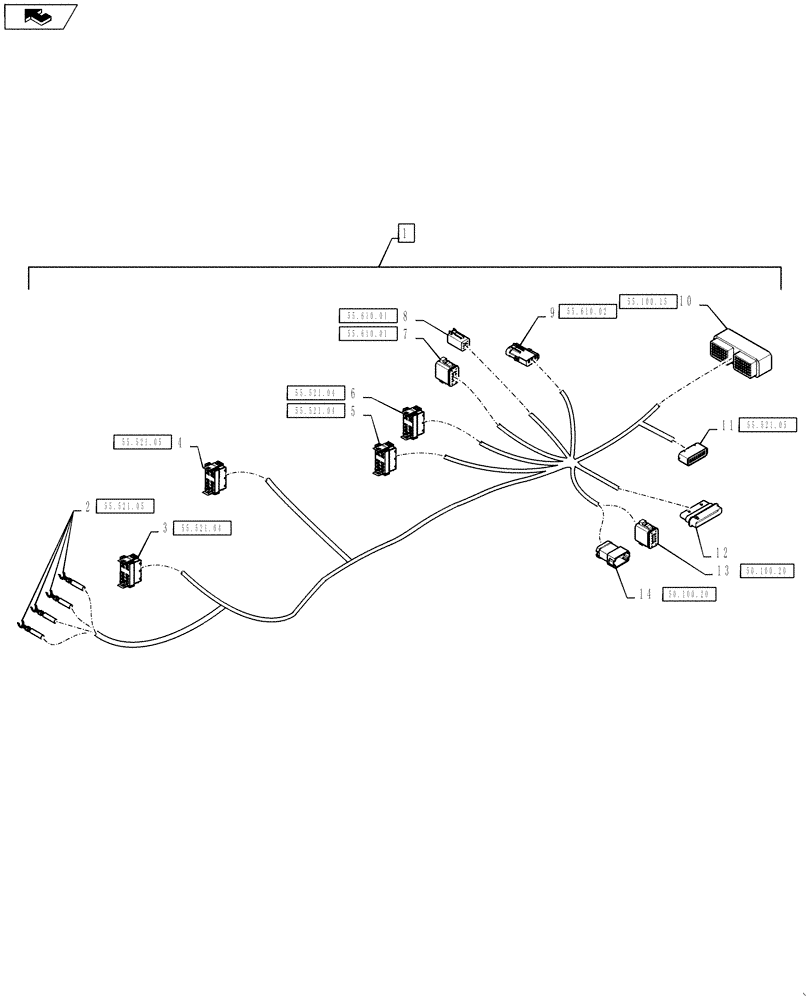

Запчасти Case IH TITAN 3530 (55.100.11[01]) - RH CONSOLE HARNESS, BARE CHASSIS (55) - ELECTRICAL SYSTEMS

1

84528853

WIRE HARNESS

RH Console, Bare Chassis

1шт.

2

84401288

TERMINAL

Cruise Control Switch, X-102N

4шт.

3

BN310610

ELEC CONNECTOR,Female, 10 Pin

Cruise Set/Resume, X-103F4

1шт.

3

182136A1

TERMINAL CONNECTOR

Cruise Set/Resume, X-103F4

3шт.

4

BN310610

ELEC CONNECTOR,Female, 10 Pin

Auxiliary Transmission Shift, X-116F4

1шт.

4

182136A1

TERMINAL CONNECTOR

Auxiliary Transmission Shift, X-116F4

6шт.

5

BN310610

ELEC CONNECTOR,Female, 10 Pin

Master Power Switch, 121F4

1шт.

5

182136A1

TERMINAL CONNECTOR

Master Power Switch, 121F4

5шт.

5

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Master Power Switch, 121F4

1шт.

6

BN310610

ELEC CONNECTOR,Female, 10 Pin

Park Brake, X-122F4

1шт.

6

182136A1

TERMINAL CONNECTOR

Park Brake, X-122F4

6шт.

6

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Park Brake, X-122F4

1шт.

7

87695592

CONTACT HOUSING,Female, 12 Pole

Control Handle, X-101F4

1шт.

7

87695651

LOCKING TAB,Wedge Lock

Control Handle, X-101F4

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Control Handle, X-101F4

9шт.

8

87694112

ELEC CONNECTOR,Female, 6 Pole

Control Handle Power, X-100F4

1шт.

8

87694150

LOCKING TAB,Wedge Lock

Control Handle Power, X-100F4

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Control Handle Power, X-100F4

5шт.

9

87692858

ELEC CONNECTOR,Male

Decel, X-130M4

1шт.

9

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Decel, X-130M4

2шт.

10

87707115

CONTACT HOUSING,Female, 70 Pole

Compartment Harness Interface, X-128F4

1шт.

10

87271606

BOOT

Compartment Harness Interface, X-128F4

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Compartment Harness Interface, X-128F4

26шт.

10

225365C1

SOCKET

Compartment Harness Interface, X-128F4

2шт.

11

87271908

ELEC CONNECTOR

Transmission Shifter, X-905F4

1шт.

11

87271909

SEAL

Transmission Shifter, X-905F4

1шт.

11

87271910

WEDGE

Transmission Shifter, X-905F4

1шт.

11

87271911

PLUG

Transmission Shifter, X-905F4

9шт.

11

87271912

WEDGE

Transmission Shifter, X-905F4

1шт.

11

87271913

WEDGE

Transmission Shifter, X-905F4

1шт.

11

87693268

TERMINAL

Transmission Shifter, X-905F4

7шт.

12

87694717

ELEC CONNECTOR

Splice, SP-154F4

1шт.

12

84153405

RETAINER

Splice, SP-154F4

1шт.

12

87695206

ELEC CONNECTOR

Splice, SP-154F4

1шт.

12

84526560

TERMINAL

Splice, SP-154F4

12шт.

13

87695592

CONTACT HOUSING,Female, 12 Pole

2 Speed Axle, X-126F4

1шт.

13

87695651

LOCKING TAB,Wedge Lock

2 Speed Axle, X-126F4

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2 Speed Axle, X-126F4

10шт.

14

87695724

ELEC CONNECTOR,Male, 12 Pole

2 Speed Axle, X-127M4

1шт.

14

87698541

LOCKING TAB,Wedge Lock, 12-Pin

2 Speed Axle, X-127M4

1шт.

14

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

Lock, 2 Speed Axle, X-127M4

10шт.
