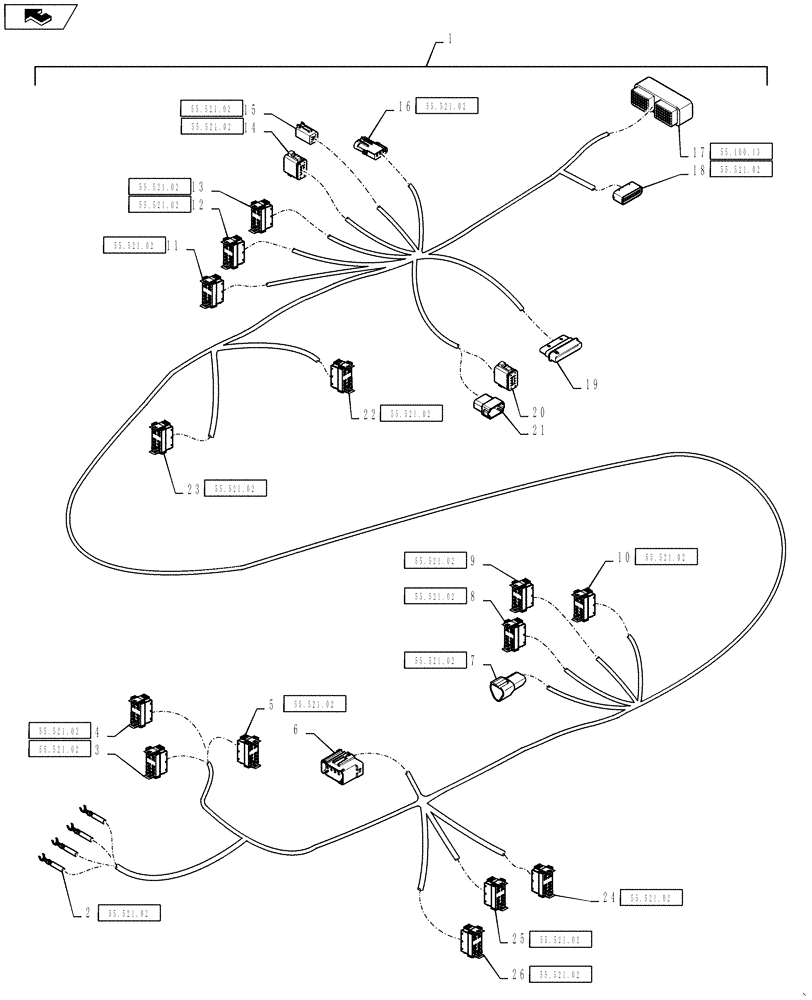

Запчасти Case IH TITAN 3530 (55.100.09) - RH CONSOLE HARNESS, SCS5000, 810 FLEX AIR (55) - ELECTRICAL SYSTEMS

1

84528854

WIRE HARNESS

RH Console, Used with SCS5000 Controller Option, 810

1шт.

2

84401288

TERMINAL

Cruise Control Switch, X-102S

4шт.

3

BN310610

ELEC CONNECTOR,Female, 10 Pin

Cruise Set/Resume, X-103F3

1шт.

3

182136A1

TERMINAL CONNECTOR

Cruise Set/Resume, X-103F3

3шт.

4

BN310610

ELEC CONNECTOR,Female, 10 Pin

Fan On/Off, X-104F3

1шт.

4

182136A1

TERMINAL CONNECTOR

Fan On/Off, X-104F3

3шт.

5

BN310610

ELEC CONNECTOR,Female, 10 Pin

Fan Speed Increase/ Decrease, X-105F3

1шт.

5

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Fan Speed Increase/ Decrease, X-105F3

6шт.

6

87352746

ELEC CONNECTOR

Splice 007, X-007F3

1шт.

6

87693733

RETAINER

Splice 007, X-007F3

1шт.

6

87352747

CAP

Splice 007, X-007F3

1шт.

6

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Splice 007, X-007F3

10шт.

6

87693249

ELEC. TERMINAL PIN

Splice 007, X-007F3

1шт.

7

87695723

ELEC CONNECTOR,Male , 3 Pole

Foam Volume, 113M3

1шт.

7

87695625

WIRE CONNECTOR,Locking, Green

Foam Volume, 113M3

1шт.

7

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

Foam Volume, 113M3

3шт.

8

BN310610

ELEC CONNECTOR,Female, 10 Pin

Foam Marker On/Off, X-114F3

1шт.

8

182136A1

TERMINAL CONNECTOR

Foam Marker On/Off, X-114F3

2шт.

8

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Foam Marker On/Off, X-114F3

1шт.

9

BN310610

ELEC CONNECTOR,Female, 10 Pin

Main Gate Open/Close, X-115F3

1шт.

9

182136A1

TERMINAL CONNECTOR

Main Gate Open/Close, X-115F3

3шт.

10

BN310610

ELEC CONNECTOR,Female, 10 Pin

Supplemental Gate Open/Close, X-116F3

1шт.

10

182136A1

TERMINAL CONNECTOR

Supplemental Gate Open/Close, X-116F3

3шт.

11

BN310610

ELEC CONNECTOR,Female, 10 Pin

Sparge Pressure Increase/Decrease, X-120F3

1шт.

11

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Sparge Pressure Increase/Decrease, X-120F3

6шт.

12

BN310610

ELEC CONNECTOR,Female, 10 Pin

Master Power Switch, 121F3

1шт.

12

182136A1

TERMINAL CONNECTOR

Master Power Switch, 121F3

5шт.

13

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Master Power Switch, 121F3

1шт.

13

BN310610

ELEC CONNECTOR,Female, 10 Pin

Park Brake, X-122F3

1шт.

13

182136A1

TERMINAL CONNECTOR

Park Brake, X-122F3

6шт.

13

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Park Brake, X-122F3

1шт.

14

87695592

CONTACT HOUSING,Female, 12 Pole

Control Handle, X-101F3

1шт.

14

87695651

LOCKING TAB,Wedge Lock

Control Handle, X-101F3

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Control Handle, X-101F3

9шт.

15

87694112

ELEC CONNECTOR,Female, 6 Pole

Control Handle Power, X-100F3

1шт.

15

87694150

LOCKING TAB,Wedge Lock

Control Handle Power, X-100F3

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Control Handle Power, X-100F3

5шт.

16

87692858

ELEC CONNECTOR,Male

Decel, X-130M3

1шт.

16

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Decel, X-130M3

2шт.

17

87707115

CONTACT HOUSING,Female, 70 Pole

Compartment Harness Interface, X-128F3

1шт.

17

87271606

BOOT

Compartment Harness Interface, X-128F3

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Compartment Harness Interface, X-128F3

56шт.

17

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Compartment Harness Interface, X-128F3

1шт.

18

87271908

ELEC CONNECTOR

Transmission Shifter, X-905F3

1шт.

18

87271909

SEAL

Transmission Shifter, X-905F3

1шт.

18

87271910

WEDGE

Transmission Shifter, X-905F3

1шт.

18

87271911

PLUG

Transmission Shifter, X-905F3

9шт.

18

87271912

WEDGE

Transmission Shifter, X-905F3

1шт.

18

87271913

WEDGE

Transmission Shifter, X-905F3

1шт.

18

87693268

TERMINAL

Transmission Shifter, X-905F3

7шт.

19

87694717

ELEC CONNECTOR

3 x 4 Way Splice, X-182F3

1шт.

19

84153405

RETAINER

3 x 4 Way Splice, X-182F3

1шт.

19

87695206

ELEC CONNECTOR

3 x 4 Way Splice, X-182F3

1шт.

19

84526560

TERMINAL

3 x 4 Way Splice, X-182F3

10шт.

19

388688A1

CONNECTOR, ELEC

CONNECTOR 3 x 4 Way Splice, X-182F3

1шт.

20

87695592

CONTACT HOUSING,Female, 12 Pole

2 Speed Axle, X-126F3

1шт.

20

87695651

LOCKING TAB,Wedge Lock

2 Speed Axle, X-126F3

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2 Speed Axle, X-126F3

10шт.

21

87695724

ELEC CONNECTOR,Male, 12 Pole

2 Speed Axle, X-126M3

1шт.

21

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Lock, 2 Speed Axle, X-126M3

1шт.

21

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

2 Speed Axle, X-126M3

11шт.

22

BN310610

ELEC CONNECTOR,Female, 10 Pin

RH Tip Fold Up/Down, X-119F3

1шт.

22

182136A1

TERMINAL CONNECTOR

RH Tip Fold Up/Down, X-119F3

3шт.

23

BN310610

ELEC CONNECTOR,Female, 10 Pin

LH Tip Fold Up/Down, X-117F3

1шт.

23

182136A1

TERMINAL CONNECTOR

LH Tip Fold Up/Down, X-117F3

2шт.

23

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

LH Tip Fold Up/Down, X-117F3

1шт.

24

BN310610

ELEC CONNECTOR,Female, 10 Pin

Boom Lock Switch, X-112F3

1шт.

24

182136A1

TERMINAL CONNECTOR

Boom Lock Switch, X-112F3

3шт.

24

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Boom Lock Switch, X-112F3

1шт.

25

BN310610

ELEC CONNECTOR,Female, 10 Pin

Main Auger Switch, X-111F3

1шт.

25

182136A1

TERMINAL CONNECTOR

Main Auger Switch, X-111F3

3шт.

26

BN310610

ELEC CONNECTOR,Female, 10 Pin

LH/RH Boom, X-106F3

1шт.

26

182136A1

TERMINAL CONNECTOR

LH/RH Boom, X-106F3

4шт.

26

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

LH/RH Boom, X-106F3

1шт.
