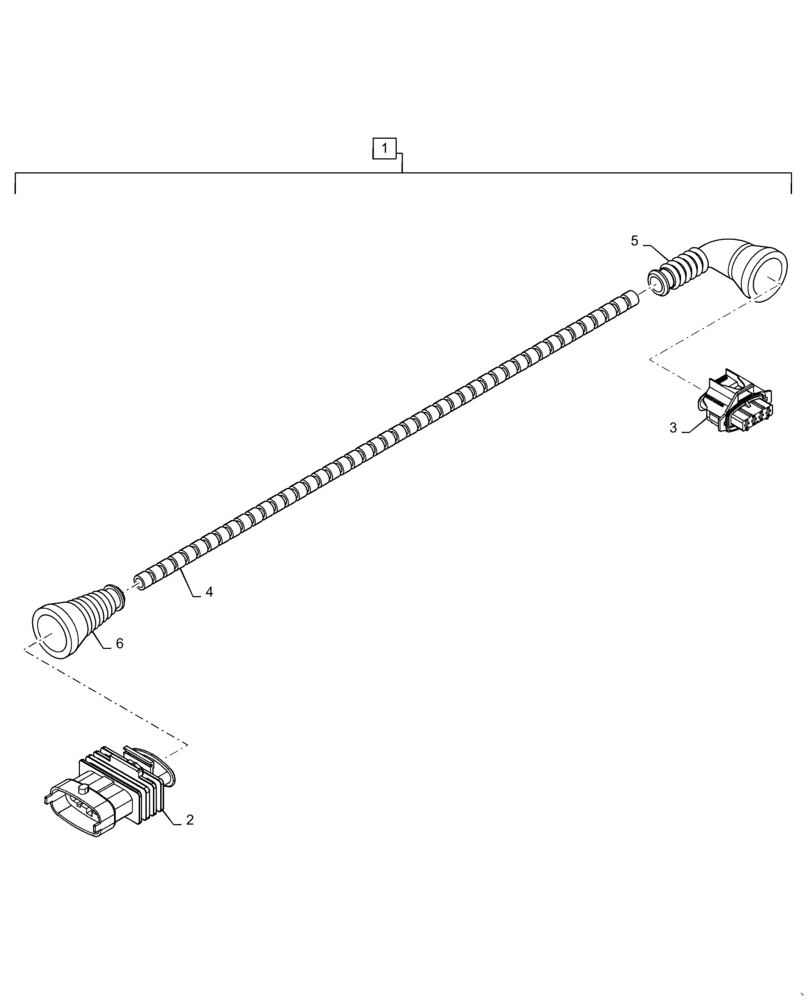

Запчасти Case IH TITAN 3530 (55.100.06[02]) - JUMPER, ENGINE HARNESS TO BOOST SENSOR (55) - ELECTRICAL SYSTEMS

1

47786531

WIRE HARNESS

Boost Sensor Jumper, Incl 2-

1шт.

2

47785800

ELEC CONNECTOR

Male, 4 Way, FPT Engine Harness, X-002

1шт.

2

84172540

TERMINAL

FPT Engine Harness, X-002

4шт.

2

87705975

SEAL

Cavity, Blue, FPT Engine Harness, X-002

4шт.

3

87709809

ELEC CONNECTOR

Female, 4 Way, FPT Boost Sensor, X-001

1шт.

3

84130602

TERMINAL CONNECTOR

Male Tin, FPT Boost Sensor, X-001

4шт.

4

84121541

CONDUIT

Slit

1шт.

3

87705975

SEAL

Cavity, Blue, FPT Boost Sensor, X-001

4шт.

5

47786546

BOOT

Boot, 90 Degree

1шт.

6

84148431

BOOT

Rubber

1шт.
