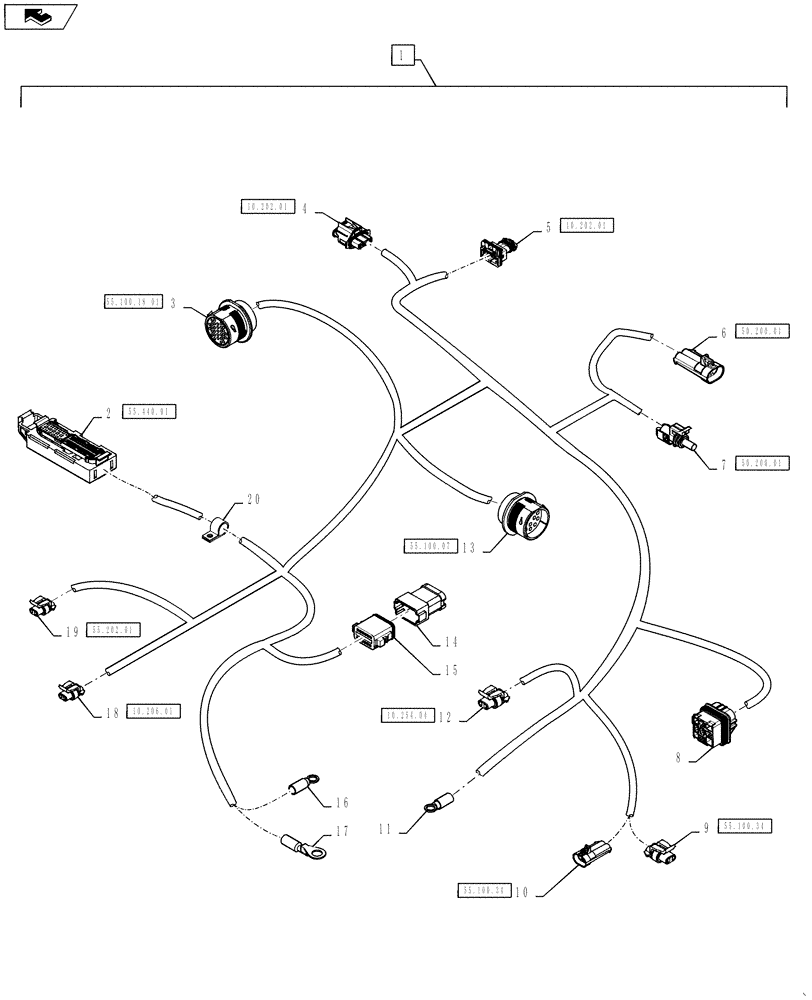

Запчасти Case IH TITAN 3530 (55.100.06[01]) - ENGINE HARNESS (55) - ELECTRICAL SYSTEMS

1

84518432

WIRE HARNESS

Engine, FPT Tier 4A, 9L, Includes Ref 2 - 20

1шт.

2

84160698

ELEC CONNECTOR

ECM, X-816M1

1шт.

2

84183733

ELEC CONNECTOR

ECM, X-816M1

1шт.

2

87636264

ELEC CONNECTOR

ECM, X-816M1

8шт.

2

84183921

TERMINAL CONNECTOR,Tin, 1.50 - 2.50mm

ECM, X-816M1

8шт.

2

84183922

TERMINAL

ECM, X-816M1

12шт.

2

84130602

TERMINAL CONNECTOR

ECM, X-816M1

1шт.

2

87705976

SEAL

ECM, X-816M1

1шт.

3

87696944

ELEC CONNECTOR,Female, 31 Pole

Main Harness Interface, XB-801F1

1шт.

3

87271930

NUT

Main Harness Interface, XB-801F1

1шт.

3

84068583

PLUG,12 - 16 Ga, White

Main Harness Interface, XB-801F1

15шт.

3

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Main Harness Interface, XB-801F1

16шт.

4

87709809

ELEC CONNECTOR

Inlet Air Sensor, X-830F1

1шт.

4

87705971

CONTACT

Inlet Air Sensor, X-830F1

4шт.

4

87705976

SEAL

Inlet Air Sensor, X-830F1

4шт.

5

84607243

ELEC CONNECTOR,Female, 2 Cavities

Air Restriction, X-811F1

1шт.

5

12309290

CABLE TERMINAL

Air Restriction, X-811F1

2шт.

5

87691478

SEAL

Air Restriction, X-811F1

2шт.

6

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

A/C Compressor Safety Switch, X-813M1

1шт.

6

87688862

LOCKING TAB

A/C Compressor Safety Switch, X-813M1

1шт.

6

87688814

TERMINAL

A/C Compressor Safety Switch, X-813M1

2шт.

6

292550A1

SEAL

A/C Compressor Safety Switch, X-813M1

2шт.

7

87693744

WIRE CONNECTOR

A/C Compressor Clutch, X-814F1

1шт.

7

87692880

CABLE TERMINAL

A/C Compressor Clutch, X-814F1

1шт.

7

87680701

SEAL

A/C Compressor Clutch, X-814F1

1шт.

8

87710584

WIRE CONNECTOR

EVGT Relay, X-809F

1шт.

8

86508603

RELAY,12V

EVGT Relay, X-809F

1шт.

8

87688850

TERMINAL

EVGT Relay, X-809F

2шт.

8

87688848

TERMINAL

EVGT Relay, X-809F

2шт.

9

82012083

WIRE CONNECTOR,Female

EVGT, Power, Ground, X-821F

1шт.

9

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

EVGT, Power, Ground, X-821F

1шт.

9

87687545

TERMINAL CONNECTOR

EVGT, Power, Ground, X-821F

1шт.

9

87406998

SEAL

EVGT, Power, Ground, X-821F

2шт.

10

87687244

ELEC CONNECTOR

EVGT Can, X-820M

1шт.

10

12451844

TERMINAL CONNECTOR,Male, 0.3 - 0.6 mm2

EVGT Can, X-820M

2шт.

10

12452283

GASKET

Seal, EVGT Can, X-820M

2шт.

11

446658

TERMINAL CONNECTOR

Alternator Excite, X-835F1

1шт.

12

82012083

WIRE CONNECTOR,Female

Grid Heater, X-817F1

1шт.

12

87687564

TERMINAL CONNECTOR

Grid Heater, X-817F1

2шт.

12

82012084

SEAL,1.4mm ID

Grid Heater, X-817F1

2шт.

13

84178657

ELEC CONNECTOR

Denox Harness Interface, X-802F1

1шт.

13

87716303

NUT,1.500" x 18 UNEF

Denox Harness Interface, X-802F1

1шт.

13

84068583

PLUG,12 - 16 Ga, White

Denox Harness Interface, X-802F1

6шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Denox Harness Interface, X-802F1

3шт.

13

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Denox Harness Interface, X-802F1

1шт.

13

225365C1

SOCKET

Denox Harness Interface, X-802F1

4шт.

14

87381540

ELEC CONNECTOR

2 x 6 Way Splice Pack, X-805M1

1шт.

14

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Lock, 2 x 6 Way Splice Pack, X-805M1

1шт.

15

87696075

ELEC CONNECTOR

2 x 6 Way Splice, X-805F1

1шт.

15

87695651

LOCKING TAB,Wedge Lock

2 x 6 Way Splice, X-805F1

1шт.

15

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

2 x 6 Way Splice, X-805F1

12шт.

16

84401283

TERMINAL

Battery +, PD3

1шт.

17

84398828

TERMINAL,3/8" Ring, SAE 8

Clean Ground, CG4.1

1шт.

18

87693821

ELEC CONNECTOR,Female, 2 Cavities

Fuel Restricter, X-667F1

1шт.

18

258613A1

LOCK

Fuel Restricter, X-667F1

1шт.

18

87688852

ELEC. TERMINAL PIN

Fuel Restricter, X-667F1

2шт.

18

87689629

SEAL

Fuel Restricter, X-667F1

2шт.

19

82012083

WIRE CONNECTOR,Female

Intermediate Start Relay, X-806F1

1шт.

19

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Intermediate Start Relay, X-806F1

2шт.

19

87406998

SEAL

Intermediate Start Relay, X-806F1

2шт.

20

257492

CLAMP,14.3mm, Coat, 10.3mm Bolt Hole, P Type

1шт.
