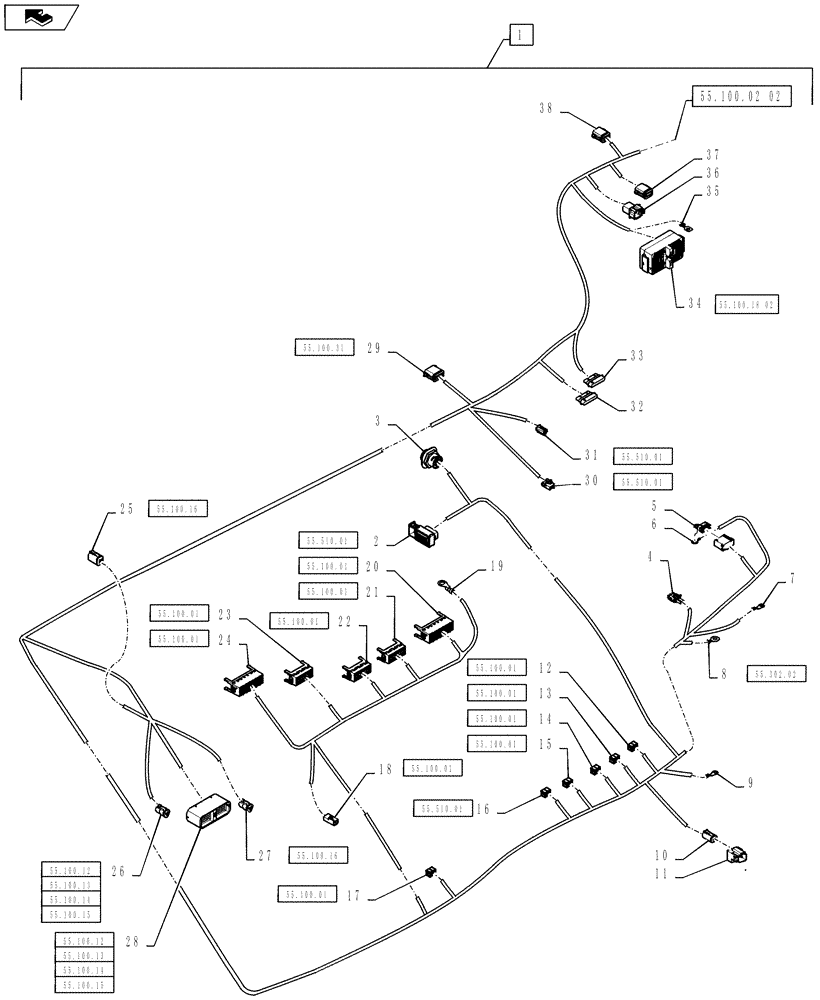

Запчасти Case IH TITAN 3530 (55.100.02[01]) - MAIN CAB HARNESS (55) - ELECTRICAL SYSTEMS

1

84323493

WIRE HARNESS

Main Cab Harness

1шт.

2

87680366

ELEC CONNECTOR,Female, 24 Cavities

Turn Signal Module, C060F

1шт.

87714248

LOCKING TAB,Wedge Lock

Turn Signal Module, C060F

1шт.

82028439

TERMINAL CONNECTOR

Terminal, Turn Signal Module, C060F

3шт.

87697192

CABLE TERMINAL,Tin, 1.00 - 2.50mm

Terminal, Turn Signal Module, C060F

8шт.

87708543

CABLE TERMINAL

Terminal, Turn Signal Module, C060F

2шт.

3

87736919

CONTACT HOUSING,Female, 9 Pole

Can Diagnostic, C073F

1шт.

87737472

JAM NUT,Hex, M35 x 1

Can Diagnostic, C073F

1шт.

87737474

LID

Can Diagnostic, C073F

1шт.

225365C1

SOCKET

Terminal, Can Diagnostic, C073F

4шт.

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Terminal, Can Diagnostic, C073F

3шт.

4

87692855

CONTACT HOUSING,Male, 2 Cavities

Traction Control, C058F

1шт.

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

Traction Control, C058F

2шт.

5

84149207

ELEC CONNECTOR

Chassis Ground, G2.1

1шт.

87693733

RETAINER

Chassis Ground, G2.1

1шт.

87352750

CAP

Chassis Ground, G2.1

1шт.

87693249

ELEC. TERMINAL PIN

Terminal, Chassis Ground, G2.1

12шт.

6

84140737

TERMINAL CONNECTOR

Chassis Ground, G2

1шт.

7

84149204

TERMINAL CONNECTOR

Chassis Ground, CG2

1шт.

8

84140739

TERMINAL CONNECTOR,Ring, M12, 2.50 - 6.00mm

Battery, BH1, BH1.1, BH1.2

3шт.

9

84149204

TERMINAL CONNECTOR

Keyed Switch Power, K1, K1.1

2шт.

10

87694153

CONTACT HOUSING,Female, 4 Cavities

Backlighting Detect, C081M

1шт.

87694146

ELEC CONNECTOR,Locking, Green

Wedge, Backlighting Detect, C081M

1шт.

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Terminal, Backlighting Detect, C081M

3шт.

11

87270520

DIODE

Backlighting Detect, C081M

1шт.

12

367145A1

ELEC CONNECTOR,Female, 4 Pin

Ignition Switch Power Relay, C062

1шт.

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Ignition Switch Power Relay, C062

2шт.

84282306

TERMINAL CONNECTOR

Terminal, Ignition Switch Power Relay, C062

2шт.

13

367145A1

ELEC CONNECTOR,Female, 4 Pin

ACC Relay 1, C063

1шт.

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, ACC Relay 1, C063

2шт.

84282306

TERMINAL CONNECTOR

Terminal, ACC Relay 1, C063

2шт.

14

367145A1

ELEC CONNECTOR,Female, 4 Pin

ACC Relay 2, C064

1шт.

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, ACC Relay 2, C064

2шт.

84282306

TERMINAL CONNECTOR

Terminal, ACC Relay 2, C064

2шт.

15

367145A1

ELEC CONNECTOR,Female, 4 Pin

ACC Relay 3, C065

1шт.

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, ACC Relay 3, C065

2шт.

84282306

TERMINAL CONNECTOR

Terminal, ACC Relay 3, C065

2шт.

16

367145A1

ELEC CONNECTOR,Female, 4 Pin

ACC Relay 4, C066

1шт.

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, ACC Relay 4, C066

2шт.

84282306

TERMINAL CONNECTOR

Terminal, ACC Relay 4, C066

2шт.

17

367145A1

ELEC CONNECTOR,Female, 4 Pin

Worklight Power Relay C067

1шт.

87697753

ELEC. TERMINAL PIN,Tin, 1.00 - 2.00mm

Terminal, Worklight Power Relay C067

2шт.

84282306

TERMINAL CONNECTOR

Terminal, Worklight Power Relay C067

2шт.

18

227429A1

CONNECTOR, ELEC

CONNECTOR Door Jam Switch, C055F

1шт.

87705061

RETAINER

Wedge, Door Jam Switch, C055F

1шт.

84199545

TERMINAL

Terminal, Door Jam Switch, C055F

2шт.

19

425054A1

TERMINAL CONNECTOR,22 - 16 SAE

Ring Terminal, C098F

1шт.

20

144421A1

CONNECTING BLOCK

Fuse Panel 1, FP1

1шт.

196160A1

BASE

Fuse Panel 1, FP1

1шт.

87703296

TERMINAL CONNECTOR

Terminal, Fuse Panel 1, FP1

9шт.

226403A1

TERMINAL CONNECTOR

Terminal, Fuse Panel 1, FP1

17шт.

21

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 1, RP1

1шт.

87704921

LOCK

Relay Panel 1, RP1

1шт.

182135A1

TERMINAL CONNECTOR

Terminal, Relay Panel 1, RP1

12шт.

87704599

TERMINAL CONNECTOR,Tin, 2.00 - 3.00mm

Terminal, Relay Panel 1, RP1

8шт.

22

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 2, RP2

1шт.

87704921

LOCK

Relay Panel 2, RP2

1шт.

182135A1

TERMINAL CONNECTOR

Terminal, Relay Panel 2, RP2

10шт.

87704599

TERMINAL CONNECTOR,Tin, 2.00 - 3.00mm

Terminal, Relay Panel 2, RP2

2шт.

23

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 3, RP3

1шт.

87704921

LOCK

Relay Panel 3, RP3

1шт.

182135A1

TERMINAL CONNECTOR

Terminal, Relay Panel 3, RP3

7шт.

87704599

TERMINAL CONNECTOR,Tin, 2.00 - 3.00mm

Terminal, Relay Panel 3, RP3

5шт.

182128A1

CONNECTOR, ELEC

CONNECTOR Terminal, Relay Panel 3, RP3

1шт.

24

144421A1

CONNECTING BLOCK

Fuse Panel 2, FP2

1шт.

196160A1

BASE

Fuse Panel 2, FP2

1шт.

226403A1

TERMINAL CONNECTOR

Terminal, Fuse Panel 2, FP2

20шт.

87703296

TERMINAL CONNECTOR

Terminal, Fuse Panel 2, FP2

8шт.

226404A1

TERMINAL CONNECTOR

Terminal, Fuse Panel 2, FP2

2шт.

25

87694112

ELEC CONNECTOR,Female, 6 Pole

Trans Interface, C097F

1шт.

87694150

LOCKING TAB,Wedge Lock

Trans Interface, C097F

1шт.

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Terminal, Trans Interface, C097F

4шт.

26

87695580

ELEC CONNECTOR,Female, 3 Pole

J1939 Trans 2, C090F

1шт.

87695646

WEDGE

J1939 Trans 2, C090F

1шт.

225365C1

SOCKET

Terminal, J1939 Trans 2, C090F

2шт.

27

87695580

ELEC CONNECTOR,Female, 3 Pole

J1939 Trans 1, C079F

1шт.

87695646

WEDGE

J1939 Trans 1, C079F

1шт.

225365C1

SOCKET

Terminal, J1939 Trans 1, C079F

2шт.

28

87336999

ELEC CONNECTOR

Application Interface, C080M, Connects To LH Cab Harness

1шт.

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

Terminal, Application Interface, C080M

49шт.

225407C1

PIN

Terminal, Application Interface, C080M

2шт.

29

225403C1

CONNECTOR, ELEC

CONNECTOR Autoguidance Cab Interface, C047F

1шт.

87695651

LOCKING TAB,Wedge Lock

Autoguidance Cab Interface, C047F

1шт.

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Autoguidance Cab Interface, C047F

11шт.

30

227728A1

CONNECTION,ELECTRIC

Seat RH Accessory Port, C083F

1шт.

227730A1

CONNECTOR, ELEC

CONNECTOR Lock Seat RH Accessory Port, C083F

1шт.

221386A1

CONNECTION,ELECTRIC

Terminal, Seat RH Accessory Port, C083F

3шт.

31

84177907

ELEC CONNECTOR

Seat LH Cigarette Lighter, C089F

1шт.

84178477

RETAINER

Seat LH Cigarette Lighter, C089F

1шт.

87693249

ELEC. TERMINAL PIN

Terminal, Seat LH Cigarette Lighter, C089F

2шт.

32

87694717

ELEC CONNECTOR

Splice Pack, C074F

1шт.

87697816

RETAINER

Splice Pack, C074F

1шт.

388688A1

CONNECTOR, ELEC

CONNECTOR Terminal, Splice Pack, C074F

9шт.

87695206

ELEC CONNECTOR

Cover, Splice Pack, C074F

1шт.

33

87694717

ELEC CONNECTOR

Splice Pack, C072F

1шт.

87697816

RETAINER

Splice Pack, C072F

1шт.

388688A1

CONNECTOR, ELEC

CONNECTOR Terminal, Splice Pack, C072F

9шт.

87695206

ELEC CONNECTOR

Cover, Splice Pack, C072F

1шт.

34

437551A1

ELEC CONNECTOR,Male, 102 Pin

Main Bulkhead Interface, C006M

1шт.

87717022

RETAINER

Main Bulkhead Interface, C006M

1шт.

87717024

RETAINER

Main Bulkhead Interface, C006M

1шт.

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Terminal, Main Bulkhead Interface, C006M

62шт.

388688A1

CONNECTOR, ELEC

CONNECTOR Terminal, Main Bulkhead Interface, C006M

7шт.

500397C1

TERMINAL CONNECTOR

Terminal, Main Bulkhead Interface, C006M

4шт.

225365C1

SOCKET

Terminal, Main Bulkhead Interface, C006M

2шт.

87716571

ELEC. TERMINAL PIN

Terminal, Main Bulkhead Interface, C006M

1шт.

35

84149204

TERMINAL CONNECTOR

Clean Ground, CG2S

1шт.

36

225412C1

CONNECTOR, ELEC

CONNECTOR From TPS/Console, C041M

1шт.

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

Terminal, From TPS/Console, C041M

8шт.

37

225409C1

CONNECTOR, ELEC

CONNECTOR To ICU, C041FA

1шт.

84806312

LOCKING TAB,Wedge Lock

Wedge, To ICU, C041FA

1шт.

381418A1

SOCKET

Terminal, To ICU, C041FA

8шт.

38

225409C1

CONNECTOR, ELEC

CONNECTOR To CDC Engine, C041F

1шт.

84806312

LOCKING TAB,Wedge Lock

Wedge, To CDC Engine, C041F

1шт.

381418A1

SOCKET

Terminal, To CDC Engine, C041F

5шт.
