(41.216.02) - STEERING CYLINDER

Запчасти Case IH TITAN 3530 (41.216.02) - STEERING CYLINDER (41) - STEERING

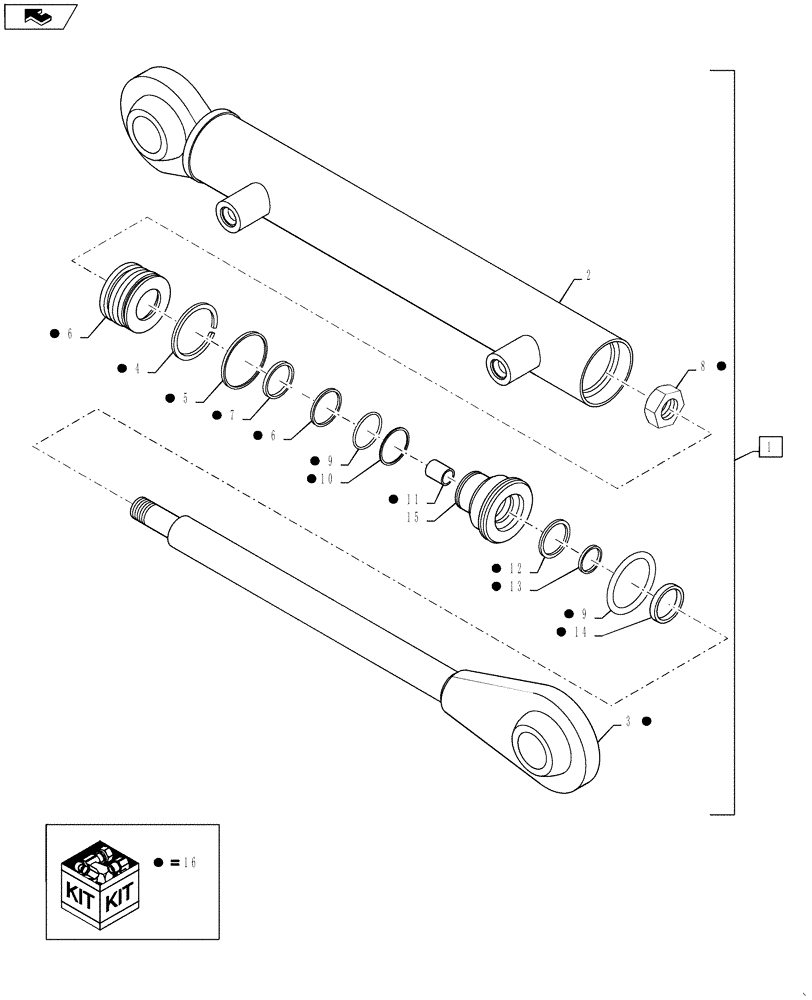

Схема запчастей Case IH TITAN 3530 - (41.216.02) - STEERING CYLINDER (41) - STEERING
11
15
16
1
16
16
2
16
16
home
6
6
16
7
9
16
16
4
16
10
8
16
13
5
16
14
3
16
12
16
9
16
16
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

344003A1

CYLINDER,Double Acting, 25.4mm Rod, 304.8mm Stroke

Steering, 2.00 x 12 x 1.00, Includes Ref 2 - 16

1шт.

2

86986230

CASE

Assembly

1шт.

3

BN325749

SHAFT

Assembly

1шт.

4

86986223

WEAR RING

Hydraulic Cylinder

2шт.

5

86986216

SEAL

Piston

1шт.

6

86986226

PISTON

Hydraulic Cylinder

1шт.

7

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

8

86986220

LOCK NUT

Hydraulic Cylinder

1шт.

9

238-5133

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

2шт.

10

84251311

WASHER

Backup

1шт.

11

86986217

WEAR RING

Hydraulic Cylinder

1шт.

12

86986219

SEAL

Step

1шт.

13

86986218

SEAL

U-Cup

1шт.

14

86986215

WIPER

Rod

1шт.

15

86986227

HEAD

Front

1шт.

16

342216A1

SEAL KIT

Steering Cylinder, Includes Ref 3 - 4, 6, 8 - 13

1шт.
