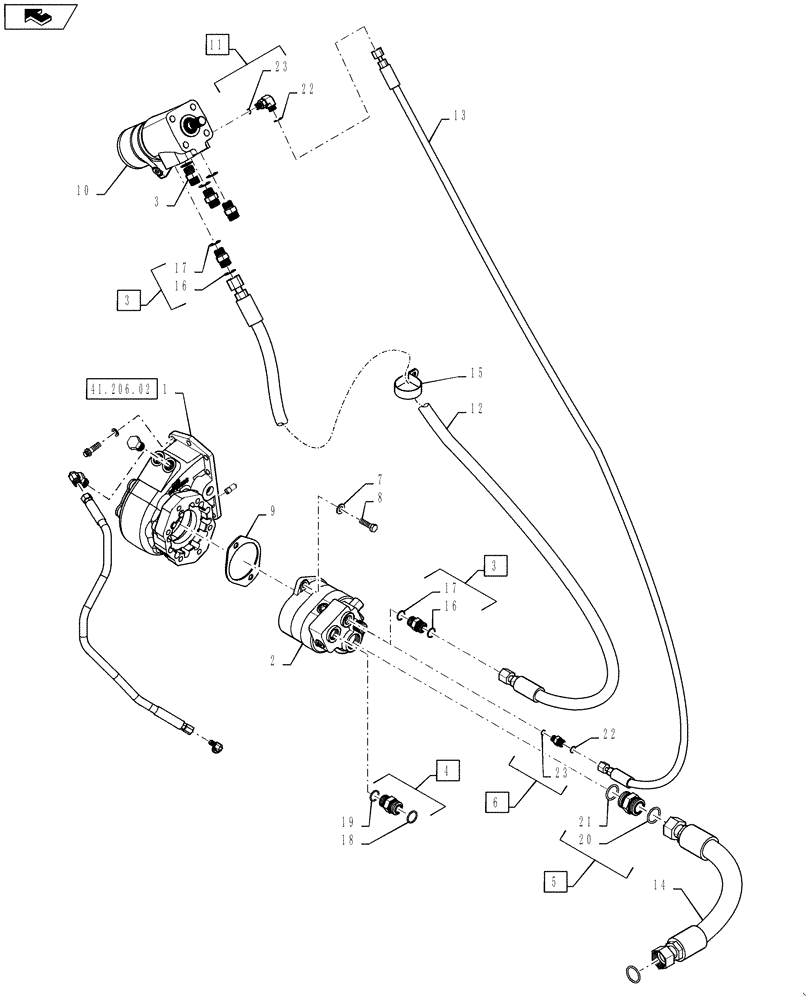

Запчасти Case IH TITAN 3530 (41.206.01) - STEERING VALVE/PUMP GROUP (41) - STEERING

1

84141622

PTO

11 Tooth Spline, Continuous Operation, Steering

1шт.

See Fig 41.206.02 For Service Parts

1шт.

2

BN317546

PUMP

Gear

1шт.

BN317546R

REMAN-HYD PUMP

TITAN 3030, TITAN 3530 BOTH TIER 4 (2/12-)

1шт.

BN317546C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB, Includes Ref. 16, 17

5шт.

4

BN305057

FITTING

1-3/16 -12 ORFS x 7/8 -14 ORB, Includes Ref. 25, 24

1шт.

5

BN302659

FITTING

1-11/16 -12 ORFS x 1-5/16 -12 ORB, Includes Ref. 22, 23

1шт.

6

BN302640

FITTING

9/16 -18 ORFS x 7/16 -20 ORB, Includes Ref. 18, 19

1шт.

7

86625241

WASHER,0.41" ID x 0.81" OD x 0.09" Thk

.406 X 0.812 X .089 IN, HDN, ZND

2шт.

8

87342768

BOLT,Hex, 3/8"-16 x 1-1/4", G5, Full Thd, DOR

2шт.

9

BN69793

GASKET

2 Bolt SAE "A" Pad

1шт.

10

BN302547

90 ELBOW

9/16-18 ORFS x 7/16-20 ORB, ZND, Includes Ref. 18, 19

1шт.

11

BN302440

FITTING

TEE, 20MOR-20MOR-20FORX, Includes Ref. 22, 23

1шт.

12

87268524

CAP

ORS -20

1шт.

13

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Includes Ref. 27

1шт.

14

84596589

HOSE ASSY.

1 - 11/16 - 12 Female ORFS Swivel Elbow x 1 - 11/16 - 12 Female ORFS Swivel 45° x 1 - 1/4" ID x 22" Long, Tee To Hydraulic Tank

1шт.

15

86986060

HOSE

7/16 - 20 Female ORFS Swivel x 7/16 - 20 Female ORFS Swivel Elbow x 1/4" ID x 97" Long, Gear Pump To Steering Orbital

1шт.

16

BN309740

HOSE

13/16 - 16 Female ORFS Swivel x 13/16 - 16 Female ORFS Swivel Elbow x 1/2" ID x 100" Long, Gear Pump To Steering Orbital

1шт.

17

410874A1

PUMP

Steering Orbital

1шт.

18

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

2шт.

19

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

3шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.

21

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

2шт.

22

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1-11/16", ORFS

4шт.

23

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

1шт.

24

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8", ORB

1шт.

25

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

1шт.

26

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

1шт.

27

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

1шт.

28

396591A1

KIT

SEAL, Steering Pump

1шт.
