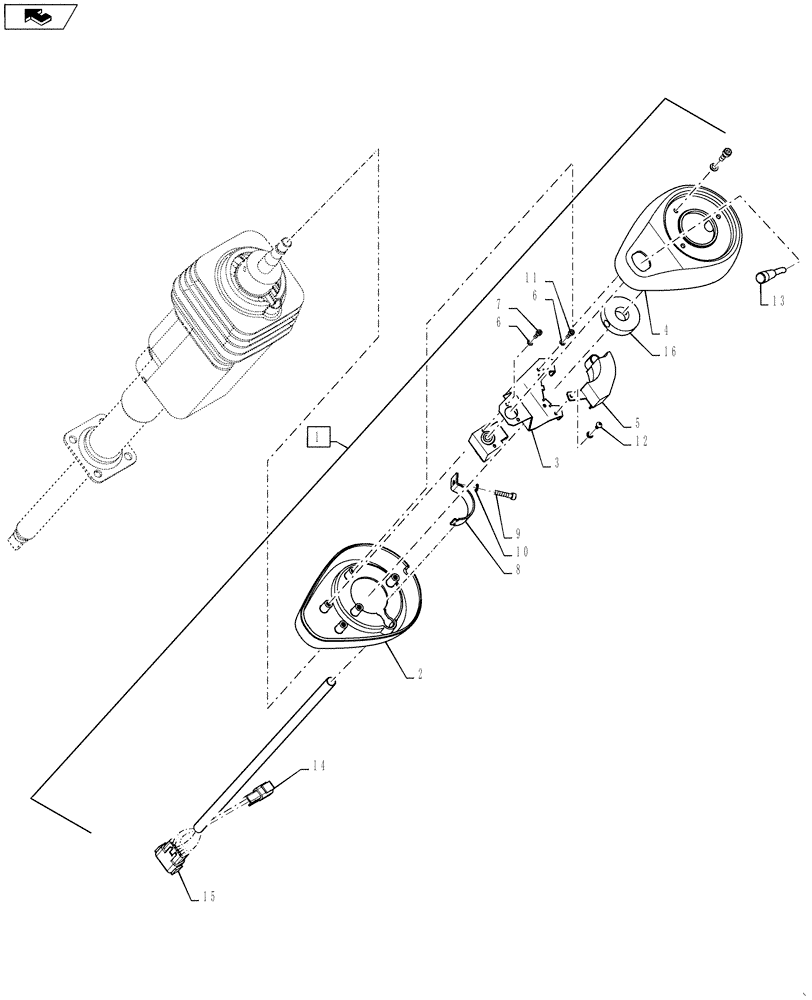

Запчасти Case IH TITAN 3530 (41.204.03) - STEERING AND POD ASSEMBLY (41) - STEERING

1

412350A1

ASSEMBLY

Self Cancelling Turn Signal Module, Includes Ref 2 - 16

1шт.

2

253396A2

HOUSING

Turn Signal, Lower

1шт.

3

253397A2

SUPPORT

Turn Signal Bracket

1шт.

4

253395A1

HOUSING

Turn Signal, Upper

1шт.

5

87538885

SENSOR

Self Cancel Turn signal

1шт.

6

892-11004

LOCK WASHER,M4

4шт.

7

840-146

SCREW,Pan, M4 x 6mm, Cl 4.8

2шт.

8

144628A1

SUPPORT

F/N/R Control Pod Bracket

1шт.

9

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

10

893-16005

LOCK WASHER,Int Tooth, M5

2шт.

11

864-4012

HEX SOC SCREW,M4 x 12mm, Cl 8.8

5шт.

12

760-14413

SELF-TAP SCREW,Pan Hd, M4.8 x 13

1шт.

13

284777A1

SWITCH

Universal, W/ Dipping, W/ Self-Cancel

1шт.

14

222136A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

15

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

1шт.

16

253679A1

RING

Magnet

1шт.
