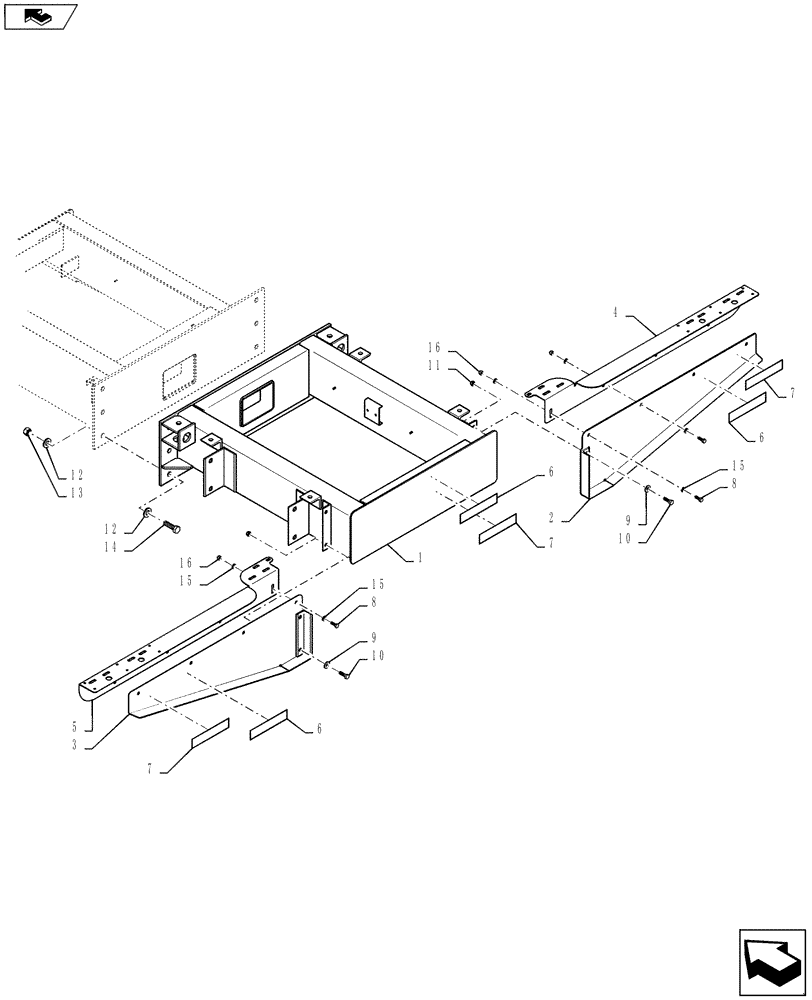

Запчасти Case IH TITAN 3530 (39.100.06) - 46" FRAME EXTENSION, ONLY USED WITH WET BOOM OPTION ON 810 FLEX-AIR (39) - FRAMES AND BALLASTING

1

BN320783

EXTENSION

Frame, 46"

1шт.

2

343765A1

SUPPORT TUBE

RH

1шт.

3

343774A1

SUPPORT TUBE

LH

1шт.

4

87267710

BRACKET

46" Extension, RH

1шт.

5

87267711

BRACKET

46" Extension, LH

1шт.

6

311865A1

REFLECTOR

Fluorescent Orange, 9 x 2

3шт.

7

311863A1

REFLECTOR

Retroreflective Red, 9 x 2

3шт.

8

BN50254

BOLT,3/8"-16 x 1", Stainless

8шт.

9

BN50595

WASHER,1/2", Stainless

4шт.

10

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

11

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

4шт.

12

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm, HDN, DOR

12шт.

13

87024336

NUT,M20 x 2.5, Cl 10

6шт.

14

87342043

BOLT,Hex, M20 x 65mm, Cl 10.9

M20 - 2.5 X 65, 10.9, DOR

6шт.

15

BN50146

WASHER,3/8", Stainless

16шт.

16

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.
