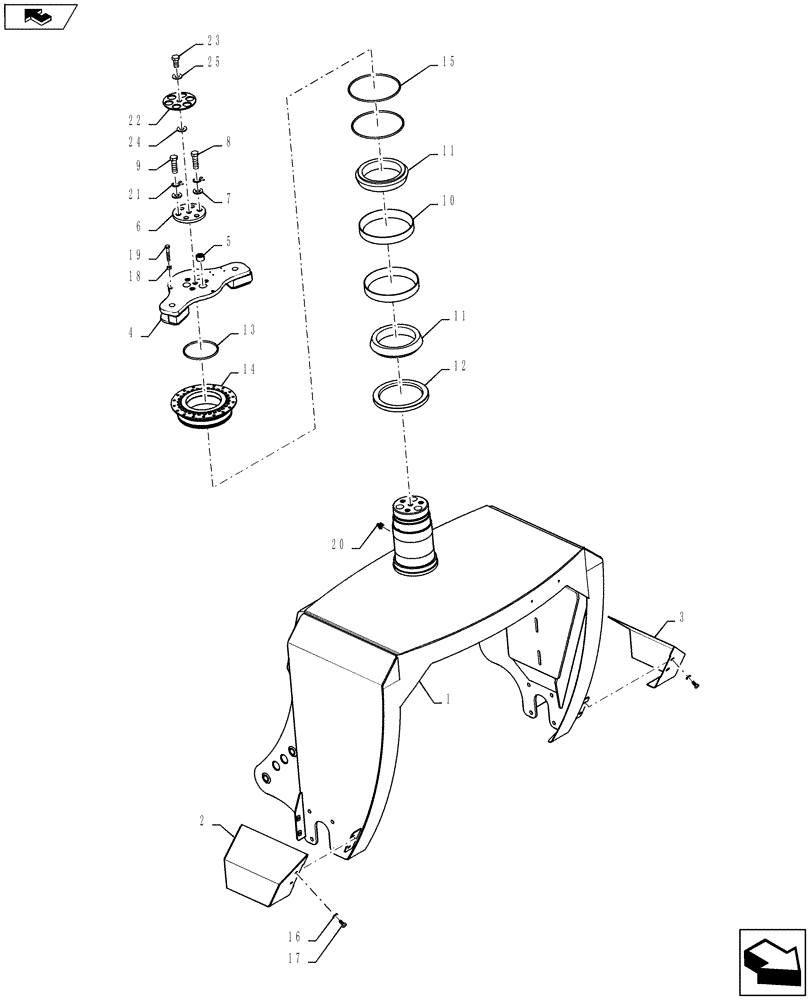

Запчасти Case IH TITAN 3530 (39.100.02[01]) - FRONT FORK GROUP, BSN YCT033001 (39) - FRAMES AND BALLASTING

1

84534842

FORK

Long Kingpin

1шт.

2

BN324650

COVER ASSY

Axle, Right Side

1шт.

3

BN324651

COVER ASSY

Axle, Left Side

1шт.

4

84588545

STEERING ARM

1шт.

5

BN324111

BUSHING

Alignment Pin

3шт.

6

87392699

STIFFENER

Ring, 12.7 mm

1шт.

7

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

22 X 44 X 5MM HDN DOR

6шт.

8

87342001

BOLT,Hex, M20 x 90, Class 10.9, DOR

3шт.

9

87394757

BOLT,Hex, M20 x 70mm, Cl 10.9

Hex, M20 x 70 CL10.9 DOR

3шт.

10

BN323427

BEARING CUP

JM736110

2шт.

11

BN323426

ROLLER BEARING

Cone, JM736149

2шт.

12

BN323425

OIL SEAL

Oil, 7.75 X 10 X 0.75

1шт.

13

87033152

O-RING,5.85" ID x 6.4" OD x 0.275"

1шт.

14

84414096

NUT

Weldment, Brearing - Fork

1шт.

15

87605318

O-RING,8.975" ID x 9.525" OD x 0.275"

2шт.

16

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

8шт.

17

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

18

87344210

NUT

M12 - 1.75, 10.9, DOR

3шт.

19

84025877

BOLT,Hex, M12 x 70mm, Cl 8.8, Full Thd

3шт.

20

BN10151

LUBE NIPPLE

1/8"-27 Straight

1шт.

21

87392700

LOCK WASHER

Retainer

6шт.

22

87392705

RING

Retainer

1шт.

23

86980457

BOLT,Hex, M20 x 40mm, Cl 8.8

M20 2.5 X 40, 8.8, DOR

1шт.

24

87529313

WASHER,24mm ID x 44mm OD x 4mm Thk

24 x 44 x 4mm, HDN, DOR

1шт.

25

495-11094

WASHER,7/8", SAE

1шт.
