Запчасти Case IH TITAN 3530 (36.200.01) - AIR HORN (36) - PNEUMATIC SYSTEM

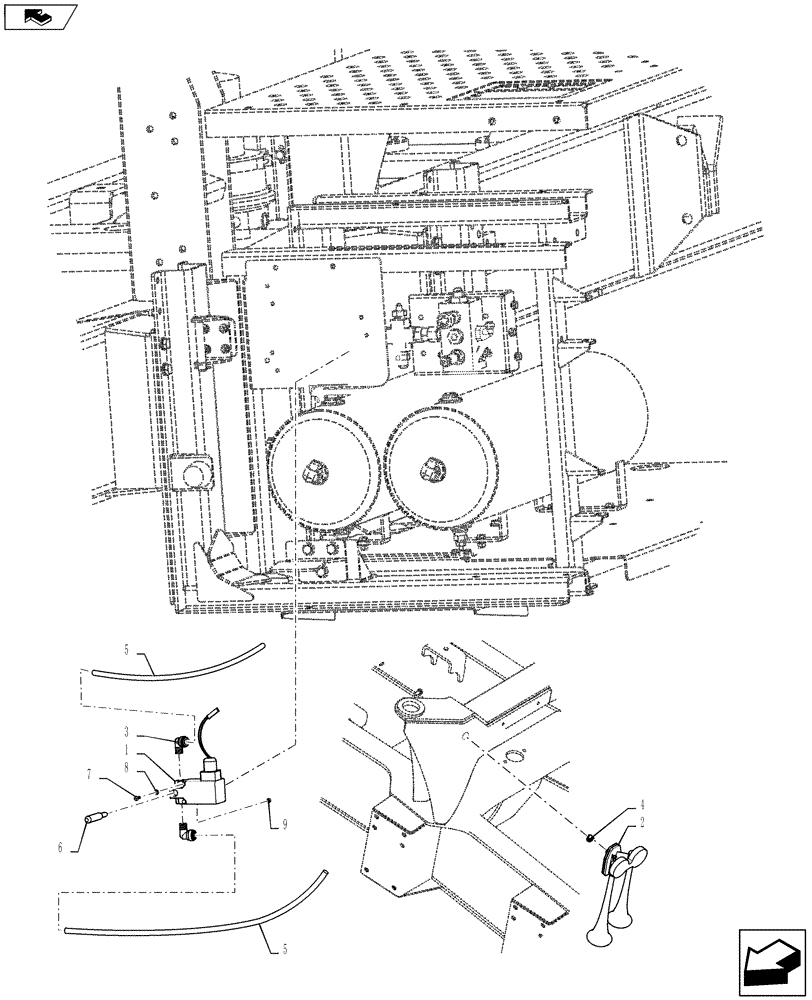

Схема запчастей Case IH TITAN 3530 - (36.200.01) - AIR HORN (36) - PNEUMATIC SYSTEM
3
5
home
9
2
6
7
5
4
8
1

Артикул

Название

Примечание

Количество

1

84124892

PNEUMATIC VALVE

Air Solenoid

1шт.

2

87268289

HORN

Air, Fultone, Black

1шт.

3

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.

4

BN2399413

HYD CONNECTOR

Tube

1шт.

5

84422568

TUBE,3/8" X 50' BULK, SAE J844, BLACK

Air, Synflex 3/8" Black, Bulk, Cut To Required Length

1шт.

6

BN23042

MUFFLER

Air Valve, 1/4 NPT

1шт.

7

87343617

SCREW,Phil Pan Hd, M5 x 50mm, Cl 4.8

M5 x 50, PHD, 4.8, DOR

2шт.

8

BN310265

WASHER

#10, Stainless Steel

2шт.

9

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

2шт.

Выбрано товаров: 9
