(36.100.06) - AIR DRYER SERVICE KITS

Запчасти Case IH TITAN 3530 (36.100.06) - AIR DRYER SERVICE KITS (36) - PNEUMATIC SYSTEM

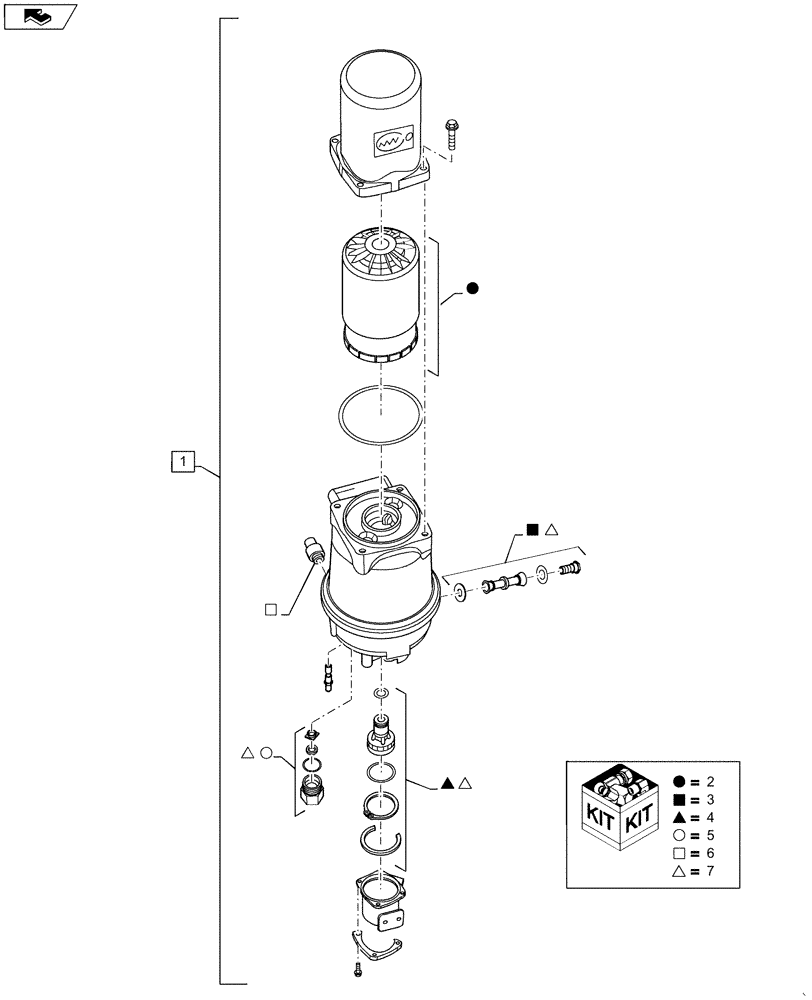

Схема запчастей Case IH TITAN 3530 - (36.100.06) - AIR DRYER SERVICE KITS (36) - PNEUMATIC SYSTEM
4
7
7
7
5
3
3
7
4
6
2
7
5
1
4
5
2
2
3
6
home
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87656542

DEHYDRATOR

Air Dryer Assembly, Includes Ref 2 - 7

1шт.

2

87656549

SERVICE KIT

Multi-Treatment Kit

1шт.

3

87656554

SERVICE KIT

Turbo Protection

1шт.

4

87656555

SERVICE KIT

Purge Assembly Kit

1шт.

5

87656557

SERVICE KIT

One-Way Check Valve

1шт.

6

87656556

SERVICE KIT

Pressure Relief Valve

1шт.

7

87656569

SERVICE KIT

Lower Housing Repair, Includes Ref 3 - 5

1шт.

Выбрано товаров: 7
