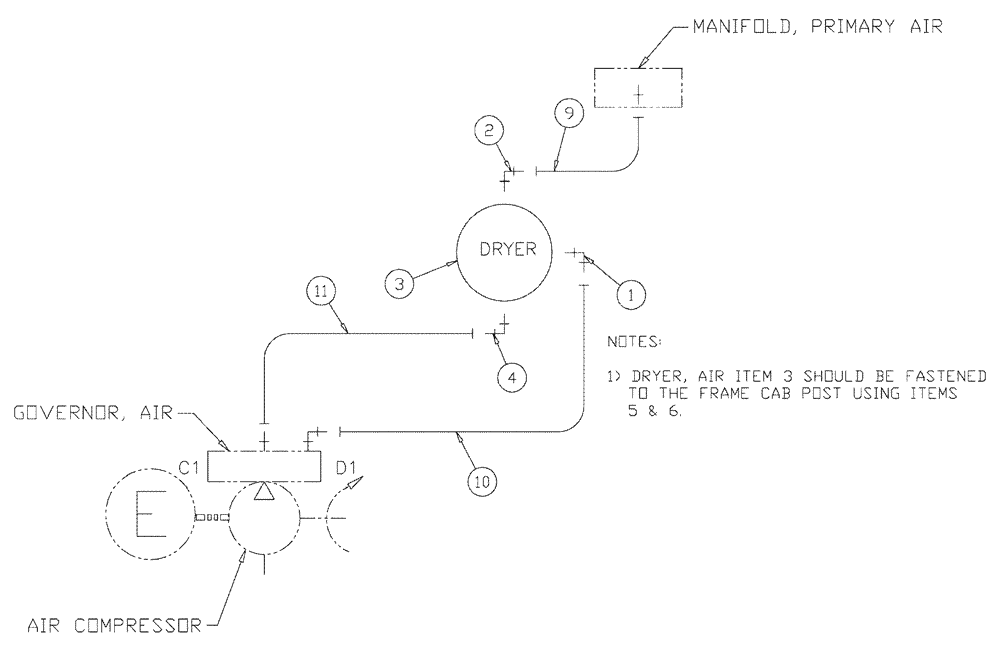

Запчасти Case IH TITAN 3520 (07-014) - AIR DRYER GROUP Pneumatics

1

BN2290148

ELBOW

4MJ - 2MP 90º

1шт.

2

BN2290508

ELBOW

2103-8-8

1шт.

3

87656542

DEHYDRATOR

Air, Purest

1шт.

See Fig. 07-015

1шт.

4

BN2390690

FITTING

5603-8-10

1шт.

5

87529126

WASHER,0.53" ID x 1.75" OD x 0.1" Thk

0.531 X 1.75 X 0.1 CST DOR

3шт.

6

87343465

SERRATED BOLT

SERRATED, 1/2-13 X 1-1/4 5 SPL DOR

3шт.

9

342921A1

HOSE

8 x 60"

1шт.

10

BN322680

HOSE

ASSY, 4 X 70"

1шт.

11

342822A1

HOSE,12.7mm ID x 1524mm L

10 x 60"

1шт.
