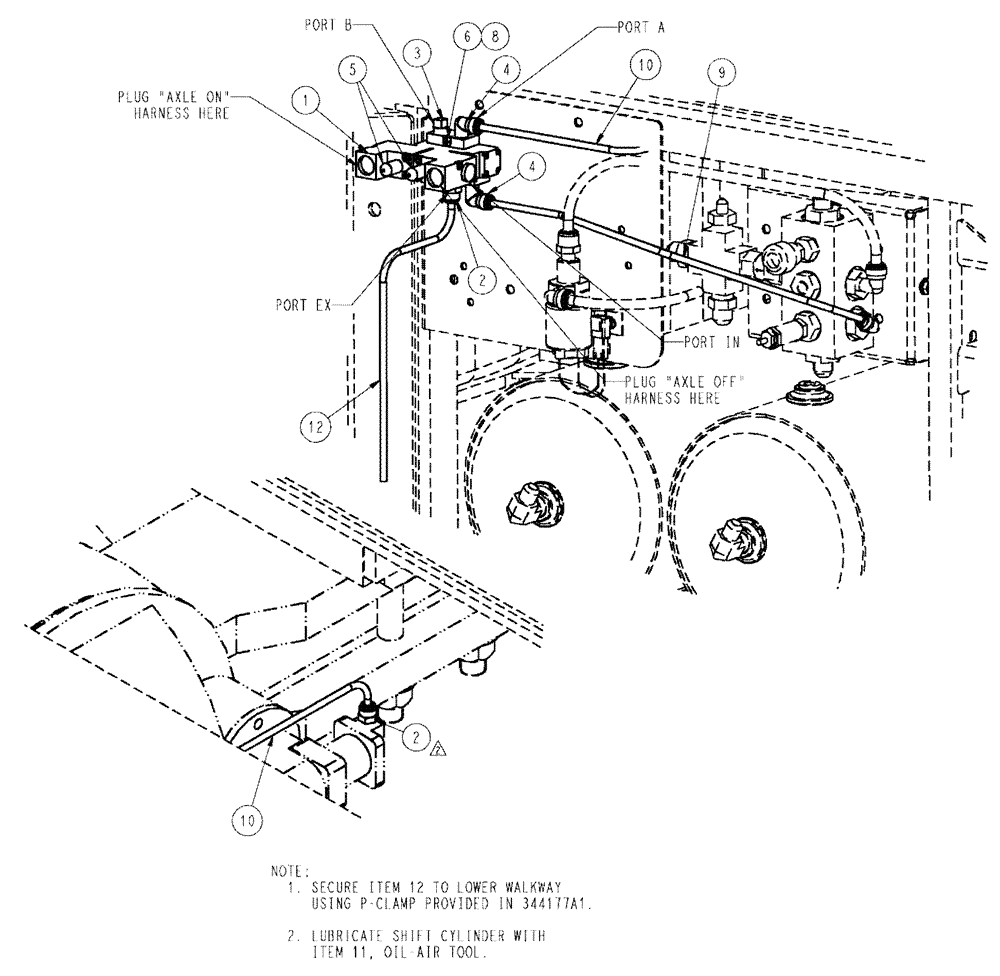

Запчасти Case IH TITAN 3520 (07-013) - TWO-SPEED PNEUMATIC GROUP Pneumatics

1

87271289

PNEUMATIC VALVE

Air, With Harness

1шт.

See Fig. 07-017

1шт.

2

BN2399401

ADAPTER

Male, 1/4" Tube

2шт.

3

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

4

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

5

BN23041

MUFFLER

Air Valve 1/8" NPT

2шт.

6

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

2шт.

8

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

9

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

1шт.

Cut 16.75" from bulk roll

1шт.

10

87268009

TUBE,0.25" DIA

GREEN, 1/4 X 235"

1шт.

12

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

Air, Synflex 1/4" Yellow, Bulk

1шт.

Cut 21" from bulk roll

1шт.
