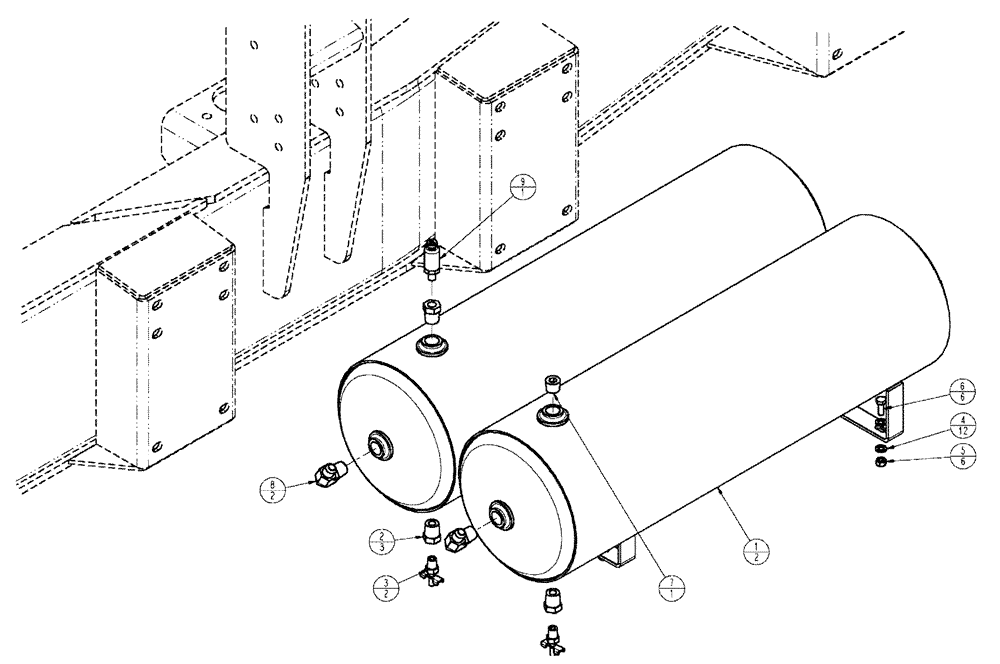

Запчасти Case IH TITAN 3520 (07-012) - PRIMARY/SECONDARY AIR TANK GROUP Pneumatics

1

86986852

TANK

240 MM AIR

2шт.

2

BN0281508

BUSHING

1/2 x 1/4 PTR-S

3шт.

3

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Valve, 1/4" Weatherhead

2шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

5

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

12шт.

6

9991588

NUT,M8 x 1.25, Cl 8

6шт.

7

444704

PLUG,Hex Soc, 1/2"-14

1шт.

8

76352

90 ELBOW,3/4" - 16 JIC x 1/2" - 14 NPTF

2шт.

9

87389824

SENSOR

PRESSURE, 1-130 P

1шт.
