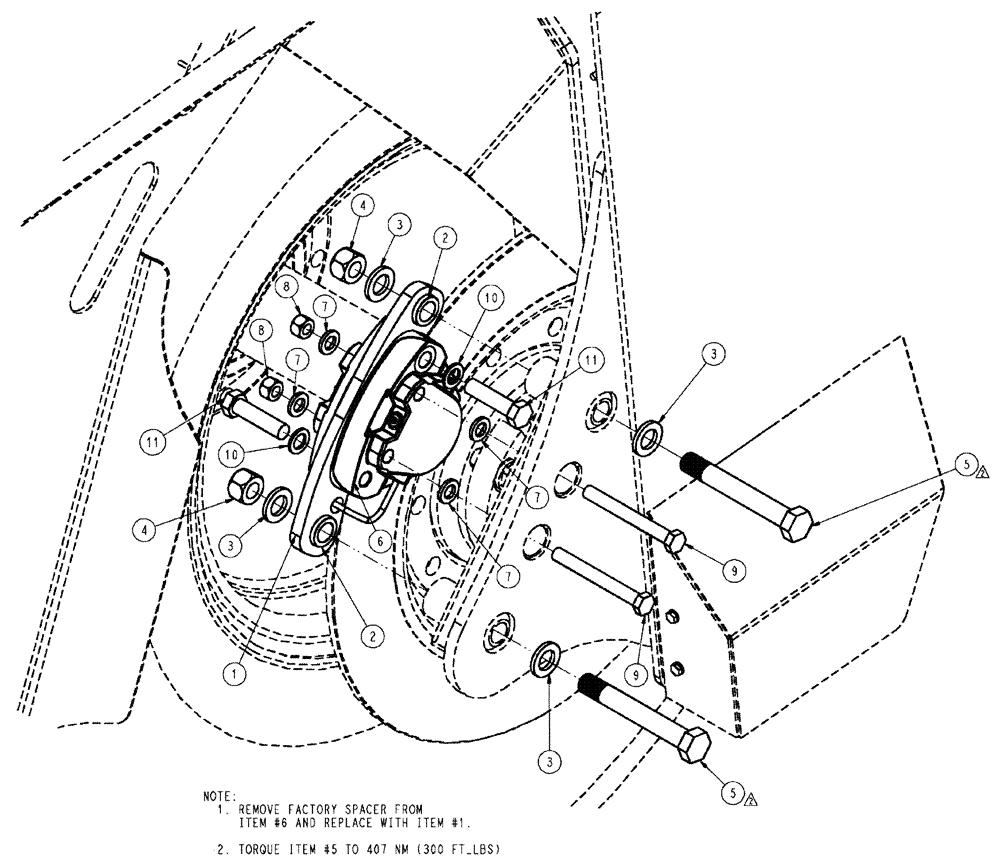

Запчасти Case IH TITAN 3520 (07-008) - BRAKE CALIPER ASSEMBLY Pneumatics

1

87268288

SPACER

BRAKE, MACH

1шт.

2

87268287

SPACER

BUSHING

2шт.

3

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

4шт.

4

832-41424

NUT

M24 x 3, Cl 10

2шт.

5

343378A1

BOLT

M24-3 X 175, HH, 10.9

2шт.

6

343996A1

CALIPER

brake, Mico, 02-520-250 (complete)

1шт.

343996A1R

REMAN-BRAKE ASSY.

Reman For Titan 3020, Titan 3520

1шт.

343996A1C

CORE-BRAKE ASSY.

Return Number

1шт.

6a

S107710

SCREW

bleeder plug

1шт.

Associated Part of Brake Calipers, P/N 343996A1

1шт.

6b

87271759

TUBE

Assembly

1шт.

Associated Part of Brake Calipers, P/N 343996A1

1шт.

6c

87271760

HYD CONNECTOR

2шт.

Associated Part of Brake Calipers, P/N 343996A1

1шт.

6d

87271758

BLEEDER

assembly

2шт.

Associated Part of Brake Calipers, P/N 343996A1

1шт.

6e

BN314703

KIT

brake repair

1шт.

Service Parts For Ref. 6

1шт.

6f

BN314704

KIT

brake lining

1шт.

Service Parts For Ref. 6

1шт.

7

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

8

86512555

NUT,M16 x 2, Cl 10

2шт.

9

827-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

2шт.

10

495-81039

WASHER,25/32" x 1 1/4" x .120"

2шт.

11

280128

BOLT,Hex, 3/4" - 10 x 3", Gr 8

2шт.
