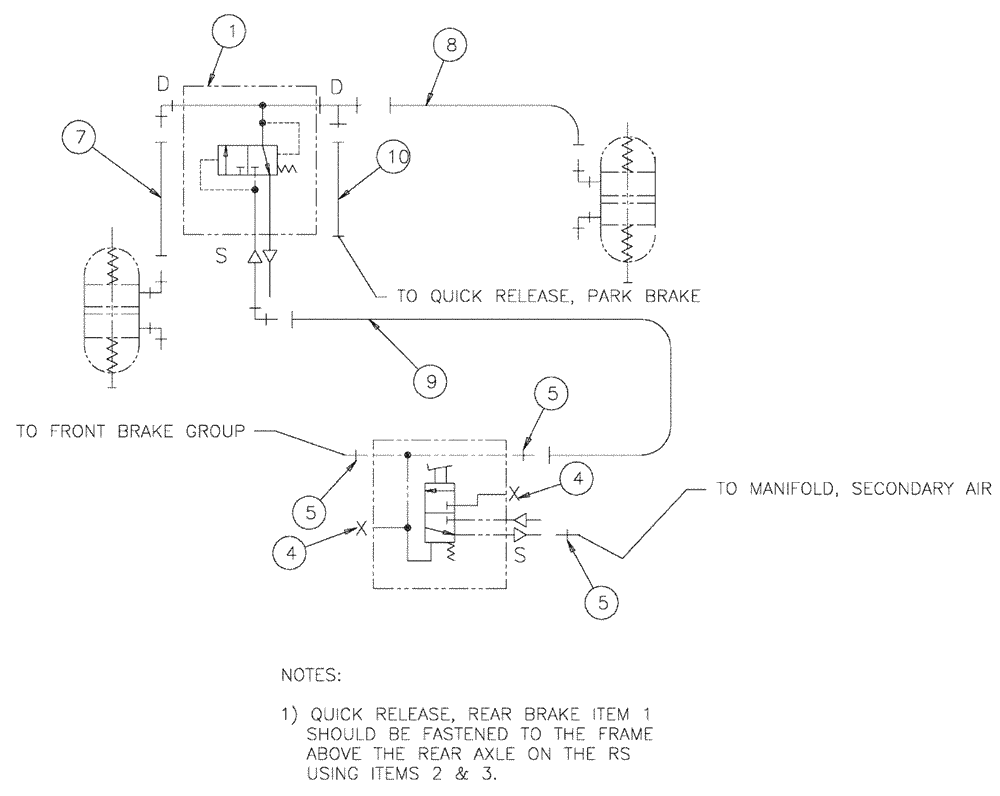

Запчасти Case IH TITAN 3520 (07-006) - SERVICE BRAKE GROUP Pneumatics

1

BN306850

MANIFOLD

QUICK RELEASE, REAR BRAKE, SEE FIG. 07-010

1шт.

2

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

3

86528579

NUT,M8 x 1.25

4шт.

4

BN1666161

PLUG

Allen Head 1/2

2шт.

5

BN2290182

FITTING

0103-8-8S

3шт.

7

342924A1

HOSE

6 x 21"

1шт.

8

342926A1

HOSE

6 x 35"

1шт.

9

342923A1

HOSE

8 x 225"

1шт.

10

342925A1

HOSE

6 x 28"

1шт.
