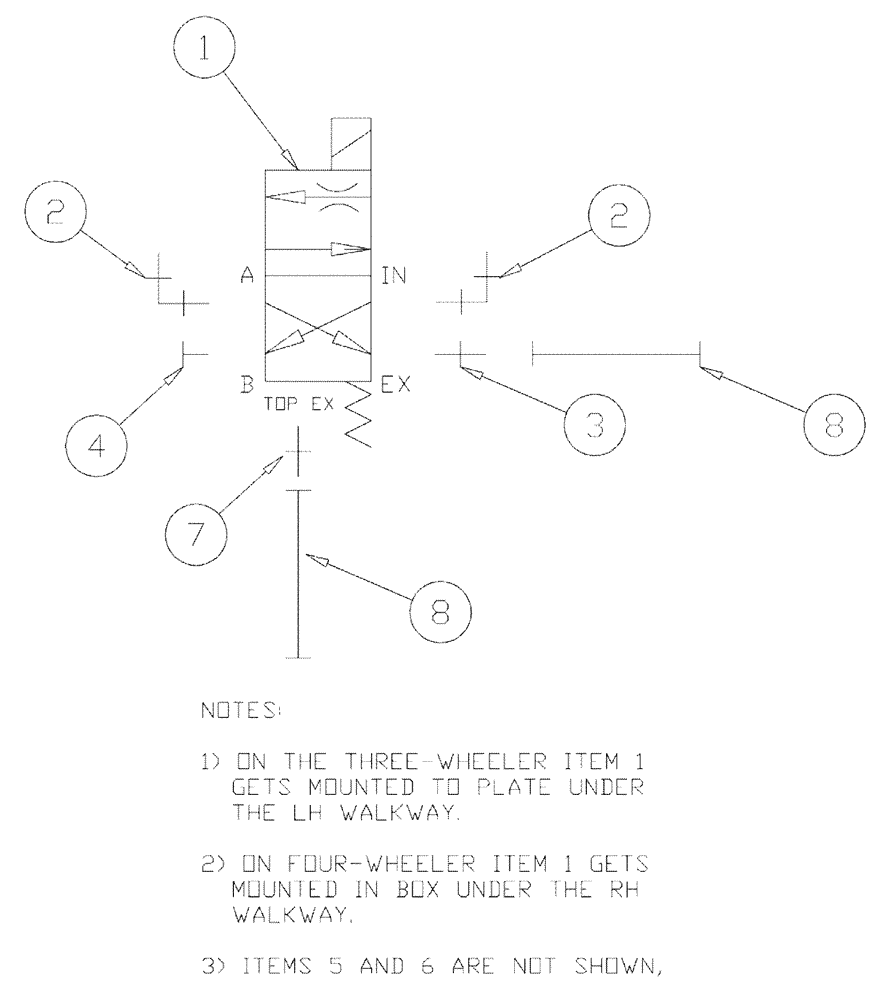

Запчасти Case IH TITAN 3520 (07-005) - VALVE, PARK BRAKE GROUP Pneumatics

1

BN301602

VALVE

Air, 12VDC, 2 Position

1шт.

1a

84269276

SEAL

Pressure, Pilot Valve (Not Pictured)

1шт.

2

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

2шт.

3

BN2399401

ADAPTER

Male, 1/4" Tube

1шт.

4

217-406

PLUG,Hex Hd, 1/4" - 18 NPT

1шт.

5

BN310264

SCREW,#10 - 24 x 1 1/4", SST

NUT, P/T, ALL MTL, M5 8 DOR

2шт.

6

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

7

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

8

87269627

TUBE,0.25" DIA x 7.25" L

2шт.
