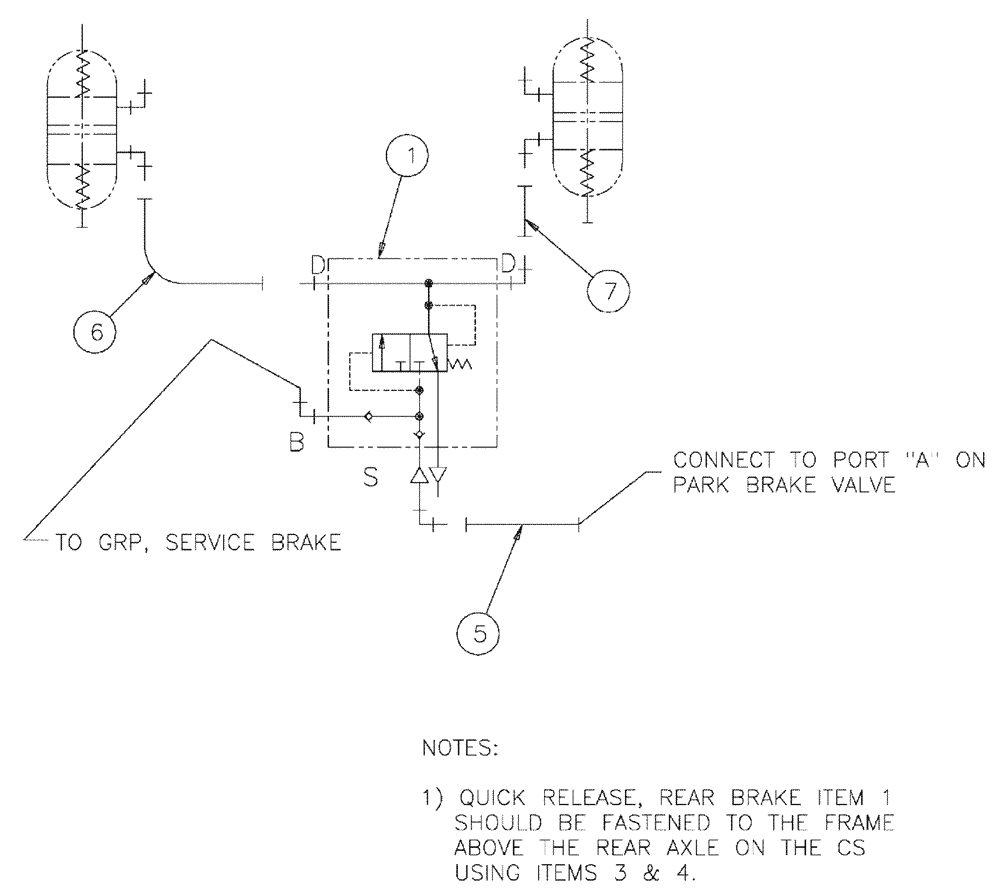

Запчасти Case IH TITAN 3520 (07-004) - BRAKE, PARKING GROUP Pneumatics

1

BN306847

MANIFOLD

QUICK RELEASE, PARK BRAKE, SEE FIG. 07-009

1шт.

3

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

4

9991588

NUT,M8 x 1.25, Cl 8

2шт.

5

87272314

HOSE

ASSY, 4 X 12

1шт.

6

342926A1

HOSE

6 x 35"

1шт.

7

342924A1

HOSE

6 x 21"

1шт.
