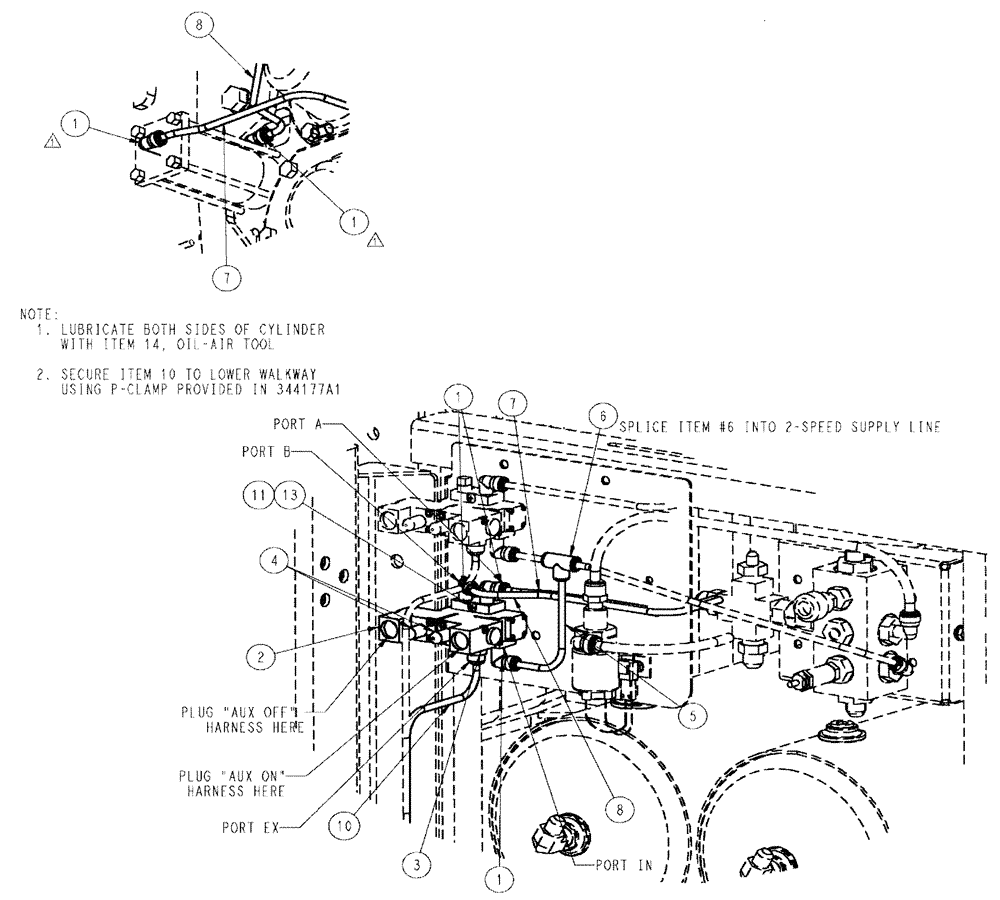

Запчасти Case IH TITAN 3520 (07-003) - AUX TRANSMISSION PNEUMATIC GROUP, TITAN 3020 & TITAN 3520 Pneumatics

1

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

5шт.

2

87271289

PNEUMATIC VALVE

Air, With Harness

1шт.

See Fig. 07-017

1шт.

3

BN2399401

ADAPTER

Male, 1/4" Tube

1шт.

4

BN23041

MUFFLER

Air Valve 1/8" NPT

2шт.

5

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

1шт.

Cut 7" from bulk roll

1шт.

6

BN2399408

UNION TEE

Tube UTC140

1шт.

7

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk

1шт.

Cut 160" from bulk roll

1шт.

8

BN2393054

TUBE,1/4" X 16' BULK, SAE J844, BLUE

Air, Synflex 1/4" Blue, Bulk

1шт.

Cut 160" from bulk roll

1шт.

10

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

Air, Synflex 1/4" Yellow, Bulk

2шт.

Cut 21" from bulk roll

1шт.

11

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

2шт.

12

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.
