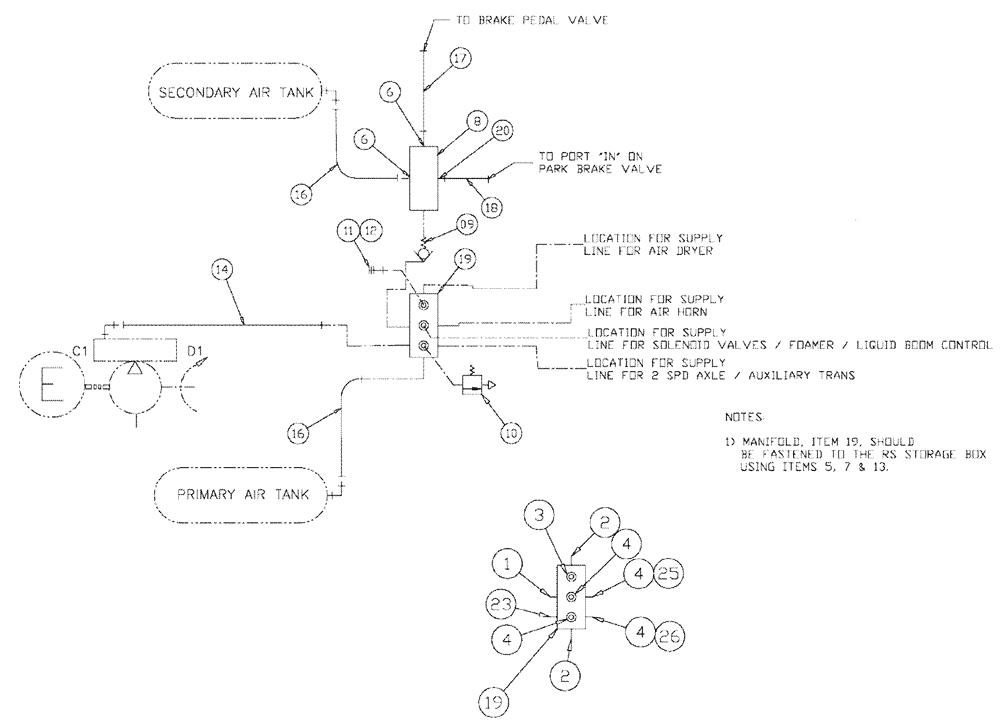

Запчасти Case IH TITAN 3520 (07-002) - AIR, MANIFOLD GROUP Pneumatics

1

BN302709

FITTING

8MB 8MP

1шт.

2

BN444003

FITTING

8MJ 12MB

2шт.

3

BN302360

FITTING

-4 NPT x -6 ORB

1шт.

4

BN323191

FITTING

ADT. 4 NPT X 8 ORB

4шт.

5

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

6

BN441006

ADAPTER

1/2 NPT-8 JIC

2шт.

7

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

7шт.

8

BN51647

TEE

1/2 NPTFS

1шт.

9

BN2295247

CHECK VALVE

Air #5003980

1шт.

10

BN2290667

HYDRAULIC VALVE

Safety 205105

1шт.

11

BN2393326

COUPLING

B32

1шт.

12

87267960

COVER

dust, air chuck

1шт.

13

87266133

BRACKET, SUPPORTING

MOUNT, AIR MANIFOLD

1шт.

14

87266955

HOSE

4 x 60"

1шт.

16

87266954

HOSE

8 x 17"

2шт.

17

87267667

HOSE

8 x 70"

1шт.

18

87272314

HOSE

ASSY, 4 X 220

1шт.

19

BN326042

BODY

ALUMINUM

1шт.

20

BN21385

ADAPTER

FT, STR, NPT, 37º, FL

1шт.

23

BN21249

ADAPTER,3/4" - 16 ORFS x 7/16" - 20 JIC

1шт.

25

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

26

BN2399401

ADAPTER

Male, 1/4" Tube

1шт.
