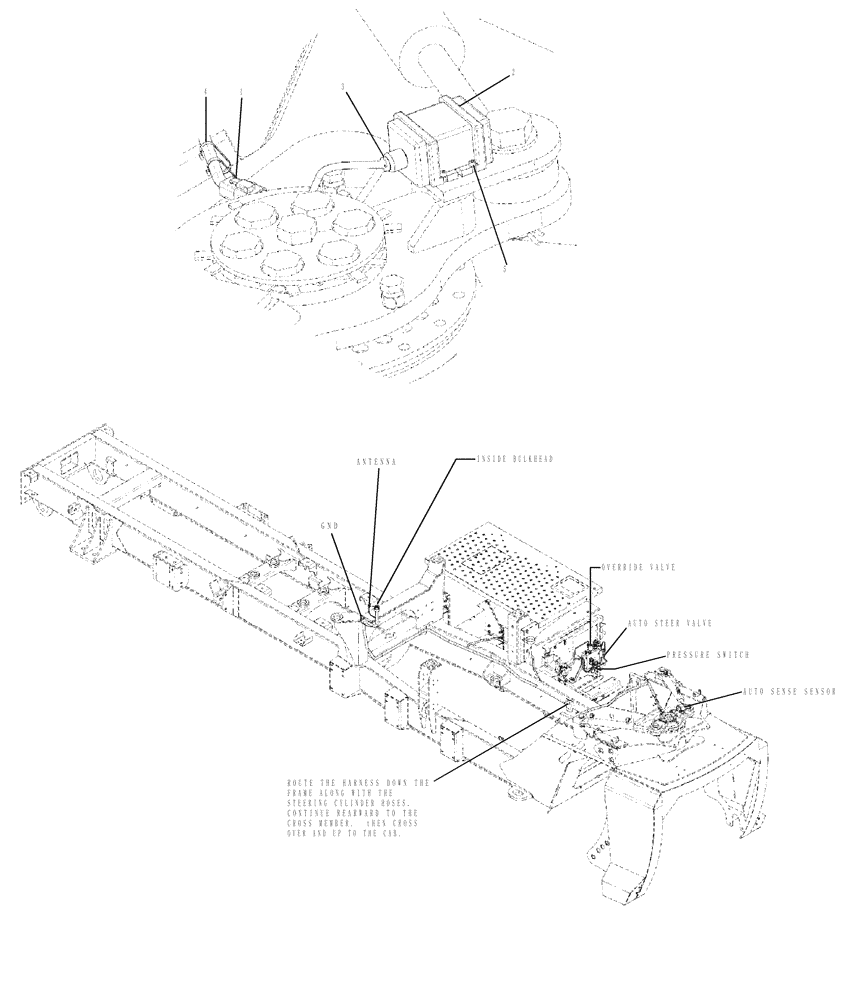

Запчасти Case IH TITAN 3520 (10-021) - ACCUGUIDE ELECTRIC PACKAGE, FRAME Options
inside bulkhead
5
cross member. then cross
over and up to the cab.
antenna
pressure switch
3
auto sense sensor
4
auto steer valve
route the harness down the
continue rearward to the
override valve
gnd
1
steering cylinder hoses.
2
frame along with the
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
84212625
HARNESS
Auto Guidance 3 Wheel
1шт.
2
87743199
MODULE
Autoguide Steering Sensor
1шт.
3
87743200
HARNESS
Jumper, 24" Autosense
1шт.
4
22-824
CABLE TIE,3/16" x 7 1/4"
CABLE STRAP
4шт.
5
767388
HEX SOC SCREW,#6 - 32 x 1/2"
4шт.
Выбрано товаров: 5
