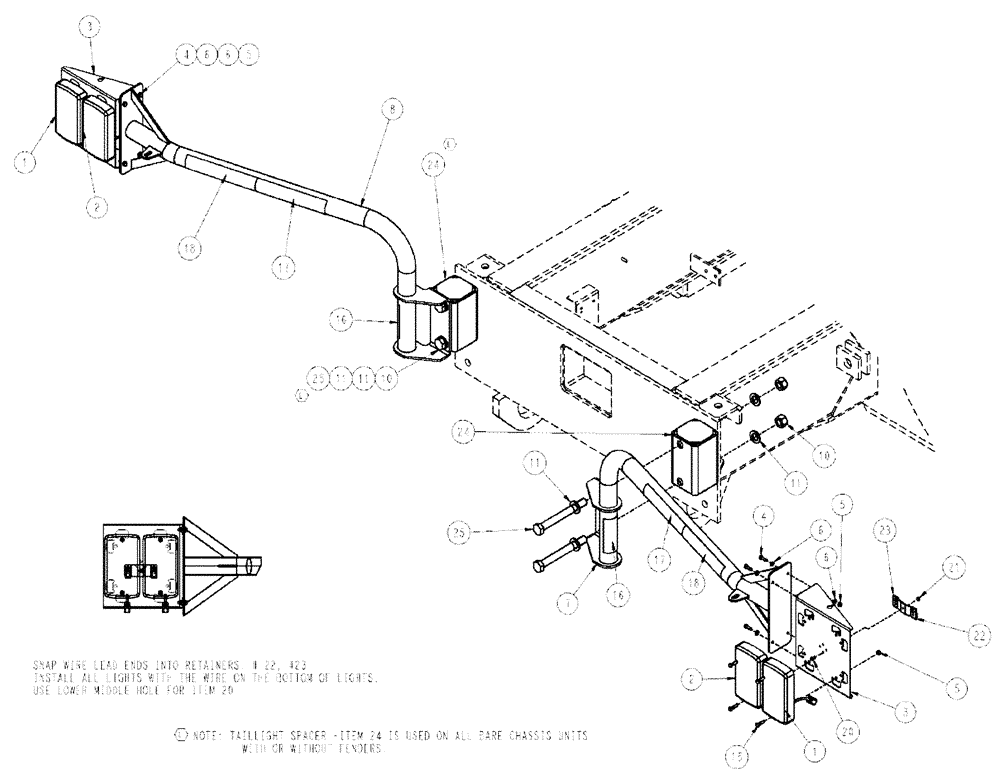

Запчасти Case IH TITAN 3520 (10-012) - TAIL LIGHT ASSEMBLY (BARE CHASSIS ONLY) Options

1

BN325078

LIGHT

Turn, Led Amber, 12V, 36 LED Pattern, BSN YBT029439

2шт.

2

BN325077

LAMP, TAIL

LIGHT, TAIL Led Red, 12V, 36 LED Pattern, BSN YBT029439

2шт.

3

87267089

MOUNTING PLATE

Tail Light, (LED)

2шт.

4

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

5

353308

NUT,M6 x 1.0, Cl 8

16шт.

6

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

16шт.

7

BN322544

ARM

CS

1шт.

8

BN322545

ARM

Weldment, Tail light, RS

1шт.

10

87024336

NUT,M20 x 2.5, Cl 10

4шт.

11

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

8шт.

15

311863A1

REFLECTOR

Retroreflective Red

8шт.

16

311863A1

REFLECTOR

Retroreflective Red

2шт.

17

311865A1

REFLECTOR

fluorescent orange

2шт.

18

311863A1

REFLECTOR

Retroreflective Red

2шт.

20

BN52348

BOLT,Phil Pan Hd, #10 - 32 x 1/2", Stainless

10-32 X 1/2 SS OH, PHILLIP

2шт.

21

BN50050

NUT

10-32 HEX

2шт.

22

87267087

RETAINER

Assembly, Deutsch LH

2шт.

23

87267088

RETAINER

Assembly, Deutsch RH

2шт.

24

87269749

TUBE

Spacer

2шт.

25

87310605

BOLT,M20 x 180, 10.9, DOR

4шт.
