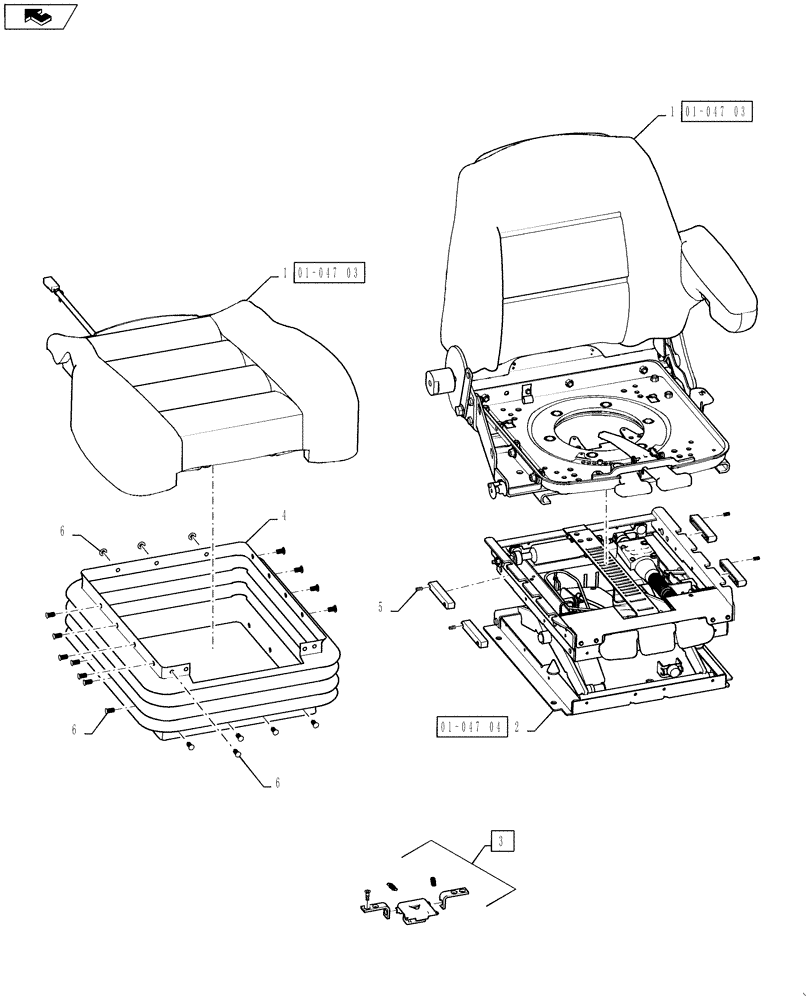

Запчасти Case IH TITAN 3520 (01-047[02]) - DELUXE SEAT ASSEMBLY, CLOTH, SN YBT031127 AND AFTER (10) - CAB

84426012

DRIVER SEAT

Complete Deluxe Assembly, No Heat, Case IH

1шт.

1

84162220

SEAT

Assembly, Top

1шт.

See Fig 01-047(03)

1шт.

2

84426027

SUSPENSION

Complete Air Suspension

1шт.

See Fig 01-047(04)

1шт.

3

87347934

LATCH

Slide, Kit

1шт.

4

84482042

KIT

Seat Boot, Includes Ref 6

1шт.

5

302016A1

PACKAGE,SERVICE

Slide Puck Kit

4шт.

6

84482043

KIT

Boot Button Kit

1шт.
