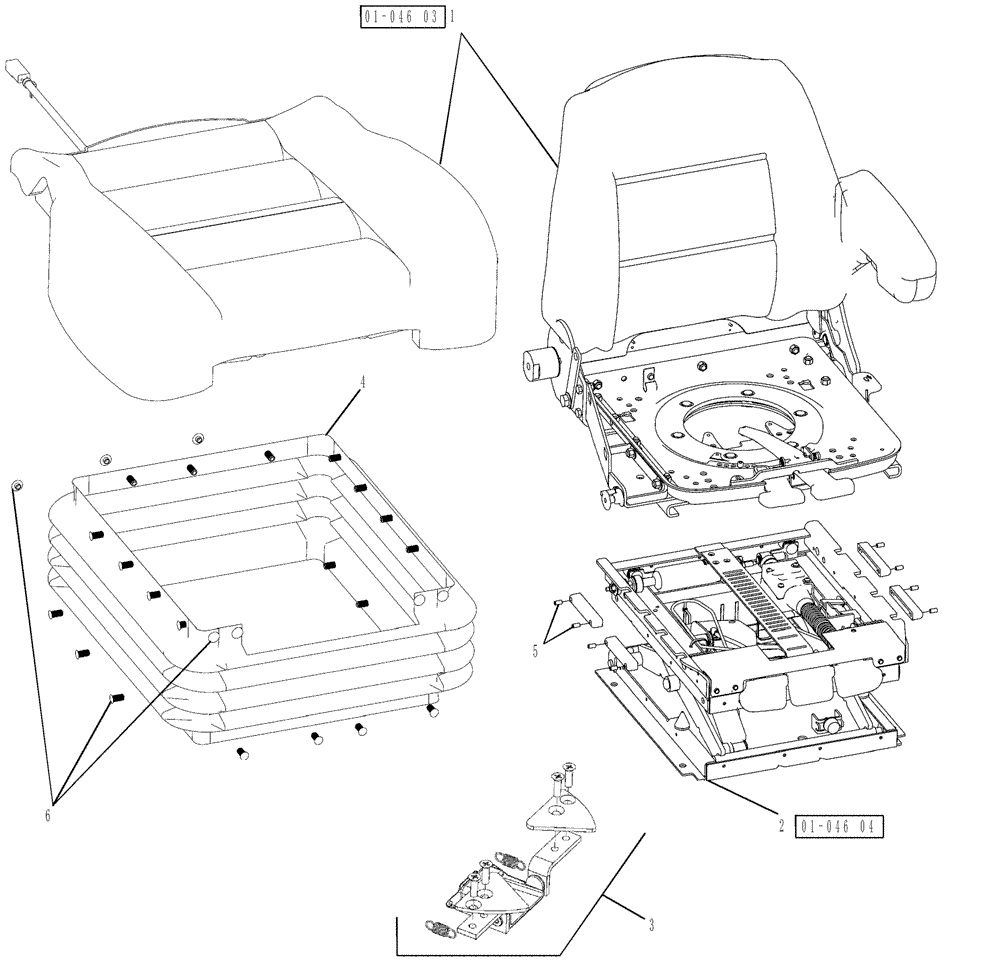

Запчасти Case IH TITAN 3520 (01-046[02]) - DELUXE SEAT ASSEMBLY, FROM SN Y9T026002 UNTIL YBT031127 (10) - CAB

84138931

DRIVER SEAT

Complete, Deluxe, Cloth Seat With Air Suspension

1шт.

1

84162220

SEAT

Assembly, Top

1шт.

See Fig 01-046(03) For Service Parts Breakdown

1шт.

2

84155868

SERVICE KIT

Suspension, AIR 2000

1шт.

See Fig 01-046(04) For Service Parts Breakdown

1шт.

3

87347934

LATCH

Slide, Kit

1шт.

4

87347943

SERVICE KIT

Seat Boot

1шт.

5

302016A1

PACKAGE,SERVICE

Slide Puck Kit

4шт.

6

333659A1

PACKAGE,SERVICE

Boot Button Kit

1шт.
