Запчасти Case IH TITAN 3520 (01-043) - SEAT, INSTRUCTIONAL, CLOTH, BEGINNING 1/2009 (10) - CAB

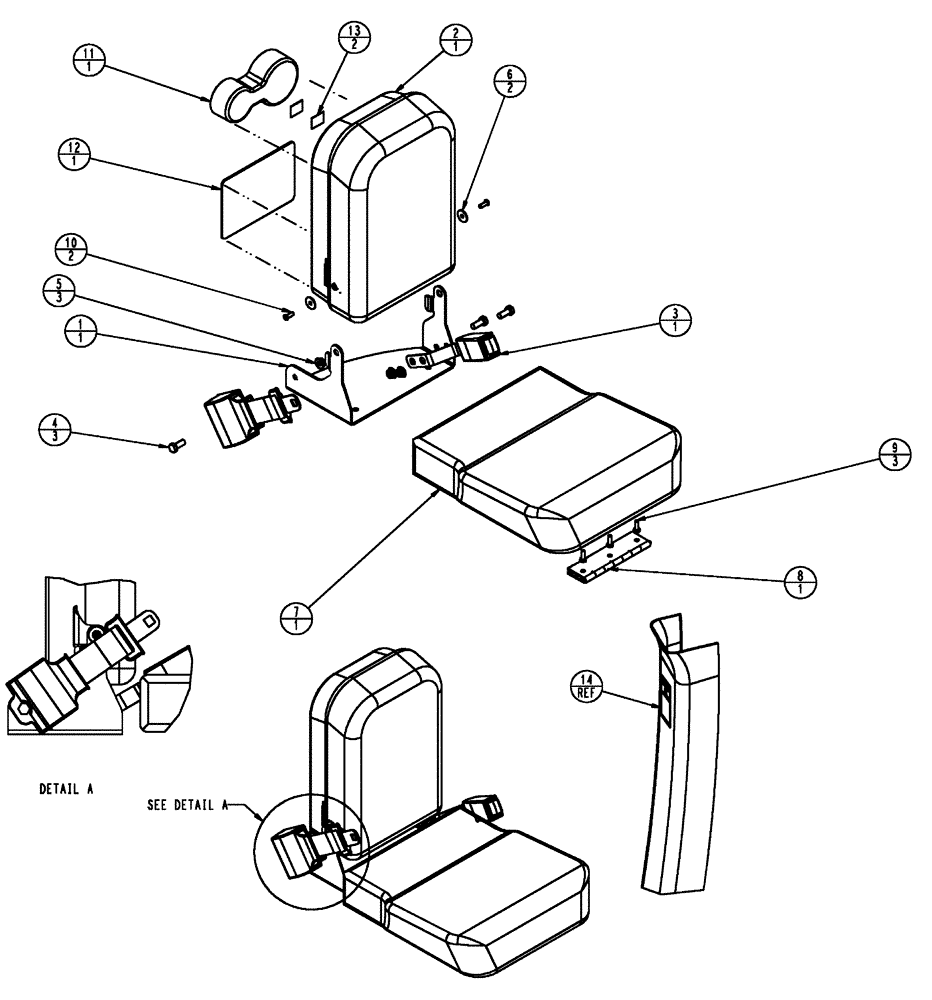

Схема запчастей Case IH TITAN 3520 - (01-043) - SEAT, INSTRUCTIONAL, CLOTH, BEGINNING 1/2009 (10) - CAB
13
11
9
14
4
1
8
12
5
2
10
7
6
3

Артикул

Название

Примечание

Количество

1

249707A2

BRACKET

instructional seat

1шт.

2

87484465

SEAT CUSHION

REAR CUSHION ASSY, Includes Ref. 2A - 2D

1шт.

2a

87484466

SEAT CUSHION

Back

1шт.

2b

252928A2

BRACKET

Rear Cushion

1шт.

2c

358330A1

TRAY

Instructional Seat Storage

1шт.

2d

340-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

3шт.

3

281926A2

SAFETY BELT

Instructional Seat

1шт.

4

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

3шт.

5

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

6

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

8

365674A1

HINGE

instructional seat

1шт.

9

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

3шт.

10

906051R1

HEX SOC SCREW,Btn Hd, M6 x 10mm, Cl 12.9

2шт.

7

87484467

SEAT CUSHION

INSTRUCTIONAL SEAT

1шт.

11

369635A2

HOLDER

insert, cup

1шт.

12

394828A1

INSERT

insert, instructional seat

1шт.

13

406682A1

FASTENER

dual lock

2шт.

14

410704A1

WARNING DECAL

Instructional Seat

1шт.

Выбрано товаров: 18
