Запчасти Case IH TITAN 3520 (01-040[03]) - SUSPENSION ASSEMBLY, SEAT, ENDING 01/2009 (10) - CAB

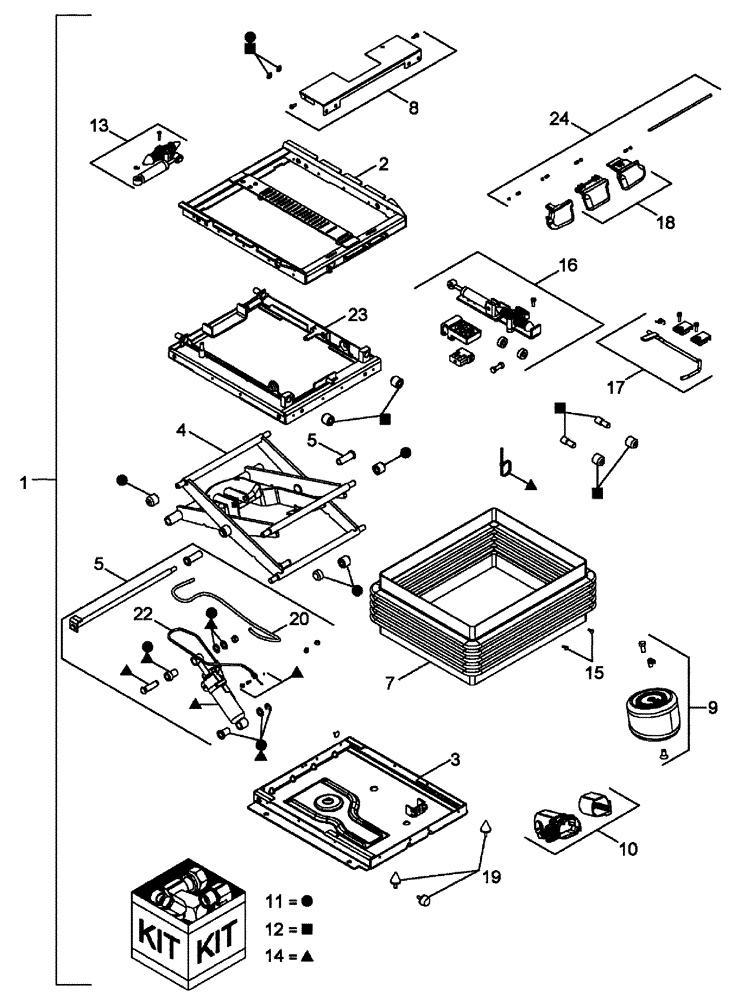

Схема запчастей Case IH TITAN 3520 - (01-040[03]) - SUSPENSION ASSEMBLY, SEAT, ENDING 01/2009 (10) - CAB
20
3
10
17
13
24
23
9
5
8
19
12
11
22
15
14
2
7
18
4
1
5
16

Артикул

Название

Примечание

Количество

1

87395380

SUSPENSION

Without Positive Reponse

1шт.

Includes Refs. 2 - 24

1шт.

2

87395392

HOUSING

UPPER

1шт.

3

333275A1

HOUSING

Lower

1шт.

4

333276A1

ARM

Suspension

1шт.

5

302033A1

SHAFT

Bearing

1шт.

6

87347944

SERVICE KIT

Harness, Seat And Suspension

1шт.

Not Shown

1шт.

7

87347943

SERVICE KIT

Suspension Boot

1шт.

8

302029A2

PLATE

Cover

1шт.

9

333279A2

KIT

Air Spring

1шт.

10

87347951

SERVICE KIT

Air Compressor

1шт.

11

87347945

BEARING ASSY

Suspension Bearing And Rollers

1шт.

12

87347946

SERVICE KIT

Isolator Rollers

1шт.

13

87395394

SERVICE KIT

lateral shock absorber

1шт.

14

447956A1

KIT

Kit, Adjustable Shock Absorber Control

1шт.

15

333659A1

PACKAGE,SERVICE

Kit, Boot Button

1шт.

16

87395395

KIT

Fore And Aft Shock Absorber

1шт.

17

373470A2

KIT

kit, fore and aft isolator control

1шт.

17

373470A2

KIT

kit, fore and aft isolator control

1шт.

18

373473A1

PACKAGE,SERVICE

kit, lateral isolator control

1шт.

19

333295A1

BUMPER

Kit, Suspension Bumper

1шт.

20

87396231

SERVICE KIT

Airline and Fitting

1шт.

21

333296A1

SERVICE KIT

Kit, Fore and Aft Isolator Shock Block

1шт.

Not Shown

1шт.

22

87347955

CABLE

Suspension Shock

1шт.

23

87395393

HOUSING

1шт.

24

373469A1

PACKAGE,SERVICE

kit, suspension knob

1шт.

Выбрано товаров: 28
