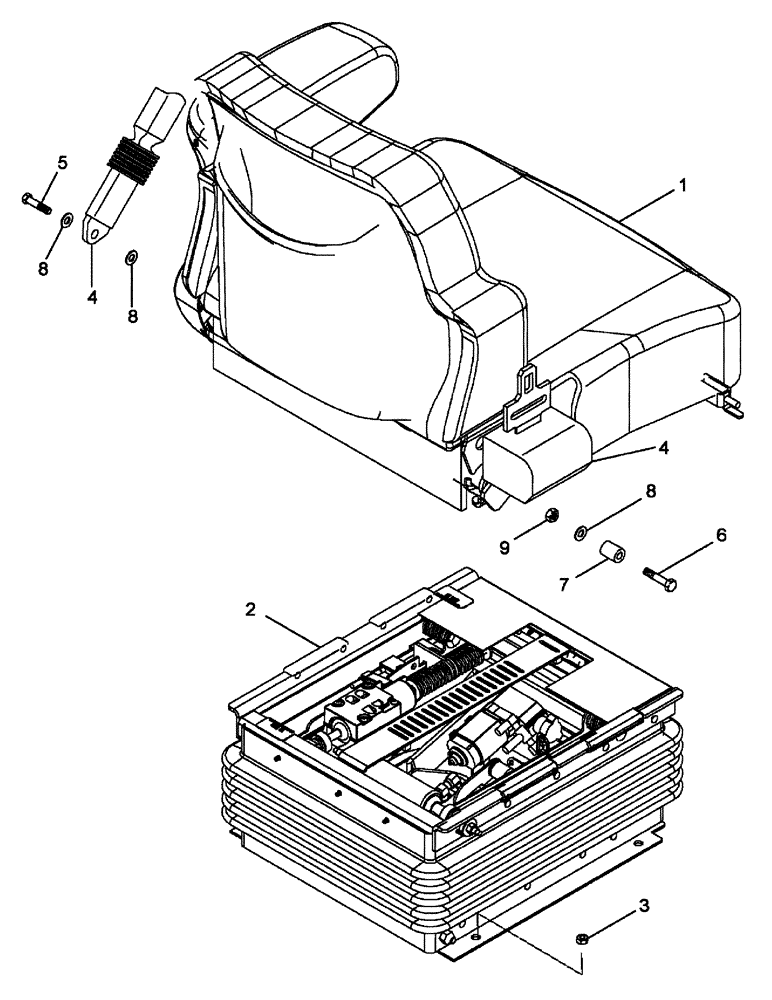

Запчасти Case IH TITAN 3520 (01-040[01]) - SEAT ASSEMBLY, CLOTH, ENDING 01/2009 (10) - CAB

1

87347872

SEAT ASSY.

Cloth, Without Heat

1шт.

See Fig 01-040(02)

1шт.

2

87395380

SUSPENSION

Without Positive Reponse

1шт.

See Fig 01-040(03)

1шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

4

444877A1

SAFETY BELT ,50.8mm W x 1737.86mm L

1шт.

5

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

1шт.

6

806-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9

1шт.

7

87313413

TUBE SPACER

.875 x .5

1шт.

8

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

3шт.

9

829-1312

NUT,M12 x 1.75, Cl 10

1шт.
