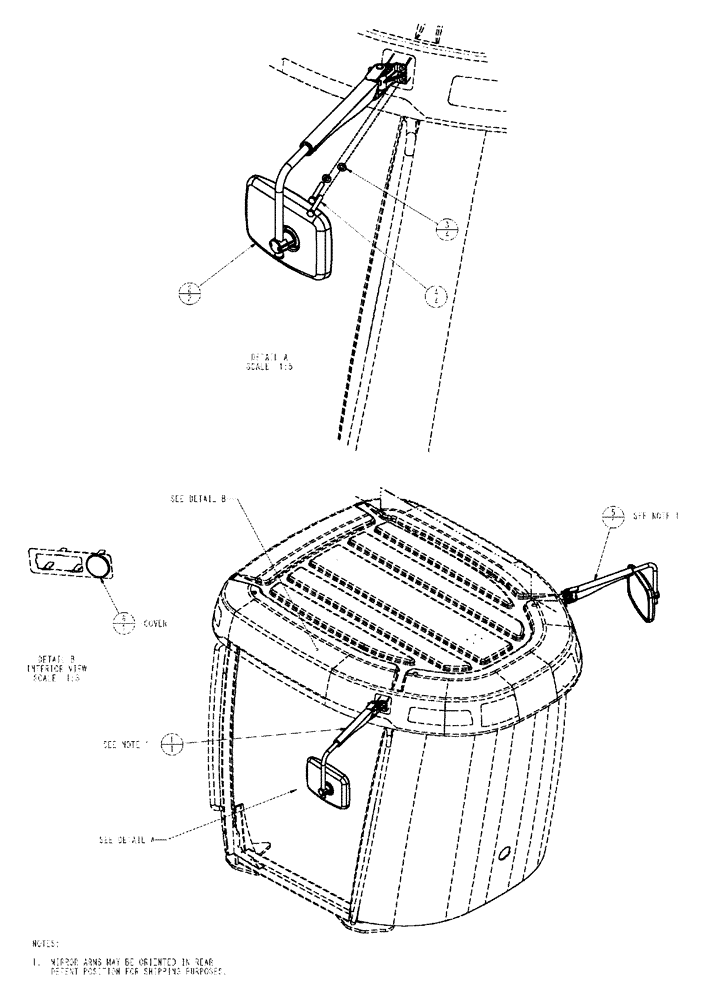

Запчасти Case IH TITAN 3520 (01-038) - MIRROR ASSEMBLY, MANUAL (10) - CAB

1

87594291

ARM

MIRROR, RH MANUAL

1шт.

1a

87268229

ARM

MIRROR, RH MANUAL

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

87350494

MIRROR ASSY.,240mm x 329mm

Manual Head

1шт.

2a

313140A1

ARM

MIRROR, LH MANUAL

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

3

896-19012

WASHER,M12 x 24.5 x 3, HT

4шт.

4

514-865

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

5

87703118

ARM

Mirror, LH, Manual

2шт.

5a

365414A1

MIRROR

head, manual, 1800 mm

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

6

280628A1

PLUG

no power mirror

1шт.
