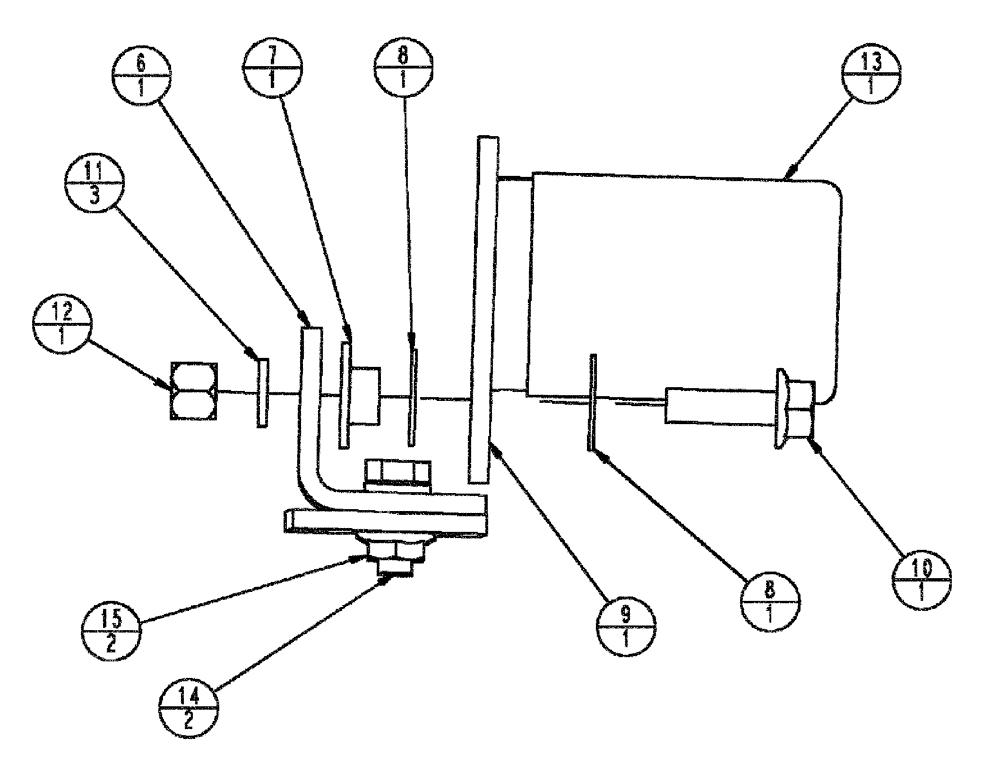

Запчасти Case IH TITAN 3520 (01-026) - LATCH, RH DOOR (10) - CAB

6

87420877

BRACKET

LATCH MOUNTING

1шт.

7

87422906

BUSHING,6.5mm ID x 19mm OD x 6.9mm L

M6

1шт.

8

87423414

WASHER

NYLON

2шт.

9

87418389

LATCH ASSY.

RH Door

1шт.

10

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

11

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

12

832-10406

NUT,M6 x 1, Cl 8

1шт.

13

87423716

CAP

VINYL

1шт.

14

86639037

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

2шт.

15

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.
